CS 1110: Introduction to Computing Using Python

Fall 2012

Assignment 7:

Due to CMS by Monday, December 3rd at 11:59 pm

This assignment, including some of the wording of this document, is adapted from an assignment by Professor Eric Roberts at Stanford University. Your task is to write the classic arcade game Breakout.

If you have never played Breakout before, there are lots of versions online, particularly as flash games. The old school versions give you an example of the basic gameplay, though they are considered boring by modern standards. Most of the modern versions of Breakout were inspired by the Arkanoid series and have power-ups, lasers, and all sorts of weird features. The flash game Star Ball is an example of a fairly elaborate Breakout variant.

One of the main challenges with this assignment is that the scope of it is completely up to you. There is a bare minimum of functionality that you must implement; you must have all the features of an old-school Breakout game. But after that point, you are free (and encouraged) to add more interesting features to your game. The video to the right shows our solution, which has several extra features such as sound and a countdown timer. You should not feel compelled to add these features to your game. You are permitted to do anything that you want, provided that the basic functionality is there.

This assignment is easily within your grasp. You just have to start early, break the problem up into manageable pieces, and program/test incrementally. Below, we discuss stages of implementation and give suggestions for staying on top of the project. If you follow our advice and test each piece thoroughly before proceeding to the next, you should be successful. Our solution in the video above is ~500 lines long and has 11 helper methods beyond those in the original code skeleton.

Learning Objectives

This final assignment has several important objectives.

  • It gives you practice with reading official class documentation and APIs.
  • It gives you experience using stateful controllers to handle a complex, interactive application.
  • It gives you experience with using callback functions to delay execution.
  • It gives you experience with programming animation and simple physics.
  • It gives you experience with an open-ended project that is not fully-specified.

Table of Contents

Before You Get Started

Academic Integrity

This assignment is similar to one given in previous offerings of CS1110. It is a violation of the Code of Academic Integrity for you to be in possession of or to look at code (in any format) for this assignment of anyone in this class. This includes older versions of this assignment from back when this course was taught using Java (even though the solution is different, the ideas are similar).

You should also not show another student your program (this includes publicly posting your code on Piazza). Please do not violate the Code; penalties for this will be severe. We will try hard to give you all the help you need for this assignment.

Because of the complexity of this assignment, this is the assignment in which students are most likely to violate the academic integrity policy. However, because the code for this assignment is so unique, it is also the easiest assignment for us to catch violators. Every year, we catch and prosecute academic integrity violations for this very assignment. Please do not add yourself to this ignoble list.

Collaboration Policy

You may do this assignment with one other person. If you are going to work together, then form your group on CMS as soon as possible. If you do this assignment with another person, you must work together. It is against the rules for one person to do some programming on this assignment without the other person sitting nearby and helping.

With the exception of your CMS-registered partner, you may not look at anyone else's code or show your code to anyone else, in any form what-so-ever.

Assignment Source Code

The first thing to do in this assignment is to download the zip file A7.zip from this link. You should unzip it and put the contents in a new directory. This zip file contains the following:

This file contains the controller class (Breakout) for this application. This is the primary file that you will modify for this assignment. However, note that it has no application code.
This module contains the application code for this assignment. It is the module you run from the command line. You will also modify this file for the assignment.
This is a module with the graphics object classes that you will use for drawing in the game window. You should not modify this file. See the online documentation for how to use these classes.
This is the Kivy file associated with graphics.py. While you should have some understanding now of how these files work, do not modify this file.
This folder is a list of sound effects that you may wish to use as part of your extensions. You are also free to add more if you wish; just put them in this folder. All sounds must be WAV or OGG files, recorded at 16 bits and sampled at 44.1 kHz (e.g. CD quality).
This folder is a collection of True Type Fonts, should you get tired of the default Kivy font. You can put whatever font you want in this folder, provided it is a .ttf file. Other Font formats (such as .ttc, .otf, or .dfont) are not supported.
This folder is a collection of images that you may wish to use as part of your extensions. The class GImage allows you to animate images in this game, should you wish. You can also use them to provide a background (if you add the image first).

To run the application, put all of this in a folder, and give the folder a name like breakout. Because of the module __main__.py, to run this program you should change the directory in your command shell to just outside of the folder breakout and type

python breakout
In this case, Python will "run the folder" by executing the application code in __main__.py.

You will only modify the first two modules listed above. The class Breakout is a subclass of the class GameController. As part of this assignment, you are expected to read the online documentation which describes how to use the basic classes.

Assignment Scope

As you can see from the online documentation, the class Breakout needs to implement five main methods. They are as follows:

Method Description
initialize() Initializes the game state. Because of how Kivy works, initialization code should go here and not in the constructor (which is called before the window is sized properly).
update(dt) Update the graphics objects for the next animation frame. Called 60x a second; dt is time since last call.
on_touch_down(view,touch) Called when the user presses the mouse/screen, but has not yet released. The parameter touch holds information about the touch event.
on_touch_up(view,touch) Called when the user releases the mouse/finger on the screen. The parameter touch holds information about the touch event.
on_touch_move(view,touch) Called when the user moves the mouse/finger on the screen. The parameter touch holds information about the touch event.

Obviously, you are not going to put all of your code in those five methods; the result would be an unreadable mess. An important part of this assignment is developing new methods whenever you need them, in order to keep each method small and manageable. Your grade will depend partly on the design of your program. As one guideline, points will be deducted for methods that are more than 50 lines long (including the specification).

You may also need to create new classes (see the example for the ball object), or add new fields/attributes to existing classes. When you add a new field, you must state the invariant for the field as a constant. Most of these fields will not be accessed outside of the controller module and so you do not need to provide properties (and hence you do not need to enforce the invariants). But you must state the invariants just the same.

As an example, you will notice that we have already provided you with several example fields in Breakout. For each one we have provided comments that specify the invariants. We do not expect you to create properties that enforce the invariants. Instead, as part of each of the five methods, we expect you to ensure that the invariants are true before and after each method call, just as with a loop invariant.

If you show your code to an instructor, TA, or consultant and they see a method that is not specified or a field without an invariant, they will ask you to go away, fix it, and come back at another time.

Pacing Yourself

You should start as soon as possible. If you wait until the day before this assignment is due, you will have a hard time completing it. If you do one part of it every 2-3 days, you will enjoy it and get it done on time. The hard part may be "finishing up": designing the final reorganization in order to incorporate three balls in a game. We have budgeted you one day for this, but you have up to three days if you decide just to do the bare minimum and not add any extensions.

Implement the program in stages, as described in this handout. Do not try to get everything working all at once. Make sure that each stage is working before moving on to the next stage.

Set up a schedule. We have suggested some milestones, but make up your own schedule. Leave time for learning things and asking questions. Above all, do not try to extend the program until you get the basic functionality working. If you add extensions too early, debugging may get very difficult.

Getting Help

We have tried to give you as much guidance in this document as we can. However, if you are still lost, please see someone immediately. Like the last assignment, this is a fairly involved project, and you should get started early. To get help, you may talk to the course instructor, a TA, or a consultant. See the staff page for more information.

In addition, you should always check Piazza for student questions as the assignment progresses. We may also periodically post announcements regarding this assignment on Piazza and the course website.

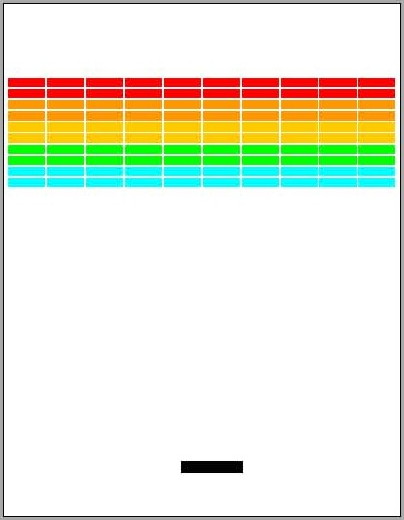

The initial configuration of the game Breakout is shown in the left-most picture below. The colored rectangles in the top part of the screen are bricks, and the slightly larger rectangle at the bottom is the paddle. The paddle is in a fixed position in the vertical dimension; it moves back and forth horizontally across the screen along with the mouse (or finger, on a touch-screen device) — unless the mouse goes past the edge of the window.

Starting Position
Hitting a Brick

A complete game consists of three turns. On each turn, a ball is launched from the center of the window toward the bottom of the screen at a random angle. The ball bounces off the paddle and the walls of the world, in accordance with the physical principle generally expressed as "the angle of incidence equals the angle of reflection" (it is easy to implement). The start of a possible trajectory, bouncing off the paddle and then off the right wall, is shown to the right. The dotted line is there only to show the ball's path and will not actually appear on the screen.

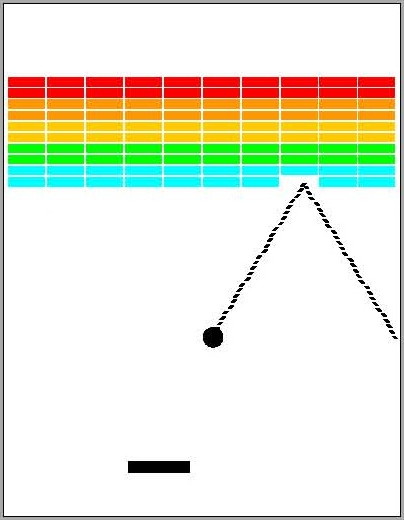

In the second diagram above, the ball is about to collide with a brick on the bottom row. When that happens, the ball bounces just as it does on any other collision, but the brick disappears. The left-most diagram below shows the game after that collision and after the player has moved the paddle to put it in line with the oncoming ball.

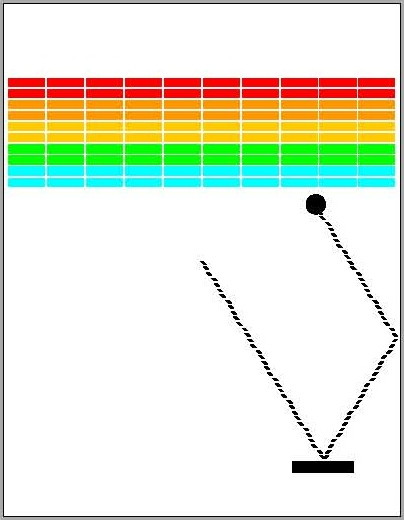

Intercepting the Ball
Breaking Out

The play on a turn continues in this way until one of two conditions occurs:

  1. The ball hits the lower wall, which means that the player missed it with the paddle. In this case, the turn ends. If the player has a turn left, the next ball is served; otherwise, the game ends in a loss.

  2. The last brick is eliminated. In this case the player wins, and the game ends.

Clearing all the bricks in a particular column opens a path to the top wall. When this delightful situation occurs, the ball may bounce back and forth several times between the top wall and the upper line of bricks without the user having to worry about hitting the ball with the paddle. This condition, a reward for "breaking out", gives meaning to the name of the game. The last diagram above shows the situation shortly after the first ball has broken through the wall. The ball goes on to clear several more bricks before it comes back down the open channel.

Breaking out is an exciting part of the game, but you do not have to do anything in your program to make it happen. The game is operating by the same rules it always applies: bouncing off walls, clearing bricks, and obeying the "laws of physics".

Game State

One of the challenges with making an application like this is keeping track of the game state. In the description above, we can identity four distinct phases of Breakout.

  • Before the game starts, when the bricks are not yet set up
  • After the game is over, when the player has won or lost
  • While the game is ongoing, and the ball is in play
  • While the game is ongoing, but the player is waiting for a new ball.

Keeping these phases straight are an important part of implementing the game. You need this information to implement on_touch_down correctly. For example, if the game is ongoing, and the ball is in play, the method on_touch_down is used to move the paddle. However, if the game has not started yet, the method on_touch_down should set up the bricks and start a new game.

For your convenience, we have provided you with constants for four states.

  • STATE_INACTIVE, before the game has started
  • STATE_ACTIVE, when the game is ongoing and ball is in play
  • STATE_PAUSED, when the player is waiting for a new ball
  • STATE_COMPLETE, when the game is over (won or lost)

The current state of the application is stored in the field _state. You are free to add more states when you work on your game extensions. However, your basic game should stick to these four states.

The Basic Game

We have divided these instructions into two parts. The first part covers the basic things that you must implement just to get the game running. Once you do that, the assignment gets more interesting. You should try to finish everything in this part of the assignment by Saturday, December 1 (after the last week of class). If you do that, you will be in good shape to add extensions (though you will not lose any points if you do not have extensions; they are a form of extra credit).

Create a Welcome Screen

We start with a simple warm up to get used to adding and removing graphics elements. When the user starts up the application, they should be greeted by a welcome screen. When you work on your extensions, you can embellish your welcome screen to be as fancy as you wish. But for now, we are going to keep it simple. Your initial welcome screen is going to consist of a text message.

The text message will look something like the one shown to the right. It does not need to say "Press to Play". It could say something else, as long as it is clear that the user needs to click the mouse (or press the screen) to continue. You also do not have to use the dreaded Comic Sans font like we have.

To create a text message, you need to create a GLabel object and add it to the view. Since the Breakout class is a subclass of GameController, it inherits an attribute called view which is an instance of GameView. Objects of class GameView have a method called add, which allows you to add graphics objects; as is described in the documentation, the view draws graphics objects "bottom up" using the order they were added to the view (so graphics objects added later are drawn on top).

As you can see from the documentation for GLabel and GObject, graphics objects have a lot of attributes to specify things such as position, size, color, font style, and the like. You do not have to assign all of these attributes before you add the label to the view. If you change them after adding them to the view, then the view will alter its display of the graphics object at the next animation frame. You should experiment with these attributes to get the welcome screen that you want. Remember that screen coordinates in Kivy start from the bottom-left corner of the window.

Since the welcome message should appear as soon as you start the game, it belongs in the method initialize that is one of the first important methods of the class Breakout. Put your code there and try running the application. Does your welcome message show up?

Initializing Game State

Another thing that you have to do in the beginning is initialize the game state. The field _state should start out as STATE_INACTIVE. That way we know that the game is not ongoing, and that the program should (not yet) be attempting to animate anything on the screen. Initialize the field _state inside of the method initialize at the same time you display the welcome message.

Dismissing the Welcome Screen

The welcome screen should not show up forever. The player should be able to dismiss the welcome screen (and start a new game) when he or she clicks the mouse or touches the screen. When this event happens, the application will call your function on_touch_down.

This means that you should add code to on_touch_down that removes the message in your welcome screen. In addition, the function should change the game state from STATE_INACTIVE to STATE_PAUSED, indicating that the game has now started (but there is no ball yet). You are not ready to actually write the code for the game, but switching states is an important first activity.

In implementing on_touch_down, you need to write the body so that it only removes the message if the state is currently STATE_INACTIVE. The method on_touch_down is called whenever the application receives mouse or touch input. While you are currently writing this function to make it remove the welcome message, you will use the method for other things in the future (like move the paddle). You do not want your Breakout application trying to remove a message that is not there. Hence, you now have your first example of a non-trivial invariant in Breakout:

If the state is STATE_INACTIVE, then there is a welcome message; if the state is not STATE_INACTIVE, the welcome message should not be shown.

Now try out the application. If it is working correctly, you should start up with a welcome message and then get a blank screen when you click the mouse.

Important Considerations

This first part of the assignment looks relatively straightforward, but it gets you used to having to deal with controller state. In this part, you already immediately have to add fields beyond the ones that we have provided.

In particular, to remove a graphics object from the view, you have to create a variable that stores the graphics object you wish to remove (in this case, our GLabel object). If you put the GLabel object that you created in initialize in a local variable, that variable is lost once the application starts, and other methods cannot remove the message. You must put the GLabel object in a field so that on_touch_down can instruct the view to remove it.

We have not provided a field like this for you; you must add it and the corresponding invariant (described above) to the class. Due to the order in which we create objects you should only do any assignment of GLabel objects to your new field inside a method. If you do such an assignment outside a method, the GLabel object gets created before the view window is created, and causes the view window to resize in a bad way. Therefore, initialize your new field to None.

As you progress through this assignment, you will find yourself adding more and more fields to the class. Every time one method needs the result from another method, you need to use a field to store the information that carries over. The challenge is to add enough fields to get the work done without having too many of them. If two different fields are doing similar things, you should consider consolidating them into a single field. Please place all fields that you add just after the comment starting "ADD MORE FIELDS", to make it easier for the graders (and you) to find them. Make sure to include an appropriate invariant comment with each field; style points will be deducted if you do not add them.

Try to finish this part by November 18 (e.g. two days after starting the assignment). You will spend most of your time reading the online documentation. But this will give you a solid understanding of how this application works.

Set up the Bricks

Once the game has started, the first step is to put the various pieces on the playing board. Despite the name, you should not do this in initialize. That method is for things that happen before the game has started (like the welcome screen). You do not place the bricks until you start the game, which is when the state changes to STATE_PAUSED.

Because that state change happens in on_touch_down, this is a good place to put your code to set up the bricks. However, you will quickly discover that on_touch_down gets very complex, because it has to do a lot of things. Therefore, the best option is to create a helper method (with a name of your choosing) that sets up the bricks and then call that helper method in on_touch_down. The helper should be called just after you set the state to STATE_PAUSED, which you did in the previous task.

Please place this and all other helper functions that you write after the comment starting "ADD MORE HELPER METHODS", to make it easier for the graders (and you) to find them. Be sure to specify all helper functions clearly with a docstring; style points will be deducted otherwise. We also recommend that your helper methods be hidden (start with an underscore). You are free to use either camelCase or underscores in naming your methods, but we ask that you be consistent.

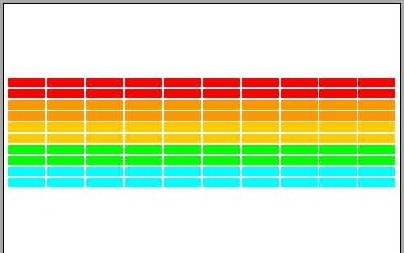

The helper function should set up the bricks as shown to the right. The number, dimensions, and spacing of the bricks, as well as the distance from the top of the window to the first line of bricks, are specified using global constants given in module controller. The only value you need to compute is the x coordinate of the first column, which should be chosen so that the bricks are centered in the window, with the leftover space divided equally on the left and right sides (Hint: the leftmost brick should be placed at x-coordinate BRICK_SEP_H/2). The colors of the bricks remain constant for two rows and run in the following sequence: RED, ORANGE, YELLOW, GREEN, CYAN. If there are more than 10 rows, you are to start over with RED, and do the sequence again. We suggest that you add a constant BRICK_COLORS to your module that lists these colors in an appropriate way to help with this.

All objects placed on the playing board are instances of subclasses of the class GObject. For example, bricks and the paddle are objects of subclass GRectangle. To define a rectangle, use the attributes pos, size, linecolor, and fillcolor to specify how it looks on screen. You can either assign the attributes after the object is created, or assign them in the constructor using keywords; see the online documentation for more. When you color a brick, you should set that color so that its outline is the same color as the interior (instead of black).

To begin, you might want to create a single Brick object of some position and size and add it to the playing board, just to see what happens. Then think about how you can place the BRICK_ROWS (in this assignment, 10) rows of bricks. You will probably need a loop of some kind. We do not care if it is a for-loop or a while-loop; just get the job done.

Important Considerations

When you add a brick, it needs to be added in two places. It needs to be added to the view, which draws it; it also needs to be added to a field in the controller, so that you can remove it later (when the ball hits it). We have provided the hidden field _bricks for precisely this purpose. Note that _bricks is a list and is intended to hold all of the bricks, not just one.

As a result, when you want to add a brick with name (stored in variable) brick, you will need to use both of the following commands:

self.view.add(brick) # Add to view
self._bricks.append(brick) # Add to controller
Similarly, when you want to remove a brick, you use the commands
self.view.remove(brick) # Remove from view
self._bricks.remove(brick) # Remove from controller
You will discover later on that if you added a brick to the view, but not the field _bricks, then your ball will pass right through it. On the hand, if you add it to _bricks but not to the view, you will get an invisible brick that will block your ball (not yet, however, as you have not yet implemented collisions).

You should make sure that your creation of the rows of bricks works with any number of rows and any number of bricks in each row (e.g. 1, 2, ..., 10, and perhaps more). This is one of the things we will be testing when we run your program.

Try to finish this part by November 19. All you need to do is to produce the brick diagram shown above (after the welcome screen). Once you have done this, you should be an expert with graphics objects. This will give you considerable confidence that you can get the rest done.

Write Function fix_bricks

When you are testing the program, you should play with just 3-4 bricks per row and 1-2 rows of bricks. This will save time and let you quickly see whether the program works correctly when the ball breaks out (gets to the top of the window). It will also allow you to test when someone wins or loses. If you play with the default number of bricks (10 rows and 10 bricks per row), then each game will take a long time to test.

Unfortunately, testing in this manner would seem to require changing the values of the global constants that give the number of rows and number of bricks in a row. This is undesirable (you might forget to change them back). Instead, we can use the fact that this is an application and give the application some values when it starts out. When you run your application (again, assuming that it is in a folder called breakout) try the command

python breakout 3 2
When you do this, python puts the list of string values
['breakout', '3', '2']
into the variable sys.argv (a global variable in the sys module). In the application code in __main__.py, we pass this list to the function fix_bricks.

Your task is to write the body of fix_bricks following its specification (and the hint given as a comment) carefully. You will then be able to start the program as shown above and have just 3 bricks per row and 2 rows. You will need a try-except in your program to handle the case when the values given are not integers. For example:

python breakout Hello World
should not cause the program to crash. Instead, it should just use the default number of bricks.

Complete this part by November 20, before heading off for Thanksgiving. We will have consultants on that Tuesday, before you leave.

Create (and Animate) the Paddle

Next you need to create the black paddle. You will need to reference the paddle often, so again we have provided you with a hidden field called _paddle. As with the bricks, create an object of type GRectangle and add it to the view. You should do this immediately after creating the bricks (either in that helper function, or as part of on_touch_down).

The real challenge with the paddle is making it move. In order to do that, you will have to take advantage of all of the on_touch methods in Breakout: on_touch_down, on_touch_up, and on_touch_move. You may find the code for the painting application, shown in lecture, to be a useful guide.

To move the paddle, you will take advantage of the fact that each of the on_touch methods has a parameter touch which stores a MotionEvent object. This object has attributes x and y which store the location of the mouse or touch event.

Ideally, you should only move the paddle when the user clicks/touches inside of the paddle to begin with (i.e. in on_touch_down). To do this, take advantage of the method collide_point, which GRectangle inherits from GObject (which actually inherits it from Kivy's Widget). See the documentation for more information.

Most of the paddle animation is going to happen in on_touch_move. There are two ways to approach this problem: the easy way and the hard way.

Easy Way: Centering on the Touch

In the easy way, you always move the paddle so that the x-position of its center aligns with the current touch position. This is as simple as finding touch.x and putting the center of your paddle there.

This approach causes a minor glitch where the paddle "jumps" to your mouse the first time you touch it. But if you are fine with this glitch, this approach is acceptable.

Hard Way: Tracking Touch Movements

To prevent the glitch, you want to move the paddle in such a way that the x-coordinate of the spot where the player clicked on the paddle remains "locked" to, or aligned with, the touch's current x position. To do this, you need to know the location of both the current touch event and the previous touch event. The method on_touch_down only receives the current touch event as an argument, so you will once again need a new field (which we did not provide).

We suggest that the new field store some sort of information about the location of the previous touch event, perhaps relative to the left edge of the paddle when the touch happened. Do not store the touch event itself, as that is a mutable object that Kivy may reuse and modify. It is a good idea to make this field None whenever the mouse/touch is released. Making this field None represents valuable state information; both on_touch_move and on_touch_up can safely do nothing if the field is None.

Given both the current touch location and the previous touch location, you can now move the paddle so that the point where it was initially touched by the mouse has the same x-coordinate as the current touch location.

Important Considerations

We do not care which approach you take. Whatever approach you use, please ensure that the paddle stays completely on the board even if the touch moves off the board. Our code for this is 3 lines long; it uses the functions min and max.

Your implementation of the on_touch methods should only allow the paddle to be moved when the game is ongoing. That is, the state should either be STATE_PAUSED or STATE_ACTIVE.

Complete this part by November 25, the day you get back from Thanksgiving break. This may mean that you have to work a little bit over your break, but it should not be too hard if you study the sample code provided above.

Create a Ball and Make it Bounce

You are now past the "setup" phase and into the "play" phase of the game. In this phase, a ball is created and moves and bounces appropriately. For the most part, a ball is just an instance of GEllipse. However, since the ball moves it does not just have a position. It also has a velocity (vx,vy). Since velocity is a property of the ball, these must be attributes of the ball object. There are no such attributes in GEllipse, so we have to subclass GEllipse to add them. This is what we have done for you in the class Ball which is included at the end of your skeleton code.

Note that the class just includes the fields for the velocity. Properties for these fields, as well as a constructor to initialize them or any other attributes are up to you. Keep in mind that the pos attribute inherited by this class specifies the bottom-left corner, and not the center of the ball.

You should initialize the fields _vx, _vy in the constructor for Ball (which you should write). Initially, the ball should head downward, so you should use a starting velocity of -5.0 for _vy. The game would be boring if every ball took the same course, so you should choose component _vx randomly. Do this with the module random, which has functions for generating random numbers. In particular, you should initialize the _vx field as follows:

self._vx = random.uniform(1.0,5.0)
self._vx = self._vx * random.choice([-1, 1])
The first line sets _vx to be a random float in the range 1.0 to 5.0 (inclusive). The second line multiplies it by -1 half the time (e.g. making it negative).

Serve the Ball

Serving the ball is as simple as adding it to the view (and the provided field _ball). In addition, when you serve the ball, you should set the state to STATE_ACTIVE, indicating that the game is ongoing and there is a ball in play.

The only difficult part is figuring out where to do this. An obvious place to serve the ball is immediately after you create the bricks and the paddle. But if you do this, then the ball will move before the player can orient him- or herself to the game (and hence the player is likely to miss the ball). Ideally, we would like to delay the ball by 3 seconds, giving the player time to get ready.

How do you delay something from happening for 3 seconds? Each of the five basic methods of Breakout takes place in a single animation frame. If you add code inside of any of them to stop and wait, the game will appear to lock up and freeze, as it cannot keep animating. The solution is to give Breakout a callback function which it will execute for you 3 seconds later. You do this with the delay method inherited from GameController. Give the function name to delay and a time of 3 seconds. The implementation of GameController will handle the rest.

If you cannot remember how to use callback functions, remember the callback example that was shown in lecture (remember, the callback usage is shown in that example in the application code). You pass the function name (with self. in front if the function is a method) without the parentheses. You are not calling the function yet; it will be called after the delay. To work properly, your callback function cannot require any arguments (or arguments other than self if it is a method).

Note: In class we showed off the Kivy Clock object which can be used to delay functions. Indeed, delay is implemented via Clock. However, do not use Clock as there are very subtle issues with getting it to work right. You should use delay instead.

Move the Ball

To move the ball, you must implement the last major method, update. This method is essentially the body of a loop which is called 60 times a second. The loop runs "forever" — as long as the application is still running. You may find the code for the animation application, shown in lecture, to be a useful example.

Each time update is called, it should move the ball a bit and change the ball direction if it hits a wall. Do not worry about collisions with the bricks or paddle. For now, the ball will travel through them like a ghost. You will deal with collisions in the next task.

The update method moves the ball one step at a time. To move the ball one step, simply add the ball's velocity components to the ball's corresponding position coordinates. You might even want to add a method to the Ball class that does this for you. Once you have moved the ball one step, do the following: Suppose the ball is going up. Then, if any part of the ball has a y-coordinate greater than or equal to GAME_HEIGHT, the ball has reached the top and its direction has to be changed so that it goes down. Do this by setting _vy to -_vy. Check the other three sides of the game board in the same fashion. When you have finished this, the ball will bounce around the playing board forever — until you stop it.

The only tricky part is checking that any part of the ball has reached (or gone over) one of the sides. For example, to see whether the ball has gone over the right edge, you need to test whether the right side of the ball is over that edge; on the other hand, to see whether the ball has gone over the left edge, you must test the left side of the ball. See the attributes in GObject for clues on how to do this.

Complete this part by November 27.

Check for Collisions

Now comes the interesting part. In order to make Breakout into a real game, you have to be able to tell when the ball collides with another object in the window. As scientists often do, we make a simplifying assumption and then relax the assumption later. Suppose the ball were a single point (x,y) rather than a circle. Then, for any GObject gobj, the method call

returns True if the point is inside of the object and False if it is not.

However, the ball is not a single point. It occupies physical area, so it may collide with something on the screen even though its center does not. The easiest thing to do — which is typical of the simplifying assumptions made in real computer games — is to check a few carefully chosen points on the outside of the ball and see whether any of those points has collided with anything. As soon as you find something at one of those points (other than the ball, of course) you can declare that the ball has collided with that object.

One of the easiest ways to come up with these "carefully chosen points" is to treat everything in the game as rectangles. A GEllipse is defined in terms of its bounding rectangle (i.e., the rectangle in which it is inscribed). Therefore the lower left corner of the ball is at the point (x,y) and the other corners are at the locations shown in the diagram to the right (d is the diameter of the ball). These points are outside of the ball, but they are close enough to make it appear that a collision has occurred.

You should write a hidden helper method (for what class?) called _getCollidingObject with the following specification:

def _getCollidingObject(self):
    """Returns: GObject that has collided with the ball
    This method checks the four corners of the ball, one at a
    time. If one of these points collides with either the paddle
    or a brick, it stops the checking immediately and returns the
    object involved in the collision. It returns None if no
    collision occurred."""

In writing this method, you will find the fields _brick and _paddle of Breakout to be very useful. That is why they are there.

You now need to modify the update method of Breakout, discussed above. After moving the ball, call _getCollidingObject to check for a collision. If the ball going up collides with the paddle, do not do anything. If the ball going down collides with the paddle, negate the vertical direction of the ball. If the ball (going in either vertical direction) collides with a brick, remove the brick from the board and negate the vertical direction. Remember our comments above about removing bricks.

Try to finish this part by November 30.

Finish the Game

You now have a (mostly) working game. However, there are two minor details left for you to take care before you can say that the game is truly finished.

Player Lives

You need to take care of the case that the ball hits the bottom wall. Right now, the ball just bounces off this wall like all the others, which makes the game really easy. In reality, hitting the bottom means that the ball is gone. In a single game, the player should get three balls before losing.

If the player can have another ball, the update method should put a message on the board somewhere (as you did on the welcome screen) telling the player that another ball is coming in 3 seconds. At this point the state should again be STATE_PAUSED, indicating that the game is in session but no ball is currently moving (otherwise, update will continue to try to move a ball that does not exist).

In three seconds, you will create a new ball, switch the state back to STATE_ACTIVE, and continue the game as normal. Again, do this with the delay function and a callback function, just like you did at the start of the game.

Winning or Losing

Eventually the game will end. Each time the ball drops off the bottom of the screen, you need to check if there are any tries left. If not, the game is over. Additionally, as part of the update method, you need to check whether there are no more bricks. As you have been storing the active bricks in _brick, an easy way to do this is to check the length of this list. When the list is empty, the game ends and the player has won.

When the game ends, and the player has either won or lost, you should put up one last message. Use a GLabel to put up a congratulator (or admonishing) message. Finally, you should change the state one last time to indicate that the game is over. That is what the state STATE_COMPLETE is for.

Try to finish this part by December 1.

Extending the Game

If you have followed our suggested timeline, you now have two days to extend the game and try to make it more fun. In doing this, you might find yourself reorganizing a lot of the code above. You may add new methods, or change any of the five main methods above. You may add new classes; for example, you may decide to make Brick a subclass of GRectangle (as you did with Ball and GEllipse) and so that the various bricks can hold extra information (e.g. power-ups). You can even change any of the constants.

All of this is acceptable. Now that you have proved that you can get the code working, you are free to change it as you see fit. However, we highly suggest that you save a copy of the basic game in a separate folder before you start to make major changes. That way you have something to revert to if things go seriously awry when implementing your extensions. Also, we suggest that you make sure to comment your code well in order to keep track of where you are in the coding process.

Extensions are not mandatory, but they do affect grading. Add more and we will be much more lenient with our grading than if you implemented the bare minimum (i.e., everything up to this point). However, note that a submission that does not have good specifications for the helper methods or invariants for the new fields will not be looked at kindly under any circumstances.

Possible Extensions

Here are some possible ways to extend the game, though you should not be constrained by any of them. Make the game you want to make. We will reward originality more than we will reward quantity. While this is a fairly simple game, the design space is wide open with possibilities.

Improve user control over bounces

The game gets rather boring if the only thing the player has to do is hit the ball. Let the player control the ball by hitting it with different parts of the paddle. For example, suppose the ball is coming down toward the right (or left). If it hits the left (or right) 1/4 of the paddle, the ball goes back the way it came (both vx and vy are negated).

Implement "Try Again"

Let the player play as many games as they want. The player could click the mouse button to start a new game. You will need to change the method on_touch_down to implement this functionality.

Implement sound effects

It is an easy extension to add appropriate sounds for game events. We have provided several audio files in A7.zip. You are not restricted by those; you can easily find lots more (but it is a violation of the Academic Integrity Policy to use copyrighted material in your assignment).

To load an audio file, you simply create a Sound object as follows:

bounceSound = Sound('bounce.wav')
Once it is loaded, you can play it whenever you want (such as when the ball hits something) by calling bounceSound.play(). The sound might get monotonous after a while, so make the sounds vary, and figure out a way to let the user turn sound off (and on).

Read the online specification to see how to use Sound objects. In particular, if you want to play the same sound multiple times simultaneously (such as when you hit two bricks simultaneously), you will need two different Sound objects for the same sound file.

Add a kicker

The arcade version of Breakout lures you in by starting off slowly. But as soon as you think you are getting the hang of things, the ball speeds up, making life more exciting. Implement this in some fashion, perhaps by doubling the horizontal velocity of the ball on the seventh time it hits the paddle.

Keep score

Design some way to score the player's performance. This could be as simple as the number of bricks destroyed. However, you may want to make the bricks in the higher rows more valuable.

You should display the score at all times using a GLabel object. Where you display it is up to you (except do not keep the player from seeing the balls, paddle, or bricks). Remember that, to change the score, you do not need to remove and re-add the GLabel. Simply change the text attribute in your GLabel object.

Use your imagination

What else have you always wanted a game like this to do? At some point your game might stop being like Breakout and be more like Arkanoid. Do not go too wild with the power-ups, however. We much prefer a few innovations that greatly improve the play.

Completing the Assignment

Before submitting anything, test your program to see that it works. Play for a while and make sure that as many parts of it as you can check are working. If you think everything is working, try this: just before the ball is going to pass the paddle level, move the paddle quickly so that the paddle collides with the ball rather than vice-versa. Does everything still work, or does your ball seem to get "glued" to the paddle? If you get this error, try to understand why it occurs and how you might fix it.

When you are done, re-read the specifications of all your methods and functions (including those we stubbed in for you), and be sure that your specifications are clear and that your functions follow their specifications. If you implemented extensions, make sure your documentation makes it very clear what your extensions are.

As part of this assignment, we expect you to follow our style guidelines.

  1. There are no tabs in the file, only spaces.
  2. Classes are separated from each other by two blank lines.
  3. Methods are separated from each other by a single blank line.
  4. Class contents are ordered as follows: fields, properties, constructor, operators, methods.
  5. Lines are short enough that horizontal scrolling is not necessary (about 80 chars is long enough).
  6. The specifications for all of the methods and properties are complete.
  7. Specifications are immediately after the method header and indented.

In the previous assignment we introduced the stylistic convention involving camelCase. Unfortunately, Kivy breaks this convention (hence on_touch_down and not onTouchDown). Therefore, we will not enforce that convention on this assignment.

Finally, at the top of your module controller.py add a brief description of your extensions. Just add it as a comment (use single line comments; this is not part of your specification). Tell us what you were trying to do.

Turning it In

Upload the files controller.py and __main__.py to CMS by the due date: Monday, December 3rd at 11:59 pm. If you have extra files to submit (e.g. custom sound or art files), put all your files in a zip file called everything.zip and submit this instead. We need to be able to play your game, and if anything is missing, we cannot play it.


One last time, we need you to do a survey. The survey should be done individually (even if you worked in a group). As always, the survey will ask about things such as how long you spent on the assignment, your impression of the difficulty, and what could be done to improve it. Please try to complete the survey within a day of turning in this assignment. Remember that participation in surveys comprises 1% of your final grade.
