Timed Actions & Tweens in AniGraph

You can add timed actions---meaning actions that occur at every time update for a certain finite duration of time---using AniGraph's AController.addTimedAction function. This makes the most sense to use on your scene controller. Here is a function that, when called from the scene controller, will cause sceneController.model.meshModel to spin according to a spline:

spinLC(){
    const self = this;

    /**
     * This function will be called at each time update for the duration of the action
     * @param actionProgress - this is a number [0,1] indicating progress along the action. If a tween is provided, it will be progress along the tween. If no tween is provided, then it will correspond to how much of the action duration time has passed
     */
    function twirl(actionProgress:number){
        // In this example, we set transform to a rotation based on action progress
        let transform = NodeTransform3D.RotationZ(actionProgress*Math.PI*8);
        self.model.meshModel.setTransform(transform);
    }

    /**
     * A cleanup function will reset the transform to the identity when the action is complete
     */
    function twirlDone(){
        // Set transform back to identity
        self.model.meshModel.setTransform(new NodeTransform3D());
    }

    /**
     * AniGraph's BezierTween class defines a bezier tween.
     * The curve always starts at [0,0] and ends at [1,1]. You can define the two middle control points
     * with the constraint that there must be a unique y for every x.
     * @type {BezierTween}
     */
    let tween = new BezierTween([0.3,-0.5, 0.7, 1.5]);

    /**
     * The second argument is the duration.
     * The last argument is a handle that prevents overlapping fires and can optionally be used to cancel the action early.
     */
    this.addTimedAction(
        twirl,
        2,
        twirlDone,
        tween,
        "Twirl"
    )
}

The arguments to the tween (a,b,c,d) correspond to coordinates of the middle control points in a normalized cubic beizier tween:

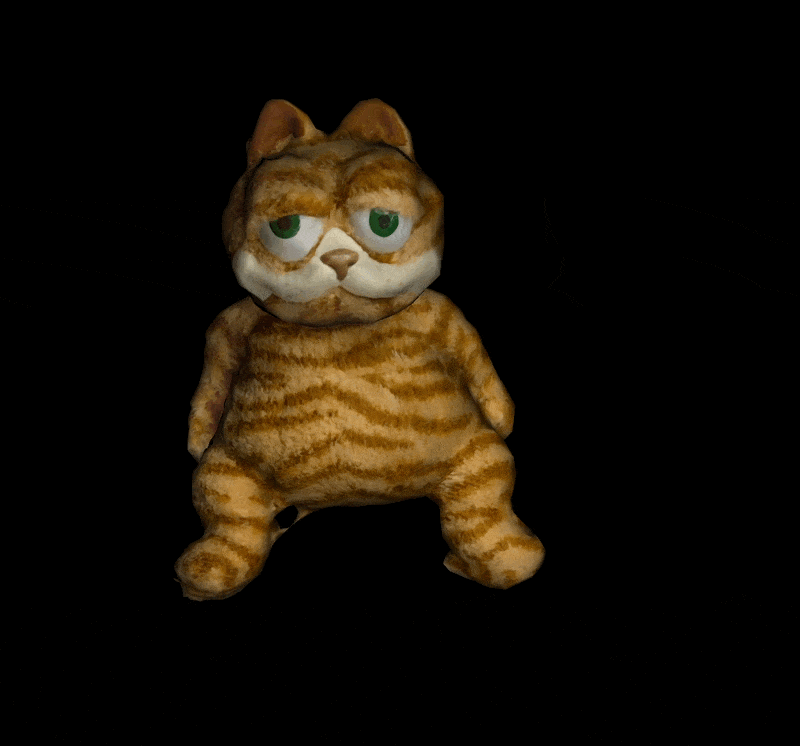

When spinLC is called on the scene controller, this happens:

You can try adding other timed events with different durations, tweens, and behavior.
