cugl::Scene Class Reference

#include <CUScene.h>

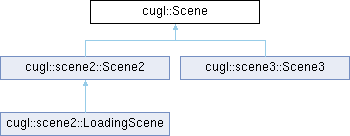

Inheritance diagram for cugl::Scene:

Public Member Functions
	Scene ()
	~Scene ()
virtual void	dispose ()
virtual bool	init ()
const std::string &	getName () const
void	setName (const std::string name)
std::shared_ptr< Camera > &	getCamera ()
const std::shared_ptr< Camera > &	getCamera () const
virtual std::string	toString (bool verbose=false) const
	operator std::string () const
const Size &	getSize () const
const Rect	getBounds () const
Vec3	screenToWorldCoords (const Vec2 &screenCoords) const
Vec2	worldToScreenCoords (const Vec3 &worldCoords) const
bool	isActive () const
virtual void	setActive (bool value)
virtual void	update (float dt)
virtual void	reset ()
virtual void	render ()

Protected Attributes
std::shared_ptr< Camera >	_camera
std::string	_name
Size	_size
bool	_active

Detailed Description

This class provides the root class of an application scene.

Most applications are composed of one or more scenes, with the application root responsible for switching between them. Typically these scenes have associated scene graphs. However scene graphs are specific to a rendering pipeline. Therefore it is useful to have a base class that is pipeline agnostic.

Scenes are designed to fill the entire screen. However, to better support aspect ratio independent design, many screens are height or width locked. In each case that means that this particular dimension is fixed to a particular size. This makes it possible to layout UI elements with Figma or other tools.

While Scenes are designed to fill the entire screen, it is possible to render multiple scenes on top of each other. This can be useful for transition effects or for UI layers where you want the camera to be separate from the main game layer.

This class has no static allocators as it is an abstract class intended to be subclassed

Constructor & Destructor Documentation

Scene()

cugl::Scene::Scene ( )

inline

Creates a new degenerate Scene on the stack.

The scene has no view size and must be initialized.

NEVER USE A CONSTRUCTOR WITH NEW. If you want to allocate an object on the heap, use one of the static constructors instead.

~Scene()

cugl::Scene::~Scene ( )

inline

Deletes this scene, disposing all resources

Member Function Documentation

dispose()

virtual void cugl::Scene::dispose ( )

inlinevirtual

Disposes all of the resources used by this scene.

A disposed Scene can be safely reinitialized. Any children owned by this scene will be released. They will be deleted if no other object owns them.

Reimplemented in cugl::scene2::LoadingScene, cugl::scene2::Scene2, and cugl::scene3::Scene3.

getBounds()

const Rect cugl::Scene::getBounds ( ) const

inline

Returns the viewport of this Scene.

Returns

the viewport of this Scene.

getCamera() [1/2]

std::shared_ptr< Camera > & cugl::Scene::getCamera ( )

inline

Returns the camera for this scene.

Returns

the camera for this scene.

getCamera() [2/2]

const std::shared_ptr< Camera > & cugl::Scene::getCamera ( ) const

inline

Returns the camera for this scene.

Returns

the camera for this scene.

getName()

const std::string & cugl::Scene::getName ( ) const

inline

Returns a string that is used to identify the scene.

Returns

a string that is used to identify the scene.

getSize()

const Size & cugl::Scene::getSize ( ) const

inline

Returns the viewport size of this Scene.

Returns

the viewport size of this Scene.

init()

virtual bool cugl::Scene::init ( )

virtual

Initializes a Scene to fill the display.

The meaning of this initializer depends upon the appropriate subclass.

Returns

true if initialization was successful.

Reimplemented in cugl::scene2::Scene2, and cugl::scene3::Scene3.

isActive()

bool cugl::Scene::isActive ( ) const

inline

Returns true if the scene is currently active

Returns

true if the scene is currently active

operator std::string()

cugl::Scene::operator std::string ( ) const

inline

Cast from a Scene to a string.

render()

virtual void cugl::Scene::render ( )

inlinevirtual

Renders this screen to the scene.

This method make no assumption about the graphics pipeline. Each scene is capable of having its own pipeline.

Reimplemented in cugl::scene2::Scene2, and cugl::scene3::Scene3.

reset()

virtual void cugl::Scene::reset ( )

inlinevirtual

Resets the status of the scene to its original configuration.

screenToWorldCoords()

Vec3 cugl::Scene::screenToWorldCoords ( const Vec2 &  screenCoords ) const

inline

Returns the world space equivalent of a point in screen coordinates.

Ideally, window space and screen space would be the same space. They are both defined by the viewport and have the same offset and dimension. However, screen coordinates have the origin in the top left while window coordinates have the origin in the bottom left.

This method is important for converting event coordinates (such as a mouse click) to world coordinates. Note that not all scenes support the third dimension.

Parameters

screenCoords

The point in screen coordinates

Returns

the world space equivalent of a point in screen coordinates.

setActive()

virtual void cugl::Scene::setActive ( bool  value )

inlinevirtual

Sets whether the scene is currently active

Parameters

value

whether the scene is currently active

setName()

void cugl::Scene::setName ( const std::string  name )

inline

Returns the string that is used to identify the scene.

Parameters

name	A string that is used to identify the scene.

toString()

virtual std::string cugl::Scene::toString ( bool  verbose = false ) const

virtual

Returns a string representation of this scene for debugging purposes.

If verbose is true, the string will include class information. This allows us to unambiguously identify the class.

Parameters

verbose

Whether to include class information

Returns

a string representation of this scene for debuggging purposes.

Reimplemented in cugl::scene2::Scene2, and cugl::scene3::Scene3.

update()

virtual void cugl::Scene::update ( float  dt )

inlinevirtual

The method called to update the scene.

This method should be overridden with the specific scene logic.

Parameters

dt	The amount of time (in seconds) since the last frame

Reimplemented in cugl::scene2::LoadingScene.

worldToScreenCoords()

Vec2 cugl::Scene::worldToScreenCoords ( const Vec3 &  worldCoords ) const

inline

Returns the screen space equivalent of a point in world coordinates.

Ideally, window space and screen space would be the same space. They are both defined by the viewport and have the same offset and dimension. However, screen coordinates have the origin in the top left while window coordinates have the origin in the bottom left.

This method is important for converting world coordinates to event coordinates (such as a mouse click). Note that not all scenes support the third dimension.

Parameters

worldCoords

The point in wprld coordinates

Returns

the screen space equivalent of a point in world coordinates.

Member Data Documentation

_active

bool cugl::Scene::_active

protected

Whether or note this scene is still active

_camera

std::shared_ptr<Camera> cugl::Scene::_camera

protected

The camera for this scene

_name

std::string cugl::Scene::_name

protected

The name of this scene

_size

Size cugl::Scene::_size

protected

The scene size (for initializing the camera).

---

The documentation for this class was generated from the following file:

• /Users/wmwhite/Developer/CUGL/include/cugl/core/CUScene.h
