Architecture
The system consists of five phases: preprocess,
parse tree construction, logical manipulation,
symbol table construction, and output. Two internal
data structures, Parse Tree and Symbol Table,
are constructed during the process. These data
structures are used to pass information from phase

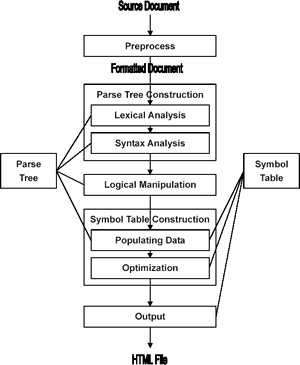

to phase for test cases generation. The following
figure illustrates the entire workflow of the
system:
Back
To Top
GUI
Graphical User Interface (GUI) module is the
front end of the system. It facilitates the interaction
between the user and the system. It is responsible
for obtaining necessary information from user
for test cases generation and provides feedback
about the generation process.
SLS Test Cases Generator provides a user-friendly

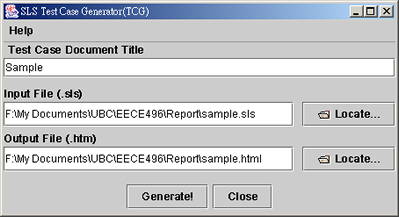

and sufficient GUI. The following figure shows
the main application window:
