A Type and Effect System for Deterministic Parallel Java

by Hanchen Jin

Background

With the end of Moores’ Law around 2000, to further improve the compute power, the advent of multicore processors demands the behavior of parallel programming. And the dominant model is the multithreaded shared memory programming. It is inherently complex due to the possible thread interleavings that caused the nondeterministic program behaviors. This nondeterminism causes subtle bugs including data races, atomicity violations and deadlocks.

To avoid the nondeterminism, the parallel programmer applies locks and semaphores to enforce the deterministic programming. But this task is tedious, error prone, and challenging.

Motivation

Many computational algorithms require deterministic behavior, but today’s shared-memory parallel programming model forces programmers to implement these algorithms in a nondeterministic notation. And the programmers have to ensure the deterministic results by themselves, which is complex and error-prone.

Solutions

Thus, the authors choose this method to simplify the parallel programming in Java by introducing deterministic semantics.

Contribution

  1. The authors describe an region-based type and effect system that provides several new features (RPLs, index-parameterized arrays, subarrays, and invocation effects) over previous systems for expressing deterministic parallel algorithms. These features guarantee determinism at compile-time.

Specifically, they introduce region path lists (RPLs), which enable more flexible effect summaries including effects on nested structures. They introduce an index-parameterized array type that allows references to provably distinct objects to be stored in an array while still permitting arbitrary aliasing of the objects through references outside the array. They also define the notions of subarrays and partition operations to enable in-place parallel divide and conquer operations on arrays. They also introduce an invocation effect with simple commutativity annotations to permit the parallel invocation of operations that may interfere at the level of reads and write, but still commute logically, i.e., produce the same logical behavior.

  1. The authors develop a formal definition of the static and dynamic semantics and a detailed proof that the system allows sound static inference about noninterference of effects.

  2. The authors describe a language called Deterministic Parallel Java (DPJ) that incorporates the new type and effect system, which supports the full flexibility of the sequential subset of Java.

  3. The authors demonstrate that a practical type and effect system can simplify parallel programming by guaranteeing deterministic semantics with modular, compile-time type checking even in a rich, concurrent object-oriented language such as Java. They study six real-word parallel programs writen in DPJ and show good performance gains (coming close to or beating equivalent, nondeterministic multithreaded programs where those are available).

Basic Features in DPJ

  1. Region names: a field region declaration declares a new name r (called a field region name), which is associated with the static class.

  2. Region parameters: class and method region parameters which is similar to Java generic parameters. It enables us to create multiple instances of the same class with their data in different regions.

  3. Disjointness constraints: to control aliasing of region parameters. The programmer may write a disjointness constraint of the form P1 # P2, where P1 and P2 are parameters that are required to be disjoint.

Disjointness: if we know that effects on two Region Path Lists (RPLs) R1 and R2 are noninterfering, we say that R1 and R2 are disjoint.

  1. Partitioning the heap: use “in” to partition the heap into regions. In the following example, the region P is a dedicated partition in the heap. Moreover, the region P is furthre partition to two parts: L and R.
class TreeNode<region P> {
    region Links, L, R;
    double mass in P;
    TreeNode<L> left in Links ;
    TreeNode<R> right in Links ;
    ......
}

  1. Method effect summaries: every method (including all constructors) must conservatively summarize its heap effects, either read or write (write imply read).

  2. Expressing parallelism: cobegin block executes each statement in its body as a parallel task. Forreach loop is used in conjunction with arrays. As a simple example showed below, the read & write link L and the read & write link R can be performed in parallel.

class TreeNode<region P> {
    region Links, L, R;
    double mass in P;
    TreeNode<L> left in Links ;
    TreeNode<R> right in Links ;
    void setMass(double mass) writes P { this.mass = mass; } void initTree(double mass) {
        cobegin {
            /* reads Links writes L */
            left.mass = mass;
            /* reads Links writes R */
            right.mass = mass;
        }
    }
}

New Features in DPJ

1. Region Path Lists (RPLs)

  1. Specifying Single Regions
    Each RPL names a single region, or set of memory locations, on the heap. The set of all regions partitions the heap, i.e., each memory location lies in exactly one region. The regions are arranged in a tree with a special region root as the root node. We say that one region is nested under another if the first is a descendant of the second in the tree.
  2. Specifying Sets of Regions
    To express recursive parallel algorithms, we must specify effects on sets of regions (e.g., all regions under R). A partially specified RPL contains the symbol * (star) as an RPL element, standing for some unknown sequence of names. An RPL that contains no * is fully specified.
  3. Subtyping and Type Casts
    Partially specified RPLs are also useful for subtyping, with signals like = and <= to denote set inclusion. DPJ allows any type cast that would be legal for the types obtained by erasing the region variables.

2. Index-Parameterized Arrays

We can define a special array type with the restriction that an object reference value o assigned to cell n (where n is a natural number constant) of such an array has a runtime type that is parameterized by n. If accesses through cell n touch only region n (even by following a chain of references), then the accesses through different cells are guaranteed to be disjoint. Such an array is called index-parameterized array.

To represent such arrays, the authors introduce two language constructs:

  1. An array RPL element written [e], where e is an integer expression.
  2. An index-parameterized array type that allows programmer to write the region and type of array cell e using the array RPL element [e]. For example, programmers can specify that cell e resides in region Root:[e] and has type C<Root:[e]>.

3. Subarrays

A familiar pattern for writing divide and conquer recursion is to partition an array into two or more disjoint pieces and give each array to a subtask.

  1. DPJ provides a class DPJArray that wraps an ordinary Java array and provides a view into contiguous segment of it, parameterized by start position S and length L.
  2. DPJ provides a class DPJPartition, representing an indexed collection of DPJArray objects, all of which point into mutually disjoint segments of the original array.
  3. To support recursive computations, the authors extend the syntax of RPLs by allowing a final local variable z of class type to appear at the head of an RPL which ensures that different partitions get different regions.

4. Commutativity Annotations

  1. Classes may contain declarations of the form m commuteswith m’, where m and m’ are method names, indicating that any pair of invocations of the named methods may be safely done in parallel, regardless of the read and write effects of the methods.
  2. To represent and check effects soundly in the present of commutativity annotations, the effect system provides a novel invocation effect of the form invokes m with E, which records that an invocation of method m occurred with underlying effects E.

The authors formalized a subset of DPJ, called Core DPJ as a sequential language. For more details about the syntax, static and dynamic semantics, please refer to the paper.

Evaluation

The authors extended Sun’s javac compiler which compiles DPJ into common Java source. And they built a runtime system for DPJ using the ForkJoinTask framework that will be added to the java.util.concurrent standard library in Java 1.7. The benchmark used for evaluation are parallel merge sort, two codes from the Java Grande parallel benchmark suite (a Monte Carlo financial simulation and IDEA encryption), the force computation from the Barnes-Hut n-body simulation, k-means clustering from the STAMP benchmarks, and a tree-based collision detection algorithm from a large, real-world open source game engine called JMonkey.

Expressiveness and Coverage

The authors use DPJ to express all available parallelism for the benchmarks (Merge Sort, Monte Carlo, IDEA, K-Means, and Collision Tree), which shows the expressiveness of DPJ.

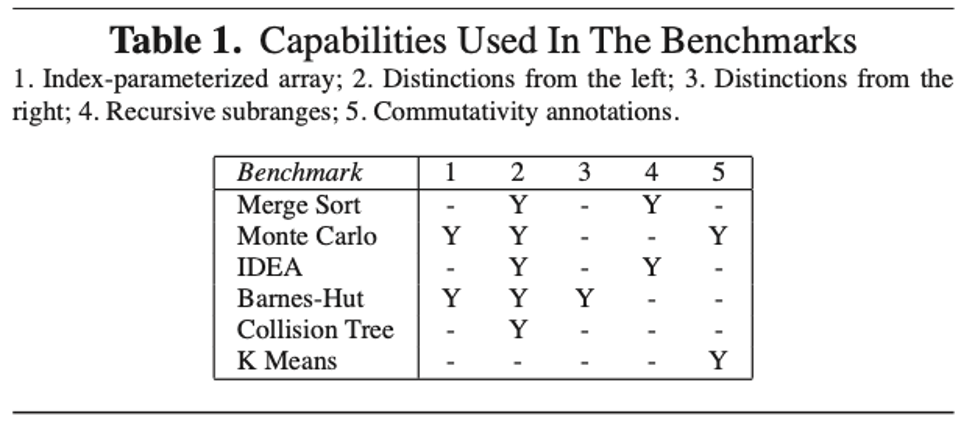

evaluation_table_exp

Perforamnce

The experiment platform is as follows: a Dell R900 multiprocessor running Red Hat Linux with 24 cores, comprising four six-core Xeon CPU, with a total of 48GB main memory.

evaluation_figure_perf

The figure shows the DPJ version speed up compared with the equivalent sequential version of the program. As we can learn from the figure, the actual speedup is reasonable compared with the ideal performance gain, thus proves that the DPJ adds negligible runtime overhead for achieving determinism.

Porting Effort

The following table shows the efforts required for changing the Java source code to the equivalent version in DPJ. Programmers need to modify about 10% of the original code, and most of them are about writing RPL arguments when instantiating types, followed by writing method effect summaries.

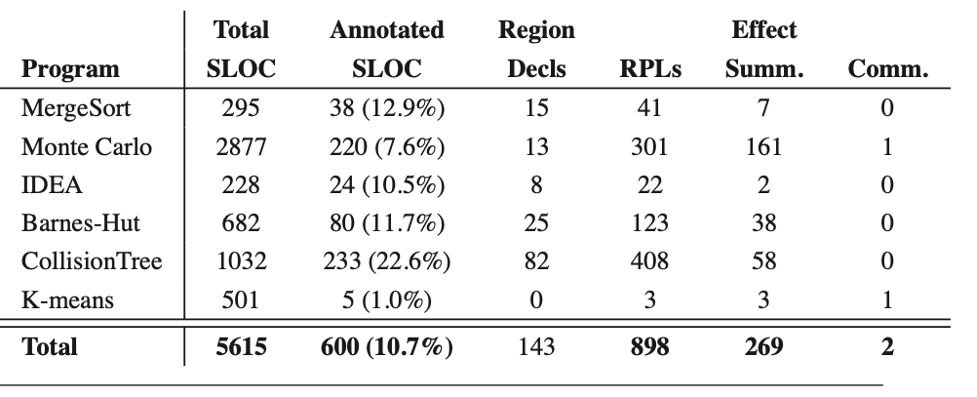

evaluation_table_port

Limitations

  1. Programmer are required to use the correct semantics to enforce the correctness and determinism of the program. For instance, commuteswith should be used mostly by library and framework code that is written by experienced programmers and extensively tested.

  2. When exploring some kind of parallelism in DPJ, programmers are required to relocate the data layout for achieving better performance. For example, to achieve good cache performance in Barness-Hut, the body code that runs in parallel should be copied to the new destination region at the point of re-insertion.

Questions

  1. Have you ever written any multi-threaded programs in any programming languages? How did you divide up the workload and enforce the synchronization?

  2. Have you ever tried multi-threading in Java? What is the key limitation of writing concurrent programs in the current Java programming model?

  3. Do you think determinism is a good idea for parallel programming? And do you think building a static checker is the proper method to achieve determinism? What can be the tradeoffs of enforcing determinism in runtime?

  4. The authors in this paper provide the new features to help the programmer building the programs running in parallel. But the overall effort of writing, testing, and debugging a program with any parallel programming model is dominated by the time required to understand the parallelism and share patterns, and to debug the parallel code. Thus, probably the program synthesis technique could be our final goal?

Specifically, the programmer is responsible for designing the interface of the parallel program or kernels, specifying the mathematic equations related to the input and output values. The mathematic equation should be broken down into sub-equations to separate the process that is supposed to running in serial or in parallel. Then the programmer should specify the equations that they think should be running in parallel and the number of threads used for exploring the parallelism. Finally, the compiler will try to parallelize the key equations and execute the program.
