#include <CULight.h>

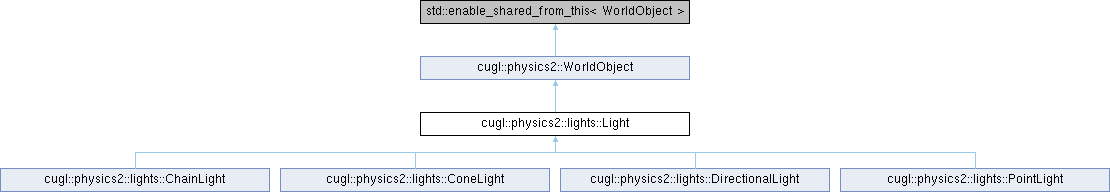

Inheritance diagram for cugl::physics2::lights::Light:

Public Member Functions
	Light (void)

	~Light ()

virtual void	dispose ()

virtual bool	init (Uint32 rays=DEFAULT_RAYS)

virtual bool	initWithReach (float reach, Uint32 rays=DEFAULT_RAYS)

virtual bool	initWithPosition (const Vec2 &pos, Uint32 rays=DEFAULT_RAYS)

virtual bool	initWithPositionReach (const Vec2 &pos, float reach, Uint32 rays=DEFAULT_RAYS)

void	setRayNum (Uint32 rays)

int	getRayNum ()

const Vec2 &	getPosition () const

float	getX () const

float	getY () const

void	setPosition (float x, float y)

void	setPosition (const Vec2 &position)

float	getReach () const

void	setReach (float dist)

float	getAngle () const

void	setAngle (float angle)

Color4	getColor () const

void	setColor (Color4 color)

void	setColor (float r, float g, float b, float a)

float	getGamma () const

void	setGamma (float gamma)

bool	isActive () const

void	setActive (bool active)

bool	isXray () const

void	setXray (bool xray)

bool	isStaticLight () const

void	setStaticLight (bool staticLight)

bool	isSoft () const

void	setSoft (bool soft)

float	getSoftness () const

void	setSoftness (float factor)

bool	getDebug () const

void	setDebug (bool flag)

bool	contains (float x, float y)

virtual bool	contains (const Vec2 &p)

const graphics::Mesh< LightVertex > &	getLightMesh () const

const graphics::Mesh< graphics::SpriteVertex > &	getDebugMesh () const

const Affine2	getGraphicsTransform () const

void	attachBody (b2Body *body)

void	attachBody (b2Body *body, const Vec2 &offset)

void	attachBody (b2Body *body, const Vec2 &offset, float radians)

float	getPhysicsUnits () const

void	setPhysicsUnits (float units)

bool	doesIgnoreAttachedBody () const

void	setIgnoreAttachedBody (bool flag)

const b2Filter &	getContactFilter () const

void	setContactFilter (const b2Filter &filter)

virtual void	detachWorld (const ObstacleWorld *world) override

void	update (b2World *world, const Rect &bounds)

virtual void	detachWorld (const ObstacleWorld *world)

Static Public Member Functions
static bool	filters (const b2Filter &filter, b2Fixture *fixture)

static const b2Filter &	getGlobalContactFilter ()

static void	setGlobalContactFilter (const b2Filter &filter)

Static Public Attributes
static const int	MIN_RAYS

static int	DEFAULT_RAYS

static float	DEFAULT_REACH

static float	DEFAULT_SOFTNESS

Protected Member Functions
virtual void	initRays ()=0

void	resetRays ()

virtual void	updateMesh ()=0

Protected Attributes
Uint32	_rayNum

Color4	_color

float	_gamma

Vec2	_position

float	_angle

float	_reach

float	_shadowFactor

bool	_active

bool	_dirty

bool	_soft

bool	_xray

bool	_staticLight

b2Body *	_body

Vec2	_bodyOffset

float	_bodyAngle

float	_units

bool	_ignoreBody

b2Filter	_contactFilter

std::vector< Vec2 >	_lightRays

std::vector< Vec2 >	_endPoints

std::vector< Vec2 >	_directions

std::vector< float >	_fractions

LightRaycast	_raycast

bool	_debug

graphics::Mesh< LightVertex >	_lightMesh

graphics::Mesh< graphics::SpriteVertex >	_debugMesh

Static Protected Attributes
static b2Filter	_globalFilter

Detailed Description

This is an abstract class for all light objects.

This is a fairly minimal class that exists primarily for polymorphic reasons. As a general rule, you will want one of the subclasses, such as PointLight, ConeLight, or DirectionalLight.

While a light can be attached to a box2d body, it does not own the body. That body should be constructed elsewhere such as in an Obstacle object. This class should use the WorldObject interface to be notified when the underlying world has been released.

Note that lights have no methods for rendering. That is done via the classes LightBatch. The methods getLightMesh and getDebugMesh extract meshes to be used in LightBatch or graphics::SpriteBatch, respectively.

As an abstract class there are no static constructors.

Constructor & Destructor Documentation

◆ Light()

cugl::physics2::lights::Light::Light ( void )

Creates a light with no mesh or drawing information.

NEVER USE A CONSTRUCTOR WITH NEW. If you want to allocate an object on the heap, use one of the static constructors instead.

◆ ~Light()

cugl::physics2::lights::Light::~Light ( )

inline

Deletes this light, disposing all resources.

Member Function Documentation

◆ attachBody() [1/3]

void cugl::physics2::lights::Light::attachBody ( b2Body * body )

inline

Attaches the light to the specified the body

When attached, the light will automatically follow this body unless stated otherwise. Note that the body rotation angle is taken into account for the light offset and direction calculations.

Note that lights do not own box2d bodies. The body should created (and deleted) separately, either manually or part of an Obstacle object.

Parameters

body	The body to attach this light to

◆ attachBody() [2/3]

void cugl::physics2::lights::Light::attachBody	(	b2Body *	body,
		const Vec2 &	offset
	)

inline

Attaches the light to the specified body with the relative offset

When attached, the light will automatically follow this body. Note that the body rotation angle is taken into account for the light offset and direction calculations.

Note that lights do not own box2d bodies. The body should created (and deleted) separately, either manually or part of an Obstacle object.

Parameters

body	The body to attach this light to
offset	The relative offset in world coordinates

◆ attachBody() [3/3]

void cugl::physics2::lights::Light::attachBody	(	b2Body *	body,
		const Vec2 &	offset,
		float	radians
	)

Attaches the light to the specified body with the relative offset and direction

When attached, the light will automatically follow this body unless stated otherwise. Note that the body rotation angle is taken into account for the light offset and direction calculations.

Note that lights do not own box2d bodies. The body should created (and deleted) separately, either manually or part of an Obstacle object.

Parameters

body	The body to attach this light to
offset	The relative offset in world coordinates
radians	The angle offset offset in radians

◆ contains() [1/2]

virtual bool cugl::physics2::lights::Light::contains ( const Vec2 & p )

inlinevirtual

Returns true if given point is inside of this light area

Parameters

p	the point in world coordinates

Returns: true if given point is inside of this light area

Reimplemented in cugl::physics2::lights::ChainLight, cugl::physics2::lights::ConeLight, cugl::physics2::lights::DirectionalLight, and cugl::physics2::lights::PointLight.

◆ contains() [2/2]

bool cugl::physics2::lights::Light::contains	(	float	x,
		float	y
	)

inline

Returns true if given point is inside of this light area

Parameters

x	the horizontal position of point in world coordinates
y	the vertical position of point in world coordinates

Returns: true if given point is inside of this light area

◆ detachWorld()

virtual void cugl::physics2::lights::Light::detachWorld ( const ObstacleWorld * world )

inlineoverridevirtual

Detatches the given obstacle world from this object.

This method ensures safe clean-up.

Parameters

world The world to detatch.

Reimplemented from cugl::physics2::WorldObject.

◆ dispose()

virtual void cugl::physics2::lights::Light::dispose ( )

virtual

Deletes the light, freeing all resources.

You must reinitialize the light to use it.

Reimplemented in cugl::physics2::lights::ChainLight.

◆ doesIgnoreAttachedBody()

bool cugl::physics2::lights::Light::doesIgnoreAttachedBody ( ) const

inline

Returns true if the attached body fixtures will be ignored during raycasting

If the value is true, all the fixtures of attached body will be ignored and will not create any shadows for this light. By default, this value is set to false.

Returns: true if the attached body fixtures will be ignored during raycasting

◆ filters()

static bool cugl::physics2::lights::Light::filters	(	const b2Filter &	filter,
		b2Fixture *	fixture
	)

static

Returns true if the given filter omits the given fixture.

This method is used to eliminate any fixtures that would be filtered out during raycasting.

Parameters

filter	The filter to apply
fixture	The fixture to test

Returns: true if the given filter omits the given fixture.

◆ getAngle()

float cugl::physics2::lights::Light::getAngle ( ) const

inline

Returns the angle of the light in radians

For lights with direction, the angle is typically the "facing" of the light.

Returns: the angle in radians

◆ getColor()

Color4 cugl::physics2::lights::Light::getColor ( ) const

inline

Returns the current color of this light

The RGB values set the color while the alpha value sets the intensity. Note that you can also use colorless (e.g Color4#BLACK light with shadows. By default this is a light grey color.

Returns: the current color of this light

◆ getContactFilter()

const b2Filter & cugl::physics2::lights::Light::getContactFilter ( ) const

inline

Returns the contact filter for this light

In raycasting, this filter is combined with getGlobalContactFilter to remove any fixtures that should be ignored.

Returns: the contact filter for this light

◆ getDebug()

bool cugl::physics2::lights::Light::getDebug ( ) const

inline

Returns true if debugging is enabled.

If this attribute is true, getDebugMesh will return a non-empty mesh for debugging.

Returns: true if debugging is enabled.

◆ getDebugMesh()

const graphics::Mesh< graphics::SpriteVertex > & cugl::physics2::lights::Light::getDebugMesh ( ) const

inline

Returns the debug mesh for this light.

This mesh is a wireframe that can be passed to graphics::SpriteBatch for drawing, or used in a scene2::MeshNode. The coordinates of the mesh are in the light coordinate space, meaning that they the origin is the light position. They are scaled by the getPhysicsUnits. This means that you should use getGraphicsTransform to draw this mesh to a sprite batch.

Note that if getDebug is not true, this mesh will be empty.

Returns: the debug mesh for this light.

◆ getGamma()

float cugl::physics2::lights::Light::getGamma ( ) const

inline

Returns the gamma correction factor for this light.

This value is used to adjust the light color in the LightBatch#draw method.

Returns: the gamma correction factor for this light.

◆ getGlobalContactFilter()

static const b2Filter & cugl::physics2::lights::Light::getGlobalContactFilter ( )

inlinestatic

Returns the contact filter for all lights.

In raycasting, this filter is combined with getContactFilter to remove any fixtures that should be ignored.

Returns: the contact filter for all lights.

◆ getGraphicsTransform()

const Affine2 cugl::physics2::lights::Light::getGraphicsTransform ( ) const

Returns a transform for displaying graphics attached to this light.

Obstacles are generally used to transform a 2d graphics object on the screen. This includes getDebugMesh. Passing this transform to a graphics::SpriteBatch will display the object in its proper location.

Returns: a transform for displaying graphics attached to this light.

◆ getLightMesh()

const graphics::Mesh< LightVertex > & cugl::physics2::lights::Light::getLightMesh ( ) const

inline

Returns the light mesh for this light.

This light mesh can be passed to a LightBatch for drawing. Vertices in a light mesh are in absolute worlds coordinates and do not need to be transformed before sending them to the light batch.

Returns: the light mesh for this light.

◆ getPhysicsUnits()

float cugl::physics2::lights::Light::getPhysicsUnits ( ) const

inline

Returns the physics units for this light.

Physics units are the number of pixels per box2d unit. These values are used to create the debug mesh.

Returns: the physics units for this light

◆ getPosition()

const Vec2 & cugl::physics2::lights::Light::getPosition ( ) const

inline

Returns the position of the light

All positions are measured in box2d world coordinates. If this light has an attached box2d body, that body will determine this position.

Returns: the position of the light

◆ getRayNum()

int cugl::physics2::lights::Light::getRayNum ( )

inline

Returns the number of rays set for this light

Returns: the number of rays set for this light

◆ getReach()

float cugl::physics2::lights::Light::getReach ( ) const

inline

Returns the light reach

The reach is the distance that the light extends from its position.

NOTE: The minimum value should be capped to 0.1f meter. In addition, this value does not include any gamma correction.

Returns: the light reach

◆ getSoftness()

float cugl::physics2::lights::Light::getSoftness ( ) const

inline

Returns the softness value for the beam tips.

This value is multiplied by the reach of the light to get the length of the soft shadows. The default value is 0.1f

Returns: the softness value for the beam tips.

◆ getX()

float cugl::physics2::lights::Light::getX ( ) const

inline

Returns the horizontal position of the light

All positions are measured in box2d world coordinates. If this light has an attached box2d body, that body will determine this position.

Returns: the horizontal starting of the light

◆ getY()

float cugl::physics2::lights::Light::getY ( ) const

inline

Returns the vertical starting position of light

All positions are measured in box2d world coordinates. If this light has an attached box2d body, that body will determine this position.

Returns: the vertical starting position of light

◆ init()

virtual bool cugl::physics2::lights::Light::init ( Uint32 rays = DEFAULT_RAYS )

inlinevirtual

Initializes a new light with the given number of rays.

All attributes will have their default values. The light will be placed at the world origin, and will have the default reach. The light color will be a transluscent light grey.

The number of rays cannot be less than MIN_RAYS. More rays make the light look more realistic but will decrease performance.

Parameters

rays	The number of rays

Returns: true if initialization is successful

Reimplemented in cugl::physics2::lights::DirectionalLight.

◆ initRays()

virtual void cugl::physics2::lights::Light::initRays ( )

protectedpure virtual

Creates the ray template and associated data structures

This method should be called after any action that would alter the ray template. Such examples include changing the reach or the number of rays.

This method is specific to each light type

Implemented in cugl::physics2::lights::ChainLight, cugl::physics2::lights::ConeLight, cugl::physics2::lights::DirectionalLight, and cugl::physics2::lights::PointLight.

◆ initWithPosition()

virtual bool cugl::physics2::lights::Light::initWithPosition	(	const Vec2 &	pos,
		Uint32	rays = `DEFAULT_RAYS`
	)

inlinevirtual

Initializes a new light with the given number of rays and position

All other attributes will have their default values. The light will have the default reach. The light color will be a transluscent light grey.

The number of rays cannot be less than MIN_RAYS. More rays make the light look more realistic but will decrease performance.

Parameters

pos	The light position
rays	The number of rays

Returns: true if initialization is successful

Reimplemented in cugl::physics2::lights::DirectionalLight.

◆ initWithPositionReach()

virtual bool cugl::physics2::lights::Light::initWithPositionReach	(	const Vec2 &	pos,
		float	reach,
		Uint32	rays = `DEFAULT_RAYS`
	)

virtual

Initializes a new light with the given number of rays, position, and reach

All other attributes will have their default values. The light color will be a transluscent light grey.

The number of rays cannot be less than MIN_RAYS. More rays make the light look more realistic but will decrease performance.

Parameters

pos	The light position
reach	The light reach
rays	The number of rays

Returns: true if initialization is successful

Reimplemented in cugl::physics2::lights::DirectionalLight.

◆ initWithReach()

virtual bool cugl::physics2::lights::Light::initWithReach	(	float	reach,
		Uint32	rays = `DEFAULT_RAYS`
	)

inlinevirtual

Initializes a new light with the given number of rays and reach

All other attributes will have their default values. The light will be placed at the world origin. The light color will be a transluscent light grey.

The number of rays cannot be less than MIN_RAYS. More rays make the light look more realistic but will decrease performance.

Parameters

reach	The light reach
rays	The number of rays

Returns: true if initialization is successful

Reimplemented in cugl::physics2::lights::DirectionalLight.

◆ isActive()

bool cugl::physics2::lights::Light::isActive ( ) const

inline

Returns true if this light is active.

An enabled light will respond to calls to update and LightMap#render.

Returns: true if this light is active.

◆ isSoft()

bool cugl::physics2::lights::Light::isSoft ( ) const

inline

Returns true if the tips of the light beams are soft

This value is true by default.

Returns: true if the tips of the light beams are soft

◆ isStaticLight()

bool cugl::physics2::lights::Light::isStaticLight ( ) const

inline

Returns true if this light is static

Static lights do not get any automatic updates, but any changes to one of its parameters will update it. Static lights are useful for lights that you want to collide with static geometry but ignore all the dynamic objects. This can reduce the CPU burden of the light by about 90%.

Returns: true if this light is static

◆ isXray()

bool cugl::physics2::lights::Light::isXray ( ) const

inline

Returns true if this light beams go through obstacles

Enabling this will allow beams to go through obstacles that reduce CPU burden of light about 70%. Use the combination of x-ray and non x-ray lights wisely,

Returns: true if this light beams go through obstacles

◆ resetRays()

void cugl::physics2::lights::Light::resetRays ( )

protected

Resets the rays to the current orientation.

This extends all rays to their full lemgth. It should be called just before ray casting.

◆ setActive()

void cugl::physics2::lights::Light::setActive ( bool active )

inline

Enables/disables this light.

An enabled light will respond to calls to update() and LightMap#render.

Parameters

active Whether to enable this light

◆ setAngle()

void cugl::physics2::lights::Light::setAngle ( float angle )

inline

Sets the angle of the light in radians

For lights with direction, the angle is typically the "facing" of the light.

Parameters

angle The angle in radians

◆ setColor() [1/2]

void cugl::physics2::lights::Light::setColor ( Color4 color )

inline

Sets the light color

The RGB values set the color while the alpha value sets the intensity. Note that you can also use colorless (e.g Color4#BLACK light with shadows. By default this is a light grey color.

Note that this color will not be committed to mesh until a call to update.

Parameters

color The light color

◆ setColor() [2/2]

void cugl::physics2::lights::Light::setColor	(	float	r,
		float	g,
		float	b,
		float	a
	)

inline

Sets the light color

The RGB values set the color while the alpha value sets the intensity. Note that you can also use colorless (e.g Color4#BLACK light with shadows. By default this is a light grey color.

Note that this color will not be committed to mesh until a call to update.

Parameters

r	the red component
g	the green component
b	the blue component
a	the shadow intensity

◆ setContactFilter()

void cugl::physics2::lights::Light::setContactFilter ( const b2Filter & filter )

inline

Sets the contact filter for this light

In raycasting, this filter is combined with getGlobalContactFilter to remove any fixtures that should be ignored.

Parameters

filter The contact filter

◆ setDebug()

void cugl::physics2::lights::Light::setDebug ( bool flag )

inline

Sets whether debugging is enabled.

If this attribute is true, getDebugMesh will return a non-empty mesh for debugging.

Parameters

flag	Whether debugging should be enabled.

◆ setGamma()

void cugl::physics2::lights::Light::setGamma ( float gamma )

inline

Sets the gamma correction factor for this light.

This value is used to adjust the light color in the LightBatch#draw method.

Parameters

gamma the gamma correction factor for this light.

◆ setGlobalContactFilter()

static void cugl::physics2::lights::Light::setGlobalContactFilter ( const b2Filter & filter )

inlinestatic

Sets the contact filter for all lights.

In raycasting, this filter is combined with getContactFilter to remove any fixtures that should be ignored.

Parameters

filter The contact filter

◆ setIgnoreAttachedBody()

void cugl::physics2::lights::Light::setIgnoreAttachedBody ( bool flag )

inline

Sets if the attached body fixtures should be ignored during raycasting

If the value is true, all the fixtures of attached body will be ignored and will not create any shadows for this light. By default, this value is set to false.

Parameters

flag	Whether to ignore the attached body.

◆ setPhysicsUnits()

void cugl::physics2::lights::Light::setPhysicsUnits ( float units )

inline

Sets the physics units for this light.

Physics units are the number of pixels per box2d unit. These values are used to create the debug mesh.

Parameters

units The physics units for this light

◆ setPosition() [1/2]

void cugl::physics2::lights::Light::setPosition ( const Vec2 & position )

inline

Sets the light starting position

All positions are measured in box2d world coordinates. If this light has an attached box2d body, that body will determine this position. In particular, setting this value is only relevant if there is no attached body. Otherwise this value will be overwritten at the next call to update.

Parameters

position The light position

◆ setPosition() [2/2]

void cugl::physics2::lights::Light::setPosition	(	float	x,
		float	y
	)

inline

Sets the light starting position

All positions are measured in box2d world coordinates. If this light has an attached box2d body, that body will determine this position. In particular, setting this value is only relevant if there is no attached body. Otherwise this value will be overwritten at the next call to update.

Parameters

x	The x-coordinate of the light
y	The y-coordinate of the light

◆ setRayNum()

void cugl::physics2::lights::Light::setRayNum ( Uint32 rays )

Sets the number of rays for this light.

This is an internal method to update the associated mesh.

Parameters

rays	The number of rays for this light

◆ setReach()

void cugl::physics2::lights::Light::setReach ( float dist )

inline

Sets the light reach

The reach is the distance that the light extends from its position.

NOTE: The minimum value should be capped to 0.1f meter. In addition, this value does not include any gamma correction.

Parameters

dist	The light reach

◆ setSoft()

void cugl::physics2::lights::Light::setSoft ( bool soft )

inline

Enables/disables softness on tips of the light beams

This value is true by default.

Parameters

soft	Whether to enable soft tips

◆ setSoftness()

void cugl::physics2::lights::Light::setSoftness ( float factor )

inline

Sets the softness value for the beam tips.

This value is multiplied by the reach of the light to get the length of the soft shadows. The default value is 0.1f

Parameters

factor The softness value for the beam tips.

◆ setStaticLight()

void cugl::physics2::lights::Light::setStaticLight ( bool staticLight )

inline

Enables/disables light static behavior

Static lights do not get any automatic updates, but any changes to one of its parameters will update it. Static lights are useful for lights that you want to collide with static geometry but ignore all the dynamic objects. This can reduce the CPU burden of the light by about 90%.

Parameters

staticLight Whether to make this light static

◆ setXray()

void cugl::physics2::lights::Light::setXray ( bool xray )

inline

Enables/disables x-ray beams for this light

Enabling this will allow beams to go through obstacles that reduce CPU burden of light about 70%. Use the combination of x-ray and non x-ray lights wisely,

Parameters

xray	Whether to enable x-ray beams

◆ update()

void cugl::physics2::lights::Light::update	(	b2World *	world,
		const Rect &	bounds
	)

Updates this light according to box2d.

The bounds are used for culling. Rays outside of the bounds are not processed and are set to 0.

Parameters

world	The box2d world
bounds	The world bounds

◆ updateMesh()

virtual void cugl::physics2::lights::Light::updateMesh ( )

protectedpure virtual

Updates the mesh(es) associated with this light.

This will always update the light mesh. It will only update the debug mesh if getDebug is true.

Implemented in cugl::physics2::lights::ChainLight, cugl::physics2::lights::ConeLight, cugl::physics2::lights::DirectionalLight, and cugl::physics2::lights::PointLight.

Member Data Documentation

◆ _active

bool cugl::physics2::lights::Light::_active

protected

Whether this light is active (inactive lights do not update or render)

◆ _angle

float cugl::physics2::lights::Light::_angle

protected

The current light angle in radians

◆ _body

b2Body* cugl::physics2::lights::Light::_body

protected

The attached body (if any)

◆ _bodyAngle

float cugl::physics2::lights::Light::_bodyAngle

protected

The angle offset of the light from the body

◆ _bodyOffset

Vec2 cugl::physics2::lights::Light::_bodyOffset

protected

The positional offset from the body

◆ _color

Color4 cugl::physics2::lights::Light::_color

protected

The light color

◆ _contactFilter

b2Filter cugl::physics2::lights::Light::_contactFilter

protected

The light specific filter

◆ _debug

bool cugl::physics2::lights::Light::_debug

protected

Whether to compute the debug mesh

◆ _debugMesh

graphics::Mesh<graphics::SpriteVertex> cugl::physics2::lights::Light::_debugMesh

protected

The mesh for debugging (generated on demand)

◆ _directions

std::vector<Vec2> cugl::physics2::lights::Light::_directions

protected

The normalized direction of each ray

◆ _dirty

bool cugl::physics2::lights::Light::_dirty

protected

Whether this light requires an update

◆ _endPoints

std::vector<Vec2> cugl::physics2::lights::Light::_endPoints

protected

The current ray endpoints

◆ _fractions

std::vector<float> cugl::physics2::lights::Light::_fractions

protected

The fraction of each ray that is illuminated

◆ _gamma

float cugl::physics2::lights::Light::_gamma

protected

The gamma correction factor

◆ _globalFilter

b2Filter cugl::physics2::lights::Light::_globalFilter

staticprotected

The global filter for all lights

◆ _ignoreBody

bool cugl::physics2::lights::Light::_ignoreBody

protected

Whether this light ignores the fixtures of the attached body

◆ _lightMesh

graphics::Mesh<LightVertex> cugl::physics2::lights::Light::_lightMesh

protected

The mesh for rendering the light

◆ _lightRays

std::vector<Vec2> cugl::physics2::lights::Light::_lightRays

protected

The unmodified light rays for this light

◆ _position

Vec2 cugl::physics2::lights::Light::_position

protected

The current light position

◆ _raycast

LightRaycast cugl::physics2::lights::Light::_raycast

protected

The raycasting function for this light

◆ _rayNum

Uint32 cugl::physics2::lights::Light::_rayNum

protected

The number of light rays

◆ _reach

float cugl::physics2::lights::Light::_reach

protected

The light reach (e.g. how far the light extends)

◆ _shadowFactor

float cugl::physics2::lights::Light::_shadowFactor

protected

The percentage of the reach to make as soft shadows

◆ _soft

bool cugl::physics2::lights::Light::_soft

protected

Whether this light has soft tips

◆ _staticLight

bool cugl::physics2::lights::Light::_staticLight

protected

Whether this light ignores dynamic game elements

◆ _units

float cugl::physics2::lights::Light::_units

protected

The physics units for this light

◆ _xray

bool cugl::physics2::lights::Light::_xray

protected

Whether this light shines through obstacles

◆ DEFAULT_RAYS

int cugl::physics2::lights::Light::DEFAULT_RAYS

static

The default number of rays to use

◆ DEFAULT_REACH

float cugl::physics2::lights::Light::DEFAULT_REACH

static

The default reach for a light (in box2d units)

◆ DEFAULT_SOFTNESS

float cugl::physics2::lights::Light::DEFAULT_SOFTNESS

static

The default shadow softness (in box2d units)

◆ MIN_RAYS

const int cugl::physics2::lights::Light::MIN_RAYS

static

The minimum supported number of rays

The documentation for this class was generated from the following file:

/Users/wmwhite/Developer/CUGL/include/cugl/physics2/lights/CULight.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Light()

◆ ~Light()

Member Function Documentation

◆ attachBody() [1/3]

◆ attachBody() [2/3]

◆ attachBody() [3/3]

◆ contains() [1/2]

◆ contains() [2/2]

◆ detachWorld()

◆ dispose()

◆ doesIgnoreAttachedBody()

◆ filters()

◆ getAngle()

◆ getColor()

◆ getContactFilter()

◆ getDebug()

◆ getDebugMesh()

◆ getGamma()

◆ getGlobalContactFilter()

◆ getGraphicsTransform()

◆ getLightMesh()

◆ getPhysicsUnits()

◆ getPosition()

◆ getRayNum()

◆ getReach()

◆ getSoftness()

◆ getX()

◆ getY()

◆ init()

◆ initRays()

◆ initWithPosition()

◆ initWithPositionReach()

◆ initWithReach()

◆ isActive()

◆ isSoft()

◆ isStaticLight()

◆ isXray()

◆ resetRays()

◆ setActive()

◆ setAngle()

◆ setColor() [1/2]

◆ setColor() [2/2]

◆ setContactFilter()

◆ setDebug()

◆ setGamma()

◆ setGlobalContactFilter()

◆ setIgnoreAttachedBody()

◆ setPhysicsUnits()

◆ setPosition() [1/2]

◆ setPosition() [2/2]

◆ setRayNum()

◆ setReach()

◆ setSoft()

◆ setSoftness()

◆ setStaticLight()

◆ setXray()

◆ update()

◆ updateMesh()

Member Data Documentation

◆ _active

◆ _angle

◆ _body

◆ _bodyAngle

◆ _bodyOffset

◆ _color

◆ _contactFilter

◆ _debug

◆ _debugMesh

◆ _directions

◆ _dirty

◆ _endPoints

◆ _fractions
