Securing and Hardening the Horus System

A joint project by researchers in the Horus and Nuprl projects at Cornell University and the Transis project at Hebrew University in Jerusalem.

Overview

Horus is an adaptable, multi-purpose group communication toolkit for building secure, fault-tolerant applications. Horus has a modular, ``LEGO-like'' architecture in which tiny protocol layers are composed at run-time into protocol stacks with rich sets of properties. Horus currently includes about forty protocols that can be composed in a large number of combinations with varying properties and performance characteristics.

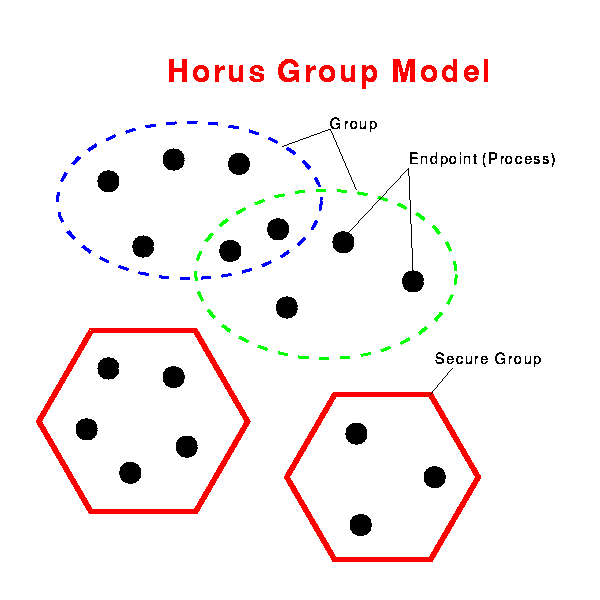

• See diagram of Horus's group architecture (8K GIF image).

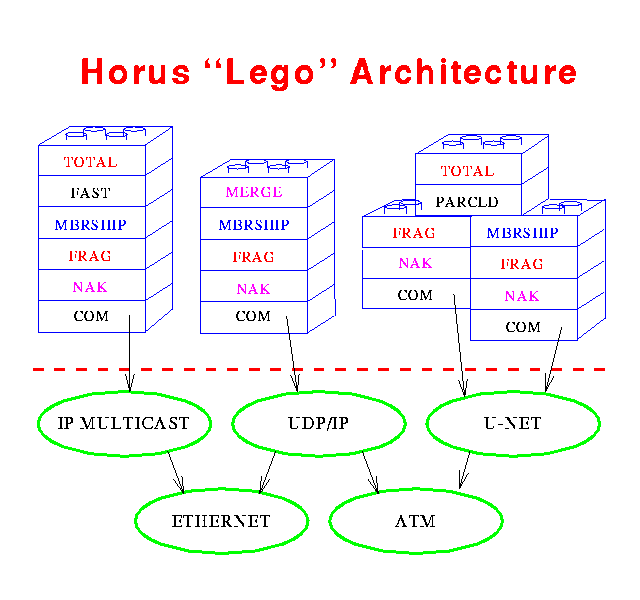

• See diagram of layered communication protocols in Horus (12K GIF image).

Security Infrastructure

We are extending Horus's flexible communication architecture with protocols to implement a multi-level security architecture. In this architecture, applications will be made secure by inserting standard protocol layers into their communication stacks. Much of this work involves incorporating previous security research into the Horus framework, but we are also developing new protocols and techniques through our collaboration with Hebrew University of Jerusalem

• See detailed plans for the Horus security infrastructure.

Validating the Horus Protocols

An important part of the Horus effort is validating the correctness of both security and fault-tolerance protocols. Our methodology for validating the Horus protocols involves the following steps:

1. A ``reference implementation'' of our system is built in the ML programming language. This implementation compiles into a C ``production implementation.''
2. The Horus protocols are specified in a temporal logic.
3. The small (around 200 lines) ML protocol layers are imported directly into the Nuprl Proof Development System and formally verified.

• See detailed plans for the validation of Horus.

Timeline

The schedule for this project runs from September 1995 to September 1998.

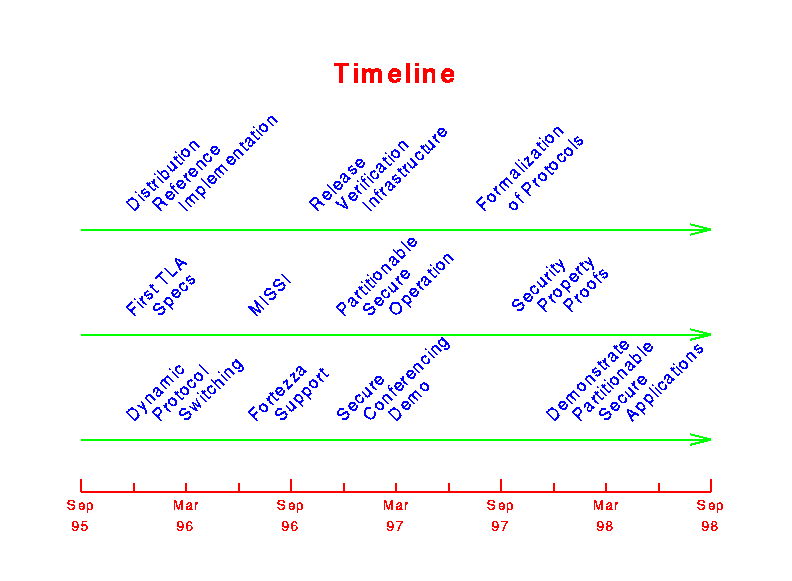

• See diagram of the timeline for this project (9K GIF image).

Contact:

• Kenneth P. Birman at Cornell (Horus).
• Robbert van Renesse at Cornell (Horus).
• Danny Dolev at the Hebrew University (Transis).
• Robert L. Constable at Cornell (Nuprl).
