#include <CUTexturedNode.h>

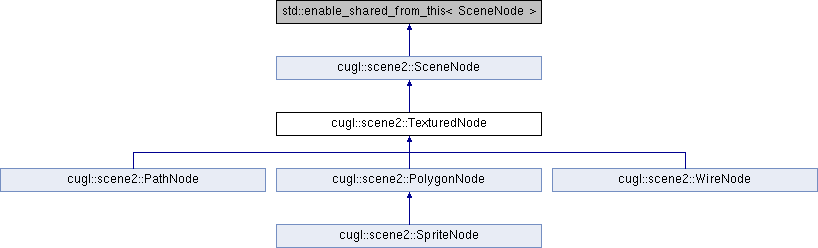

Inheritance diagram for cugl::scene2::TexturedNode:

Public Member Functions
	TexturedNode ()

	~TexturedNode ()

virtual void	dispose () override

virtual bool	init () override

virtual bool	initWithFile (const std::string &filename)

virtual bool	initWithTexture (const std::shared_ptr< Texture > &texture)

virtual bool	initWithData (const Scene2Loader *loader, const std::shared_ptr< JsonValue > &data) override

virtual std::shared_ptr< SceneNode >	copy (const std::shared_ptr< SceneNode > &dst) const override

void	setTexture (const std::string &filename)

void	setTexture (const std::shared_ptr< Texture > &texture)

std::shared_ptr< Texture > &	getTexture ()

const std::shared_ptr< Texture > &	getTexture () const

const std::shared_ptr< Gradient > &	getGradient () const

void	setGradient (const std::shared_ptr< Gradient > &gradient)

void	shiftTexture (float dx, float dy)

void	setBlendFunc (GLenum srcFactor, GLenum dstFactor)

GLenum	getSourceBlendFactor () const

GLenum	getDestinationBlendFactor () const

void	setBlendEquation (GLenum equation)

GLenum	getBlendEquation () const

void	flipHorizontal (bool flag)

bool	isFlipHorizontal () const

void	flipVertical (bool flag)

bool	isFlipVertical () const

virtual std::string	toString (bool verbose=false) const override

bool	isAbsolute () const

void	setAbsolute (bool flag)

virtual void	setAnchor (const Vec2 anchor) override

virtual void	setAnchor (float x, float y) override

virtual void	setContentSize (const Size size) override

virtual void	setContentSize (float width, float height) override

virtual void	draw (const std::shared_ptr< SpriteBatch > &batch, const Affine2 &transform, Color4 tint) override=0

void	refresh ()

Public Member Functions inherited from cugl::scene2::SceneNode
	SceneNode ()

	~SceneNode ()

virtual bool	initWithPosition (const Vec2 pos)

bool	initWithPosition (float x, float y)

virtual bool	initWithBounds (const Size size)

virtual bool	initWithBounds (float width, float height)

virtual bool	initWithBounds (const Rect rect)

virtual bool	initWithBounds (float x, float y, float width, float height)

unsigned int	getTag () const

void	setTag (unsigned int tag)

const std::string	getName () const

void	setName (const std::string name)

const std::string	getClassName () const

	operator std::string () const

const Vec2	getPosition () const

void	setPosition (const Vec2 &position)

void	setPosition (float x, float y)

float	getPositionX (void) const

void	setPositionX (float x)

float	getPositionY (void) const

void	setPositionY (float y)

Vec2	getWorldPosition () const

const Size	getContentSize () const

float	getContentWidth () const

void	setContentWidth (float width)

float	getContentHeight () const

void	setContentHeight (float height)

virtual Rect	getLayoutBounds () const

Size	getSize () const

float	getWidth () const

float	getHeight () const

Rect	getBoundingBox () const

const Vec2	getAnchor () const

Vec2	getAnchorInPixels ()

Color4	getColor () const

virtual void	setColor (Color4 color)

Color4	getAbsoluteColor ()

bool	isVisible () const

void	setVisible (bool visible)

bool	hasRelativeColor () const

void	setRelativeColor (bool flag)

std::shared_ptr< Scissor >	getScissor () const

void	setScissor (const std::shared_ptr< Scissor > &scissor)

void	setScissor ()

const Vec2	getScale () const

float	getScaleX () const

float	getScaleY () const

void	setScale (float scale)

void	setScale (const Vec2 vec)

void	setScale (float sx, float sy)

float	getAngle ()

void	setAngle (float angle)

const Affine2 &	getTransform () const

const Affine2 &	getAlternateTransform () const

void	setAlternateTransform (const Affine2 &transform)

bool	withAlternateTransform ()

void	chooseAlternateTransform (bool active)

const Affine2 &	getNodeToParentTransform () const

Affine2	getParentToNodeTransform () const

Affine2	getNodeToWorldTransform () const

Affine2	getWorldToNodeTransform () const

Vec2	screenToNodeCoords (const Vec2 screenPoint) const

Vec2	worldToNodeCoords (const Vec2 worldPoint) const

Vec2	nodeToScreenCoords (const Vec2 nodePoint) const

Vec2	nodeToWorldCoords (const Vec2 nodePoint) const

Vec2	parentToNodeCoords (const Vec2 parentPoint) const

Vec2	nodeToParentCoords (const Vec2 nodePoint) const

size_t	getChildCount () const

std::shared_ptr< SceneNode >	getChild (unsigned int pos)

const std::shared_ptr< SceneNode > &	getChild (unsigned int pos) const

template<typename T >
std::shared_ptr< T >	getChild (unsigned int pos) const

std::shared_ptr< SceneNode >	getChildByTag (unsigned int tag) const

template<typename T >
std::shared_ptr< T >	getChildByTag (unsigned int tag) const

std::shared_ptr< SceneNode >	getChildByName (const std::string name) const

template<typename T >
std::shared_ptr< T >	getChildByName (const std::string name) const

std::vector< std::shared_ptr< SceneNode > >	getChildren ()

const std::vector< std::shared_ptr< SceneNode > > &	getChildren () const

void	addChild (const std::shared_ptr< SceneNode > &child)

void	addChildWithTag (const std::shared_ptr< SceneNode > &child, unsigned int tag)

void	addChildWithName (const std::shared_ptr< SceneNode > &child, const std::string name)

void	swapChild (const std::shared_ptr< SceneNode > &child1, const std::shared_ptr< SceneNode > &child2, bool inherit=false)

SceneNode *	getParent ()

const SceneNode *	getParent () const

Scene2 *	getScene ()

const Scene2 *	getScene () const

void	removeFromParent ()

virtual void	removeChild (unsigned int pos)

void	removeChild (const std::shared_ptr< SceneNode > &child)

void	removeChildByTag (unsigned int tag)

void	removeChildByName (const std::string name)

virtual void	removeAllChildren ()

void	setPriority (float priority)

float	getPriority ()

virtual void	render (const std::shared_ptr< SpriteBatch > &batch, const Affine2 &transform, Color4 tint)

virtual void	render (const std::shared_ptr< SpriteBatch > &batch)

const std::shared_ptr< Layout > &	getLayout () const

void	setLayout (const std::shared_ptr< Layout > &layout)

virtual void	doLayout ()

Protected Member Functions
virtual void	generateRenderData ()=0

virtual void	updateTextureCoords ()=0

void	clearRenderData ()

	CU_DISALLOW_COPY_AND_ASSIGN (TexturedNode)

Protected Attributes
std::shared_ptr< Texture >	_texture

std::shared_ptr< Gradient >	_gradient

bool	_absolute

Vec2	_offset

bool	_rendered

Mesh< SpriteVertex2 >	_mesh

GLenum	_blendEquation

GLenum	_srcFactor

GLenum	_dstFactor

bool	_flipHorizontal

bool	_flipVertical

Protected Attributes inherited from cugl::scene2::SceneNode
Vec2	_position

Vec2	_anchor

Size	_contentSize

Color4	_tintColor

bool	_hasParentColor

bool	_isVisible

std::shared_ptr< Scissor >	_scissor

Vec2	_scale

float	_angle

Affine2	_transform

bool	_useTransform

Affine2	_combined

std::vector< std::shared_ptr< SceneNode > >	_children

SceneNode *	_parent

Scene2 *	_graph

std::shared_ptr< Layout >	_layout

int	_childOffset

unsigned int	_tag

std::string	_name

size_t	_hashOfName

std::string	_classname

float	_priority

std::shared_ptr< JsonValue >	_json

Additional Inherited Members
Static Public Member Functions inherited from cugl::scene2::SceneNode
static std::shared_ptr< SceneNode >	alloc ()

static std::shared_ptr< SceneNode >	allocWithPosition (const Vec2 pos)

static std::shared_ptr< SceneNode >	allocWithPosition (float x, float y)

static std::shared_ptr< SceneNode >	allocWithBounds (const Size size)

static std::shared_ptr< SceneNode >	allocWithBounds (float width, float height)

static std::shared_ptr< SceneNode >	allocWithBounds (const Rect rect)

static std::shared_ptr< SceneNode >	allocWithBounds (float x, float y, float width, float height)

static std::shared_ptr< SceneNode >	allocWithData (const Scene2Loader *loader, const std::shared_ptr< JsonValue > &data)

Detailed Description

This class is an abstract scene graph node representing a textured shape.

This class cannot be instantiated directly. Instead, you must use one of the subclasses: PolygonNode, SpriteNode, PathNode, or WireNode.

This abstract class only manages texture. It has no shape. The shape/mesh of a textured node is determined by the appropriate subclass. However, for all subclasses, the shape is always specified in image coordinates. Image coordinates are different from texture coordinates. Their origin is at the bottom-left corner of the file, and each pixel is one unit. This design choice is intended to make irregular shapes easier to use.

This means that a solid polygon with vertices (0,0), (width,0), (width,height), and (0,height) would be identical to a sprite node. However, a solid polygon with vertices (0,0), (2*width,0), (2*width,2*height), and (0,2*height) would tile the sprite (given the wrap settings) twice both horizontally and vertically.

The content size of this node is defined by the size (but not the offset) of the bounding box. The anchor point is relative to this content size. The default anchor point in a TexturedNode is (0.5, 0.5). This means that a uniform translation of the the underlying shape (in contrast to the node itself) will not move the node on the the screen. Instead, it will just change the part of the texture it uses.

For example, suppose the texture has given width and height. We have one polygon with vertices (0,0), (width/2,0), (width/2,height/2), and (0,height/2). We have another polygon with vertices (width/2,height/2), (width,height/2), (width,height), and (width/2,height). Both polygons would create a rectangle of size (width/2,height/2). centered at the node position. However, the first would use the bottom left part of the texture, while the second would use the top right.

You can disable these features at any time by setting the attribute absolute to true. Do this will place the polygon vertices in their absolute positions in Node space. This will also disable anchor functions (setting the anchor as the bottom left corner), since anchors do not make sense when we are drawing vertices directly into the coordinate space.

Constructor & Destructor Documentation

◆ TexturedNode()

cugl::scene2::TexturedNode::TexturedNode ( )

Creates an empty scene graph node with the degenerate texture.

This constructor should never be called directly, as this is an abstract class.

◆ ~TexturedNode()

cugl::scene2::TexturedNode::~TexturedNode ( )

inline

Deletes this node, releasing all resources.

Member Function Documentation

◆ clearRenderData()

void cugl::scene2::TexturedNode::clearRenderData ( )

protected

Clears the render data, releasing all vertices and indices.

◆ copy()

virtual std::shared_ptr<SceneNode> cugl::scene2::TexturedNode::copy ( const std::shared_ptr< SceneNode > & dst ) const

overridevirtual

Performs a shallow copy of this Node into dst.

No children from this node are copied, and no children of dst are modified. In addition, the parents of both Nodes are unchanged. However, all other attributes of this node are copied.

Parameters

dst	The Node to copy into

Returns: A reference to dst for chaining.

Reimplemented from cugl::scene2::SceneNode.

Reimplemented in cugl::scene2::PolygonNode, cugl::scene2::WireNode, cugl::scene2::PathNode, and cugl::scene2::SpriteNode.

◆ CU_DISALLOW_COPY_AND_ASSIGN()

cugl::scene2::TexturedNode::CU_DISALLOW_COPY_AND_ASSIGN ( TexturedNode )

protected

This macro disables the copy constructor (not allowed on scene graphs)

◆ dispose()

virtual void cugl::scene2::TexturedNode::dispose ( )

overridevirtual

Disposes all of the resources used by this node.

A disposed Node can be safely reinitialized. Any children owned by this node will be released. They will be deleted if no other object owns them.

It is unsafe to call this on a Node that is still currently inside of a scene graph.

Reimplemented from cugl::scene2::SceneNode.

◆ draw()

virtual void cugl::scene2::TexturedNode::draw	(	const std::shared_ptr< SpriteBatch > &	batch,
		const Affine2 &	transform,
		Color4	tint
	)

overridepure virtual

Draws this Node via the given SpriteBatch.

This method only worries about drawing the current node. It does not attempt to render the children.

This is the method that you should override to implement your custom drawing code. You are welcome to use any OpenGL commands that you wish. You can even skip use of the SpriteBatch. However, if you do so, you must flush the SpriteBatch by calling end() at the start of the method. in addition, you should remember to call begin() at the start of the method.

This method provides the correct transformation matrix and tint color. You do not need to worry about whether the node uses relative color. This method is called by render() and these values are guaranteed to be correct. In addition, this method does not need to check for visibility, as it is guaranteed to only be called when the node is visible.

Parameters

batch	The SpriteBatch to draw with.
transform	The global transformation matrix.
tint	The tint to blend with the Node color.

Reimplemented from cugl::scene2::SceneNode.

Implemented in cugl::scene2::WireNode, cugl::scene2::PathNode, and cugl::scene2::PolygonNode.

◆ flipHorizontal()

void cugl::scene2::TexturedNode::flipHorizontal ( bool flag )

inline

Flips the texture coordinates horizontally if flag is true.

Flipping the texture coordinates replaces each u coordinate with 1-u. Hence this operation is defined even if the texture coordinates are outside the range 0..1.

Parameters

flag	whether to flip the coordinates horizontally

◆ flipVertical()

void cugl::scene2::TexturedNode::flipVertical ( bool flag )

inline

Flips the texture coordinates vertically if flag is true.

Flipping the texture coordinates replaces each v coordinate with 1-v. Hence this operation is defined even if the texture coordinates are outside the range 0..1.

Parameters

flag	whether to flip the coordinates vertically

◆ generateRenderData()

virtual void cugl::scene2::TexturedNode::generateRenderData ( )

protectedpure virtual

Allocates the render data necessary to render this node.

◆ getBlendEquation()

GLenum cugl::scene2::TexturedNode::getBlendEquation ( ) const

inline

Returns the blending equation for this textured node

By default this value is GL_FUNC_ADD. For other options, see

 https://www.opengl.org/sdk/docs/man/html/glBlendEquation.xhtml

This blending equation only affects the texture of the current node. It does not affect any children of the node.

Returns: the blending equation for this sprite batch

◆ getDestinationBlendFactor()

GLenum cugl::scene2::TexturedNode::getDestinationBlendFactor ( ) const

inline

Returns the destination blending factor

By default this value is GL_ONE_MINUS_SRC_ALPHA. For other options, see

 https://www.opengl.org/sdk/docs/man/html/glBlendFunc.xhtml

This blending factor only affects the texture of the current node. It does not affect any children of the node.

Returns: the destination blending factor

◆ getGradient()

const std::shared_ptr<Gradient>& cugl::scene2::TexturedNode::getGradient ( ) const

inline

Returns the gradient to use for this node.

Unlike colors, gradients are local. They do not apply to the children of this node. Gradients are independent of textures; a texture node may have both a gradient and a texture.

Returns: the gradient to use for this node.

◆ getSourceBlendFactor()

GLenum cugl::scene2::TexturedNode::getSourceBlendFactor ( ) const

inline

Returns the source blending factor

By default this value is GL_SRC_ALPHA. For other options, see

 https://www.opengl.org/sdk/docs/man/html/glBlendFunc.xhtml

This blending factor only affects the texture of the current node. It does not affect any children of the node.

Returns: the source blending factor

◆ getTexture() [1/2]

std::shared_ptr<Texture>& cugl::scene2::TexturedNode::getTexture ( )

inline

Returns the texture used by this node.

Returns: the texture used by this node

◆ getTexture() [2/2]

const std::shared_ptr<Texture>& cugl::scene2::TexturedNode::getTexture ( ) const

inline

Returns the texture used by this node.

Returns: the texture used by this node

◆ init()

virtual bool cugl::scene2::TexturedNode::init ( )

inlineoverridevirtual

Intializes a scene graph node with the degenerate texture.

This will make the texture be Texture#getBlank, which is suitable for drawing solid shapes. However, this is an abstract class, so it will not apply any geometry to the texture. You will need to use one of the appropriate subclasses.

Returns: true if the sprite is initialized properly, false otherwise.

Reimplemented from cugl::scene2::SceneNode.

◆ initWithData()

virtual bool cugl::scene2::TexturedNode::initWithData	(	const Scene2Loader *	loader,
		const std::shared_ptr< JsonValue > &	data
	)

overridevirtual

Initializes a node with the given JSON specificaton.

This initializer is designed to receive the "data" object from the JSON passed to Scene2Loader. This JSON format supports all of the attribute values of its parent class. In addition, it supports the following additional attribute:

 "texture":  A string with the name of a previously loaded texture asset
 "gradient": A JSON object defining a gradient. See {@link Gradient}.
 "absolute": A boolean indicating whether to use absolute coordinates
 "blendeq":  A string matching a valid OpenGL blending equation.
             See glBlendEquation in the OpenGL documentation.
 "blendsrc": A string mathcing a valid OpenGL blending function. See
             glBlendFunc in the OpenGL documentation.
 "blenddst": A string mathcing a valid OpenGL blending function. See
             glBlendFunc in the OpenGL documentation.
 "flip":     One of "horizontal", "vertical", "both", or "none".

All attributes are optional. If the texture is missing, this node will use Texture#getBlank instead, which is suitable for drawing solid shapes.

Note that this is an abstract class, so it will not apply any geometry to the texture. You will need to use one of the appropriate subclasses.

Parameters

loader	The scene loader passing this JSON file
data	The JSON object specifying the node

Returns: true if initialization was successful.

Reimplemented from cugl::scene2::SceneNode.

Reimplemented in cugl::scene2::PolygonNode, cugl::scene2::WireNode, cugl::scene2::PathNode, and cugl::scene2::SpriteNode.

◆ initWithFile()

virtual bool cugl::scene2::TexturedNode::initWithFile ( const std::string & filename )

virtual

Intializes a scene graph node with the image filename.

This method will fail if the file does not exist or is not a valid image file. Even if the texture is successfully loaded, this is an an abstract class, so it will not apply any geometry to the texture. You will need to use one of the appropriate subclasses.

Parameters

filename A path to image file, e.g., "scene1/earthtile.png"

Returns: true if the sprite is initialized properly, false otherwise.

Reimplemented in cugl::scene2::PolygonNode.

◆ initWithTexture()

virtual bool cugl::scene2::TexturedNode::initWithTexture ( const std::shared_ptr< Texture > & texture )

virtual

Initializes a textured polygon from a Texture object.

If the texture is null, this node will use Texture#getBlank instead, which is suitable for drawing solid shapes. Regardless, this is an abstract class, so it will not apply any geometry to the texture. You will need to use one of the appropriate subclasses.

Parameters

texture A shared pointer to a Texture object.

Returns: true if the sprite is initialized properly, false otherwise.

Reimplemented in cugl::scene2::PolygonNode.

◆ isAbsolute()

bool cugl::scene2::TexturedNode::isAbsolute ( ) const

inline

Returns true if this node is using absolute positioning.

In absolute positioning, the vertices are draw in their correct position with respect to the node origin. We no longer try to offset the polygon with respect to the anchors. This is useful when you need a scene graph node that has an external relationship to a non-child node.

Setting this value to true will disable anchor functions (and set the anchor to the bottom left). That is because anchors do not make sense when we are using absolute positioning.

Returns: true if this node is using absolute positioning.

◆ isFlipHorizontal()

bool cugl::scene2::TexturedNode::isFlipHorizontal ( ) const

inline

Returns true if the texture coordinates are flipped horizontally.

Returns: true if the texture coordinates are flipped horizontally.

◆ isFlipVertical()

bool cugl::scene2::TexturedNode::isFlipVertical ( ) const

inline

Returns true if the texture coordinates are flipped vertically.

Returns: true if the texture coordinates are flipped vertically.

◆ refresh()

void cugl::scene2::TexturedNode::refresh ( )

inline

Refreshes this node to restore the render data.

◆ setAbsolute()

void cugl::scene2::TexturedNode::setAbsolute ( bool flag )

inline

Sets whether this node is using absolute positioning.

In absolute positioning, the vertices are draw in their correct position with respect to the node origin. We no longer try to offset the polygon with respect to the anchors. This is useful when you need a scene graph node that has an external relationship to a non-child node.

Setting this value to true will disable anchor functions (and set the anchor to the bottom left). That is because anchors do not make sense when we are using absolute positioning.

Parameters

flag	Whether if this node is using absolute positioning.

◆ setAnchor() [1/2]

virtual void cugl::scene2::TexturedNode::setAnchor ( const Vec2 anchor )

inlineoverridevirtual

Sets the anchor point in percentages.

The anchor point defines the relative origin of Node with respect to its parent. It is a "pin" where the Node is attached to its parent. In effect, the translation of a Node is defined by its position plus anchor point.

The anchorPoint is normalized, like a percentage. (0,0) means the bottom-left corner and (1,1) means the top-right corner. There are many anchor point constants defined in Vec2. However, there is nothing preventing an anchor point higher than (1,1) or lower than (0,0).

The default anchorPoint is (0.5,0.5), so it starts in the center of the node. Changing the anchor will not move the contents of the node in the parent space, but it will change the value of the Node position.

This function is disabled if the node is using absolute positioning. That is because anchors do not make sense when we are drawing polygons directly to the screen.

Parameters

anchor The anchor point of node.

Reimplemented from cugl::scene2::SceneNode.

◆ setAnchor() [2/2]

virtual void cugl::scene2::TexturedNode::setAnchor	(	float	x,
		float	y
	)

inlineoverridevirtual

Sets the anchor point in percentages.

The anchor point defines the relative origin of Node with respect to its parent. It is a "pin" where the Node is attached to its parent. In effect, the translation of a Node is defined by its position plus anchor point.

The anchorPoint is normalized, like a percentage. (0,0) means the bottom-left corner and (1,1) means the top-right corner. There are many anchor point constants defined in Vec2. However, there is nothing preventing an anchor point higher than (1,1) or lower than (0,0).

The default anchorPoint is (0.5,0.5), so it starts in the center of the node. Changing the anchor will not move the contents of the node in the parent space, but it will change the value of the Node position.

This function is disabled if the node is using absolute positioning. That is because anchors do not make sense when we are drawing polygons directly to the screen.

Parameters

x	The horizontal anchor percentage.
y	The vertical anchor percentage.

Reimplemented from cugl::scene2::SceneNode.

◆ setBlendEquation()

void cugl::scene2::TexturedNode::setBlendEquation ( GLenum equation )

inline

Sets the blending equation for this textured node

The enum must be a standard ones supported by OpenGL. See

 https://www.opengl.org/sdk/docs/man/html/glBlendEquation.xhtml

However, this setter does not do any error checking to verify that the input is valid. By default, the equation is GL_FUNC_ADD.

This blending equation only affects the texture of the current node. It does not affect any children of the node.

Parameters

equation Specifies how source and destination colors are combined

◆ setBlendFunc()

void cugl::scene2::TexturedNode::setBlendFunc	(	GLenum	srcFactor,
		GLenum	dstFactor
	)

inline

Sets the blending function for this texture node.

The enums are the standard ones supported by OpenGL. See

 https://www.opengl.org/sdk/docs/man/html/glBlendFunc.xhtml

However, this setter does not do any error checking to verify that the enums are valid. By default, srcFactor is GL_SRC_ALPHA while dstFactor is GL_ONE_MINUS_SRC_ALPHA. This corresponds to non-premultiplied alpha blending.

This blending factor only affects the texture of the current node. It does not affect any children of the node.

Parameters

srcFactor	Specifies how the source blending factors are computed
dstFactor	Specifies how the destination blending factors are computed.

◆ setContentSize() [1/2]

virtual void cugl::scene2::TexturedNode::setContentSize ( const Size size )

overridevirtual

Sets the untransformed size of the node.

The content size remains the same no matter how the node is scaled or rotated. All nodes must have a size, though it may be degenerate (0,0).

By default, the content size of a TexturedNode is the size of the bounding box of the defining polygon. Resizing a texture node will stretch the image to fill in the new size.

Parameters

size	The untransformed size of the node.

Reimplemented from cugl::scene2::SceneNode.

◆ setContentSize() [2/2]

virtual void cugl::scene2::TexturedNode::setContentSize	(	float	width,
		float	height
	)

inlineoverridevirtual

Sets the untransformed size of the node.

The content size remains the same no matter how the node is scaled or rotated. All nodes must have a size, though it may be degenerate (0,0).

By default, the content size of a TexturedNode is the size of the bounding box of the defining polygon. Resizing a texture node will stretch the image to fill in the new size.

Parameters

width	The untransformed width of the node.
height	The untransformed height of the node.

Reimplemented from cugl::scene2::SceneNode.

◆ setGradient()

void cugl::scene2::TexturedNode::setGradient ( const std::shared_ptr< Gradient > & gradient )

Sets the gradient to use for this node.

Unlike colors, gradients are local. They do not apply to the children of this node. Gradients are independent of textures; a texture node may have both a gradient and a texture.

Parameters

gradient The gradient to use for this node.

◆ setTexture() [1/2]

void cugl::scene2::TexturedNode::setTexture ( const std::shared_ptr< Texture > & texture )

Sets the node texture to the one specified.

This method will have no effect on the underlying geometry. This class decouples the geometry from the texture. That is because we do not expect the vertices to match the texture perfectly.

Parameters

texture A shared pointer to a Texture object.

◆ setTexture() [2/2]

void cugl::scene2::TexturedNode::setTexture ( const std::string & filename )

inline

Sets the node texture to a new one allocated from a filename.

This method will have no effect on the underlying geometry. This class decouples the geometry from the texture. That is because we do not expect the vertices to match the texture perfectly.

Parameters

filename A path to image file, e.g., "scene1/earthtile.png"

◆ shiftTexture()

void cugl::scene2::TexturedNode::shiftTexture	(	float	dx,
		float	dy
	)

Translates the texture image by the given amount.

This method has no effect on the shape or position of the node. It simply shifts the texture coordinates of the underlying mesh by the given amount (measured in pixels). Hence this method can be used for animation and filmstrips. This method is faster than redefining the shape.

If the node has a gradient, this will shift the gradient image by the same amount.

Parameters

dx	The amount to shift horizontally.
dy	The amount to shift horizontally.

◆ toString()

virtual std::string cugl::scene2::TexturedNode::toString ( bool verbose = false ) const

overridevirtual

Returns a string representation of this node for debugging purposes.

If verbose is true, the string will include class information. This allows us to unambiguously identify the class.

Parameters

verbose Whether to include class information

Returns: a string representation of this node for debuggging purposes.

Reimplemented from cugl::scene2::SceneNode.

◆ updateTextureCoords()

virtual void cugl::scene2::TexturedNode::updateTextureCoords ( )

protectedpure virtual

Updates the texture coordinates for this polygon

The texture coordinates are computed assuming that the polygon is defined in image space, with the origin in the bottom left corner of the texture.

Member Data Documentation

◆ _absolute

bool cugl::scene2::TexturedNode::_absolute

protected

Whether to disable anchors and draw the underlying shape in absolute coordinates

◆ _blendEquation

GLenum cugl::scene2::TexturedNode::_blendEquation

protected

The blending equation for this texture

◆ _dstFactor

GLenum cugl::scene2::TexturedNode::_dstFactor

protected

The destination factor for the blend function

◆ _flipHorizontal

bool cugl::scene2::TexturedNode::_flipHorizontal

protected

Whether or not to flip the texture horizontally

◆ _flipVertical

bool cugl::scene2::TexturedNode::_flipVertical

protected

Whether or not to flip the texture vertically

◆ _gradient

std::shared_ptr<Gradient> cugl::scene2::TexturedNode::_gradient

protected

The gradient to use for this node

◆ _mesh

Mesh<SpriteVertex2> cugl::scene2::TexturedNode::_mesh

protected

The render data for this node

◆ _offset

Vec2 cugl::scene2::TexturedNode::_offset

protected

Texture offset to for shifting the image

◆ _rendered

bool cugl::scene2::TexturedNode::_rendered

protected

Whether we have generated render data for this node

◆ _srcFactor

GLenum cugl::scene2::TexturedNode::_srcFactor

protected

The source factor for the blend function

◆ _texture

std::shared_ptr<Texture> cugl::scene2::TexturedNode::_texture

protected

Texture associated with this node

The documentation for this class was generated from the following file:

include/cugl/scene2/graph/CUTexturedNode.h

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ TexturedNode()

◆ ~TexturedNode()

Member Function Documentation

◆ clearRenderData()

◆ copy()

◆ CU_DISALLOW_COPY_AND_ASSIGN()

◆ dispose()

◆ draw()

◆ flipHorizontal()

◆ flipVertical()

◆ generateRenderData()

◆ getBlendEquation()

◆ getDestinationBlendFactor()

◆ getGradient()

◆ getSourceBlendFactor()

◆ getTexture() [1/2]

◆ getTexture() [2/2]

◆ init()

◆ initWithData()

◆ initWithFile()

◆ initWithTexture()

◆ isAbsolute()

◆ isFlipHorizontal()

◆ isFlipVertical()

◆ refresh()

◆ setAbsolute()

◆ setAnchor() [1/2]

◆ setAnchor() [2/2]

◆ setBlendEquation()

◆ setBlendFunc()

◆ setContentSize() [1/2]

◆ setContentSize() [2/2]

◆ setGradient()

◆ setTexture() [1/2]

◆ setTexture() [2/2]

◆ shiftTexture()

◆ toString()

◆ updateTextureCoords()

Member Data Documentation

◆ _absolute

◆ _blendEquation

◆ _dstFactor

◆ _flipHorizontal

◆ _flipVertical

◆ _gradient

◆ _mesh

◆ _offset

◆ _rendered

◆ _srcFactor

◆ _texture
