# Compiler Optimizations for Improving Data Locality

Processing speed has long surpassed that of memory in modern computation. Applications today deal with a massive amount of information that must at some point be held in memory. The overhead cost of transferring data continues to inhibit implementations if many applications. Furthermore, this task is becoming increasingly complex as computers depart from von Neumann towards heterogeneous architectures, inducing additional data transfer.

Compiler Optimizations for Improving Data Locality by Carr, McKinley, and Tseng tackles this problem by suggesting this is a task for the compiler to combat. This paper focuses on improving the order of memory access. Table 1 illustrates the differences in a computers circa this paper, and today. The problems faced in 1994 are very much present today: data transfer is the main limiting factor in computation.

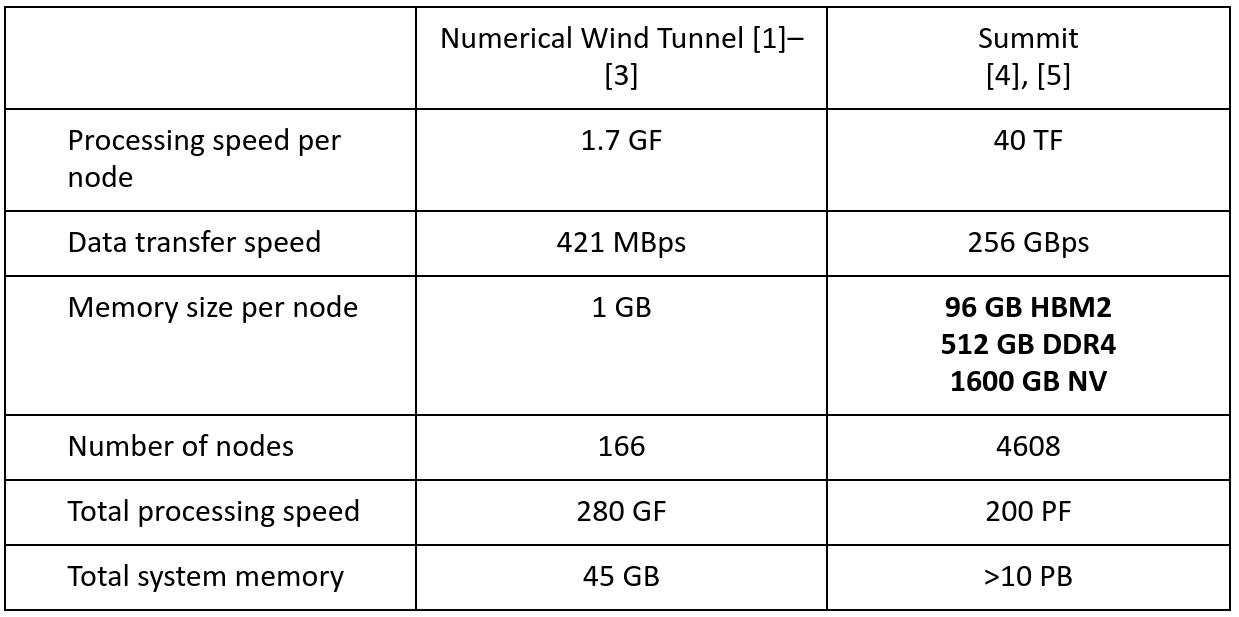

This table shows the fastest computer from when this paper was written (1994) and from today (2019).

This figure shows how CPU performance has outpaced memory performance, and how this gap shows no signs of closing. As a result of this massive difference in CPU performance and memory performance, more and more kinds and levels of caches have been introduced. This preponderance of caches has led to cache locality becoming a central factor in program performance.

# Background!

#### Memory Hierarchy

Data locality takes advantage of smaller, faster, volatile cache memories, by keeping data close at hand for computation. Reusing lines of cache—both spatially and temporally—allow for computation to proceed without waiting excessive periods of time for the data to arrive. Large and increasingly complex memory hierarchies are implemented for a variety of reasons. Sadly, not everything is fast cache 💸.

As opposed to a single central memory, a variety of technologies are used to store information and prepare it for computation by CPUs, GPUs, or TPUs. Each processing unit has registers at the cliff of computations. They are typically the fastest, largely due to their close proximity to the logic unit that performs computation. After registers, comes caches. These are also very fast, yet limited in size—largely to take advantage of locality.

Beyond the physical memory storage are the interconnects between all components. Slowest transfer speeds are found in the cheaper and more robust main memory, solid state drives, hard disks, and long term tape system storage. The further the data gets from the processing units, the less we want to access it. It’s too far for the data to walk.

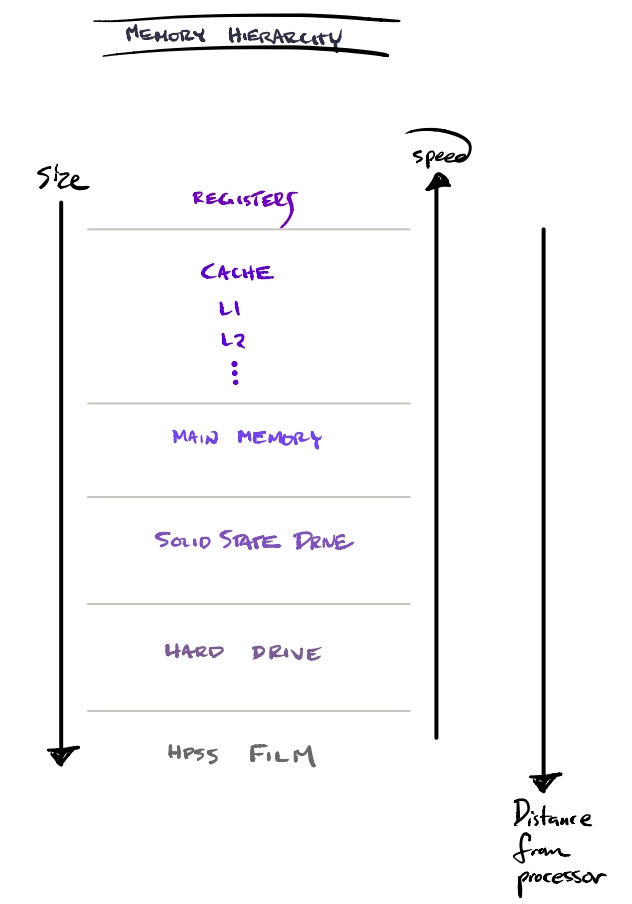

This figure shows a typical memory hierarchy. In considering memory speeds, we must take into account the time it takes to get between storage, caches, registers, processors—in addition to how much data can sit at each point on the way.

#### Data Dependence

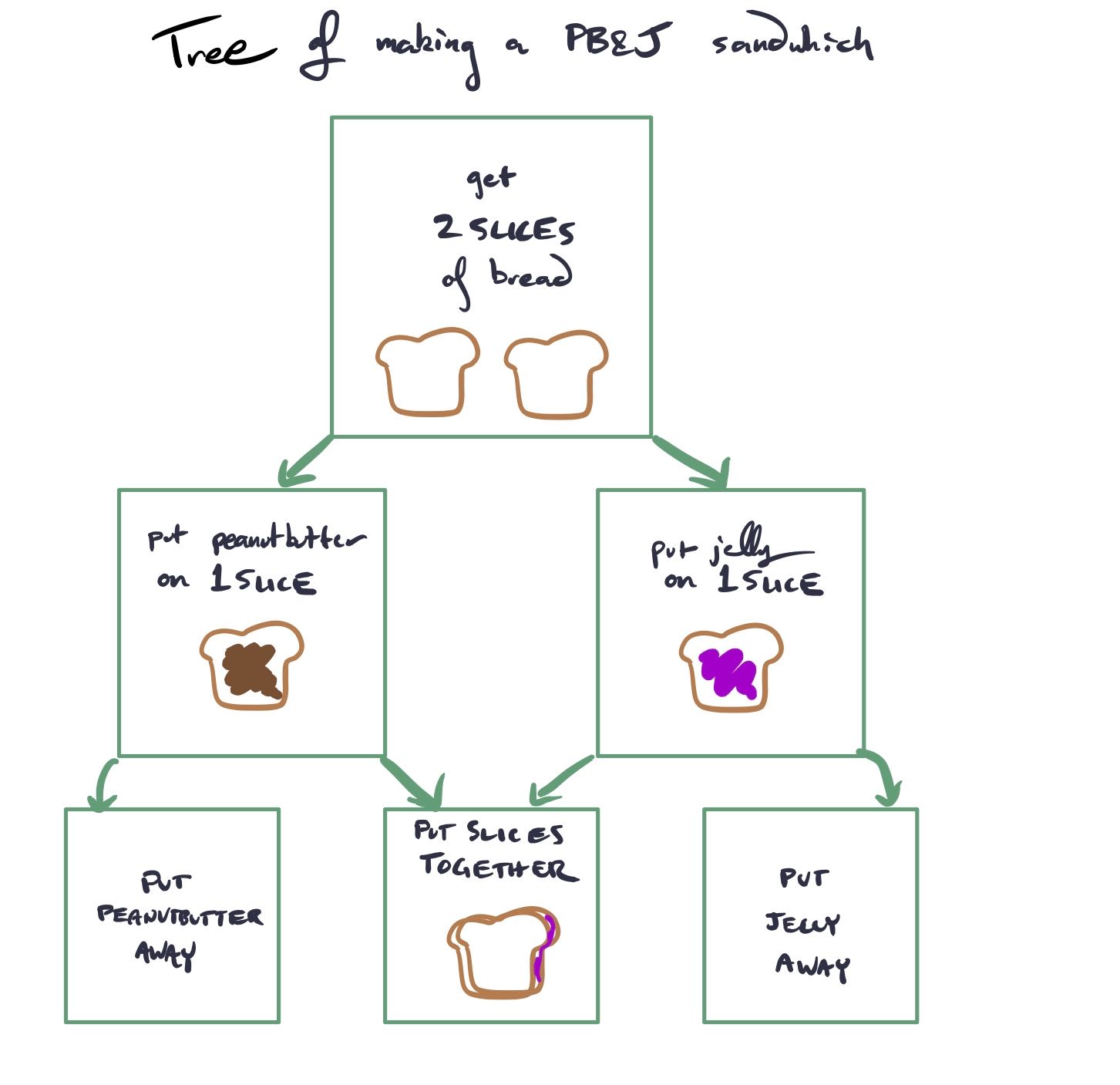

There exists data dependence between two statements A and B if there is a path between the two, and both access the same memory location. Here we have a tree of making a peanut butter and jelly sandwich. In order to spread jelly on the bread, you need the bread; the two steps are dependent on each other. This extends to operations accessing memory locations, and thus we can build a data dependence tree.

# Loop Optimizations

#### Loop Permutation

Loop Permutation is perhaps the most straightforward loop optimization. Iterating over arrays in the wrong order is one of the easiest ways to cause a huge amount of cache misses. It’s also the cause of an endless number of SO questions.

Take these two snippets of code (which can also be found online here).

A. Column-Major

int A[DIM1][DIM2];
for (int iter = 0; iter < iters; iter++)
for (int j = 0; j < DIM2; j ++)
for (int i = 0; i < DIM1; i++)
A[i][j]++;


B. Row-Major

int A[DIM1][DIM2];
for (int iter = 0; iter < iters; iter++)
for (int i = 0; i < DIM1; i++)
for (int j = 0; j < DIM2; j ++)
A[i][j]++;


Both of these loops perform DIM1 * DIM2 increments. The only difference is whether they iterate through A in row-major or column-major order. What do you think their performance difference is?

If you’re wise to the ways of cache locality, you might answer B. And for suitably large values of DIM1 and DIM2, you’d be right!

With DIM1=1024, DIM2=1024, and iters=1e3, we get an order of magnitude win for B!

• A (Column-Major): 4916ms
• B (Row-Major): 485ms

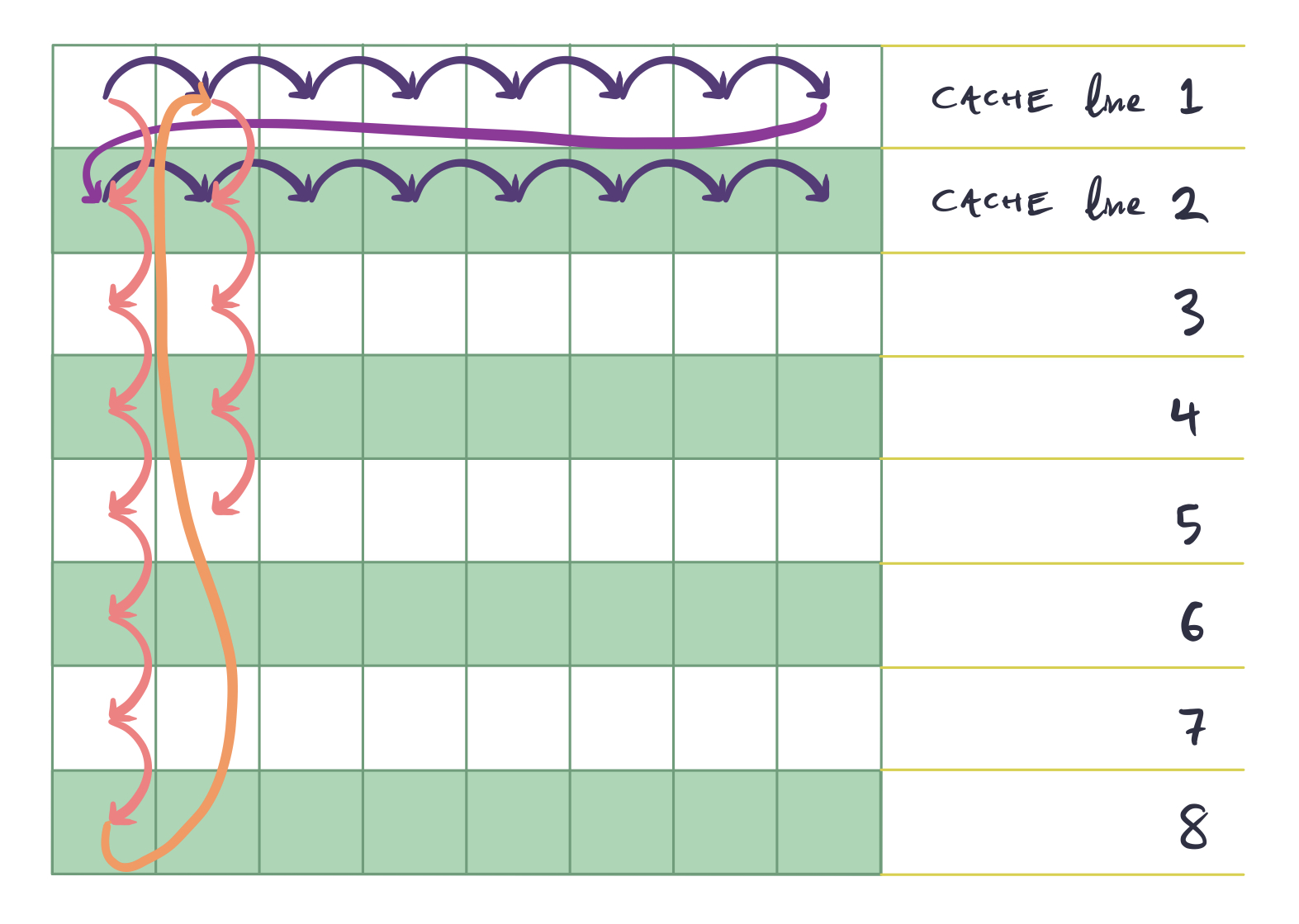

Loop permutation captures this optimization. Intuitively, you could imagine the below picture when it comes to what's happening. Imagine that the grid represents a 2-dimensional array. However, since 2-dimensional arrays are actually 1-dimensional arrays in memory, the cache lines must align along a particular axis.

Now, compare the 2 access patterns (the blue line and the red line). The blue access pattern loads a single cache line and then accesses all of its elements before moving onto the next cache line. The red access pattern, however, loads a single cache line, accesses a single element, and then moves onto the next cache line.

#### Loop Reversal

Loop Reversal simply reverses the order of a loop. This does 2 things. First, it may allow the use of more efficient jump operations (for example, JMPZ). Another thing it does is reverse data dependencies. This can serve as a kind of canonicalization, and can also allow for other loop optimizations to be applied. In their paper, loop reversal didn’t improve data locality in any of their benchmarks.

#### Loop Fusion

Loading in each cache line takes a significant amount of time. If we have multiple loops, we run into the possibility that we will load a single cache line multiple times, wasting time.

For example, take this code (an online example can be found here):

for (int i = 0; i < MAXN; i++)
A[i] += j;
for (int i = 0; i < MAXN; i++)
A[i] *= j;


It’s easy to see that this code is performing redundant cache line loads. We load the cache line that A[0] belongs to twice-once in the first loop and once in the second. We can speed up this loop by fusing the loops. This way, we load a cache line and perform both operations on it at once, before loading another cache line.

for (int i = 0; i < MAXN; i++) {
A[i] += j;
A[i] *= j;
}


Locally, this gives me 660ms for the unfused one and 411ms for the fused one.

Loop fusion is a big deal on CPUs, but it’s an even bigger deal on GPUs (and other hardware accelerators). As opposed to say, loop permutation, which simply improves data locality, loop fusion can actually reduce the number of memory loads needed. For example, in the above, it’s a trivial optimizations to then rewrite it as

for (int i = 0; i < MAXN; i++) {
int t = A[i];
t += j;
t *= j;
A[i] = t;
}


This halving in memory loads can often translate directly to halving of runtime in more memory bound systems (like GPUs).

#### Loop Fission/Loop Distribution

This is the opposite of loop fusion. Although loop fusion is useful if you can reduce memory loads, it can be counter-productive to have unrelated operations jammed together into a single loop nest. Not only does it introduce more memory pressure, it also doesn’t allow optimizations like loop permutation to be applied to a single operation at a time.

For example, take a loop like this

int A[MAXN][MAXN], B[MAXN][MAXN];
for (int i = 0; i < MAXN; i++) {
for (int j=0; j<MAXN; j+=2) {
A[i][j] ++;
B[j][i] ++;
}
}


As seen in the loop permutation section, we’d like to iterate along both A and B in row-major order. However, the fact that the operations in A and B are in one loop nest doesn’t make it possible to do this for both arrays. However, if we split this loop, then we can write it like

int A[MAXN][MAXN], B[MAXN][MAXN];

for (int i = 0; i < MAXN; i++)
for (int j=0; j<MAXN; j+=2)
A[i][j]++;

for (int j=0; j<MAXN; j+=2)
for (int i = 0; i < MAXN; i++)t
B[j][i]++;


Thus iterating in the optimal order for both arrays.

## Cost Model

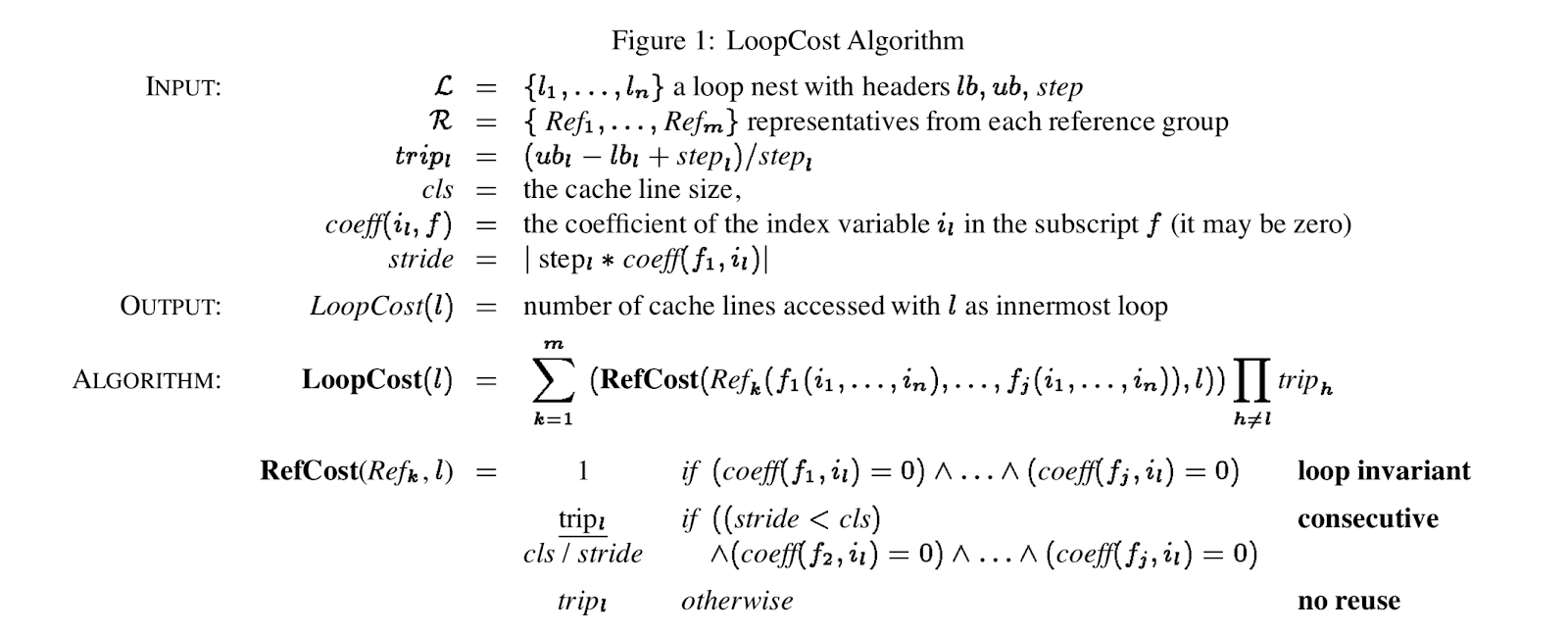

For class discussion, think about the following algorithm:

They use this cost model for determining the optimal sequence of loop fusion/fission/permutation to apply.

# Future Work

The loop optimizations presented here are still used everywhere. However, these are perhaps the more straightforward optimizations to make. In particular, they don't deal with any optimizations (besides loop reversal) that change the structure of a loop. Writing optimized loop nests is far more complicated than that. For a phenomenal introduction to the types of optimizations that need to be done for modern loop nests, check out this talk from one of Halide's creators. The first 15 minutes aren't related to Halide at all, and serve as a fantastic introduction. I'll provide some notes about important topics here.

### Parallelism

Parallelism across CPU cores is crucial for performance. Depending on how you compute your values, you may introduce serial dependencies that make it more difficult to parallelize your code.

### Vectorization

Vectorization refers to taking advantage of SIMD instructions in your hardware. These instructions can do things like "sum up the 4 values at x[i] through x[i+4]" significantly faster than doing them one element at a time.

Taking advantage of this requires some care. For example, if your inner loop is too small, then you often won't be able to take full advantage of SIMD instructions, which operate on 8 or 16 numbers at a time.

The fact that they operate on 8 or 16 numbers at a time also means that utilizing them requires some special case handling - for example, what if you have 18 elements?

### Tiling

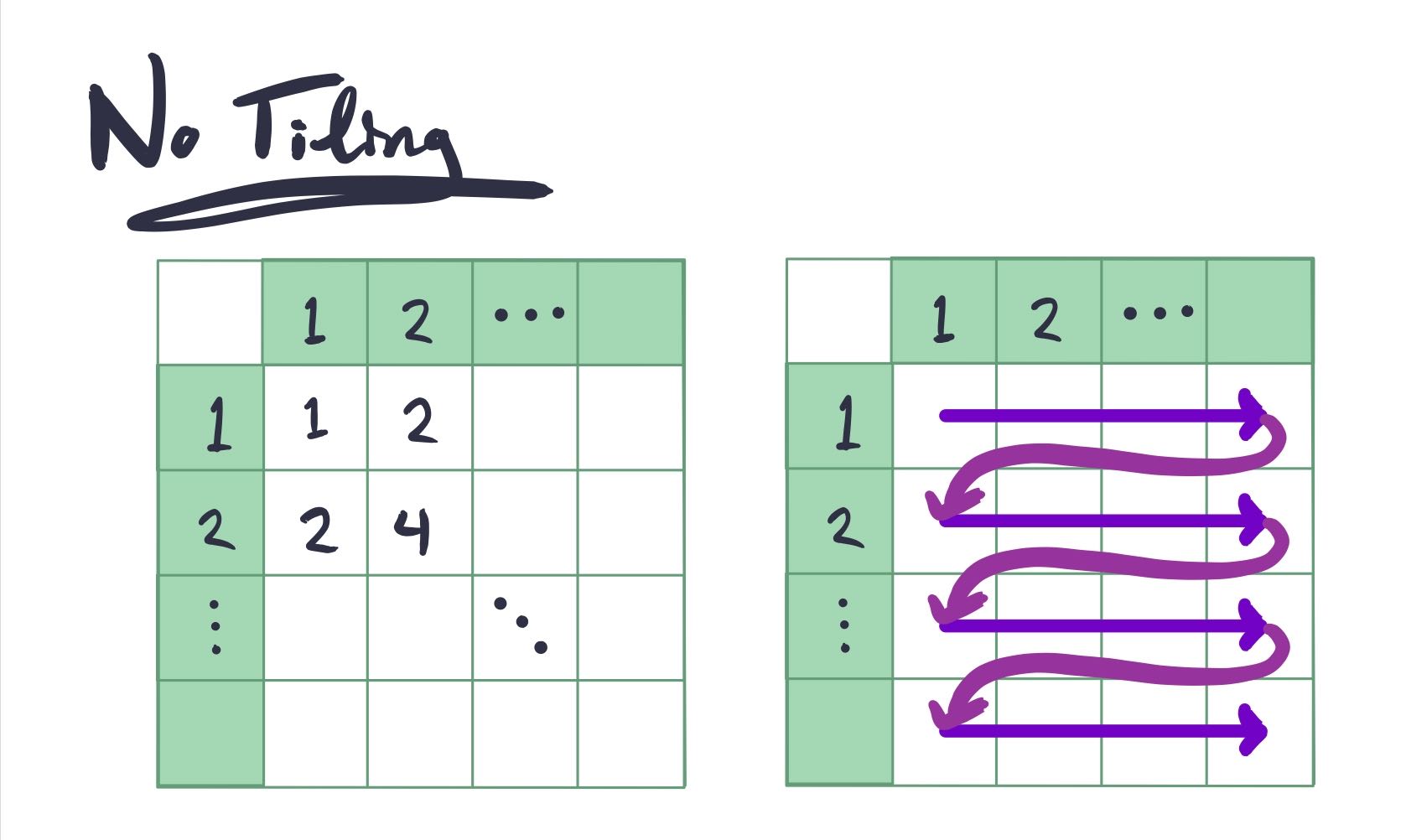

Imagine that we wished to compute a multiplication table of sorts. The code for that would look something like (an online example can be found here. Note that moreso than the other optimizations, tiling often depends on the particular hardware used):

for (int x = 0; x<MAXN; x++)
for (int y =0; y <MAXN; y++)
A[x][y] = rows[x] * columns[y];


Note that in this implementation, although each element in rows will be loaded only once and reused until it's no longer needed, each element in columns will be loaded once for every single row.

A rough estimate gives us 20 "bad" reads - each read from columns won't be in the cache, and the first read of rows[x] won't be in the cache either.

If we simply permuted the loops we could solve this issue for columns... but then we'd have this issue for rows. Note that if we had significantly more rows or columns, this could be the optimal answer.

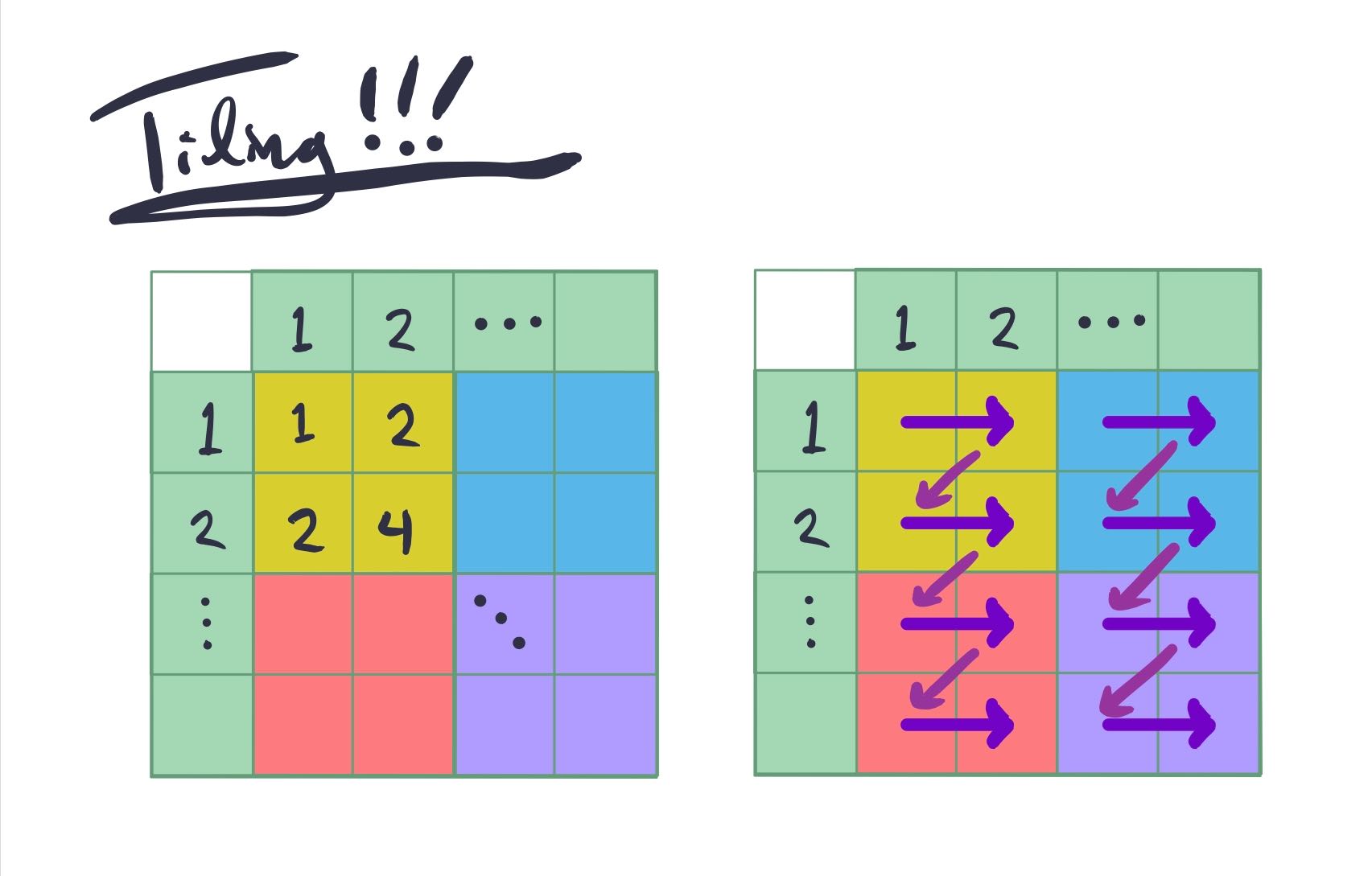

However, there is a better option. We can select a compromise - we select some number of row elements and some number of column elements, and compute the outputs that depend on those elements.

Naively, this now only requires 12 "bad" reads. To compute the first 2 columns, we only need to read 6 elements, and same for the second 2 columns.

In code, that would translate to:

int B = 8;
for (int t = 0; t < NUMITERS; t++)
for (int i = 0; i < n; i += B)
for (int j = 0; j < n; j += B)
for (int x = i; x < i + B; x++)
for (int y = j; y < j + B; y++)
a[x][y] = rows[x] * cols[y];


### Defining the space of loop optimizations

Looking at all of these loop optimizations and the difficult ways in which they interact is a fairly daunting task. One avenue of active research is defining the space of loop optimizations. There are 2 primary efforts I'm aware of: the polyhedral model and Halide. Both of these models define a space of loop optimizations.

### Cost Models

Although the previous models mentioned allow you to express the space of legal loop transformations, they don't tell you what loop transformations you should be performing. Some recent work has focused on learning a cost model for Halide schedules, and using that to guide an autoscheduler for Halide programs.
