Features

We will approximately measure features on a point system, with the number of points needed for full completion depending on the number of members in your group. Our expectation is that larger groups should do more, but integrating a larger number of features can also be more work. To this end, the number of features you will need to absolutely guarantee full credit roughly scales with the number of members in a group, but larger groups may receive credit for integrating more features if this is done well. We are also reasonably open minded here---implementing one very complex feature super well could be enough for a team of 4 if it is done well (e.g., if you implemented a really impressive fluit simulation or something). In that case, you should still make sure you have a strategy for dividing the work among members, though. We will ask you to report who did what, and in extreme cases we may assign different grades to different group members.

Note that especially good player and camera movement can be worth a point or more if done well. This generally means providing intuitive controls and smooth filtered camera motion.

This example I showed in class would probably get a point for camera and motion controls in addition to the other features:

Some Ideas

Procedural Terrain

You can implement deformable procedural terrain.

• Characters and other elements should be able to move and interact with the terrain
• You should be able to modify the terrain and render these modification efficiently

The starter code already sets up a displacement shader for the terrain and initializes a data texture that gets fed to the displacement shader. This means a lot of the tricky setup is done for you. Mostly, you just need to work out all the proper transformations to make sure that the rendered terrain matches any application logic that deals with interacting with said terrain. You will also need to use some of what you learned from the imaging part of the course to sample, interpolate, and modify terrain height values. Without interpolation, your characters will bounce around in a stair-steppy pattern.

You can see a smoothed version in the demo video above.

There are few different pieces to making this work. One part is getting the transforms between height map, terrain, and player location correct. Another part is properly sampling the height map (e.g., with bilinear interpolation) to ensure that your player moves smoothly.

Shaders

You can write custom shaders to create new material effects. E.g.:

• Modify diffuse and specular shading to do toon shading / cell shading
• Implement normal mapping on a non-flat surface
• Implement procedural normal or texture mapping
• Other cool material effects, e.g., chrome reflections and mirrors.

Toon Shading

Toon shading can be done by quantizing the brightnesses and colors of fragments for the diffuse and specular components and adding an inking pass by rendering the back faces of the mesh as black and translated along their normal vectors. I'll talk a bit about this in lecture.

Multi-pass shaders

Check out the

Example2and Example3 example scenes for starter code on multipass rendering techniques.

Example2

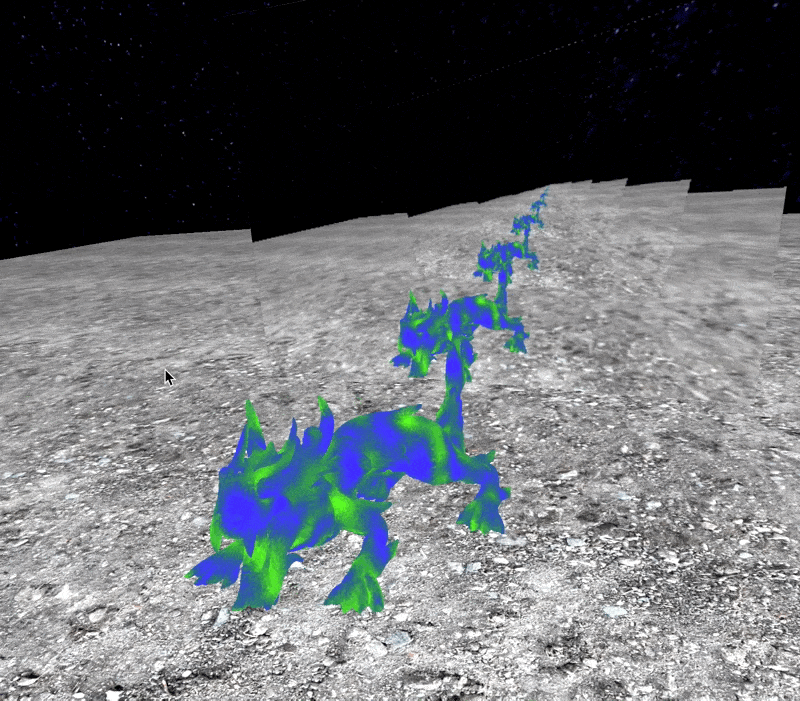

Example 2 shows how to render to texture, then render a second time with the texture mapped to some surface. You can use this to render things like reflections:

If you use this technique in a cool way that will count as a feature. This means something like a ripply reflection off of a water surface, or a hall of mirrors or something.

Example3

Example 3 shows how to render to a texture then render the texture to the screen with a custom shader. The example simply applies a gamma curve to the texture, but you can explore much cooler effects, like motion blur:

Particle Systems

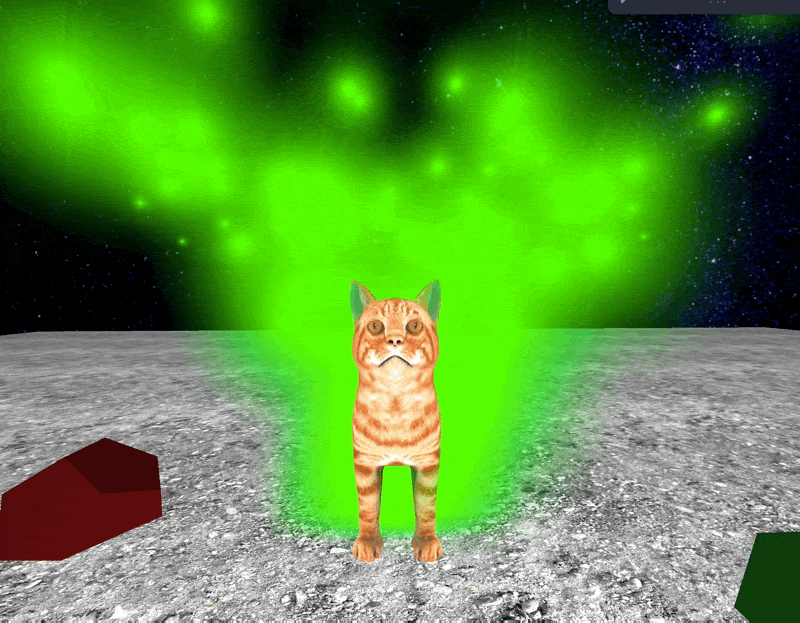

Cool particle system effects (e.g., a 3D flame!). The cooler, the more points it is worth. There is an extremely simple example particle system in the provided code to get you started. The following particle system would probably be worth a little less than a full person's contribution as the behavior is quite simplistic, but it shows what properly working billboard particles look like:
