AniGraph

AniGraph is a framework I created to support the more open-ended projects in this course. You used a modified 2D version of it already for assignments 0-2. For the final project we'll be taking advantage of a lot more of its functionality.

Anigraph is built on top of ThreeJS and WebGL, which you can use to build extensions as well.

At a high level, AniGraph's main functionality is making it easy to define a mapping from some user-defined graph of data models to a threejs scene graph. It also offers easier to use math libraries, toold for defining interactions, and a bunch of other conveniences.

Adding a 3rd Dimension​

In previous AniGraph assignments, transformations were represented with 3x3 matrices. In 3D, that's not gonna cut it...

For the full 3D version of AniGraph, we have two ways to represent transformations. The first is using a general 4x4 matrix, represented with the class Mat4. The second option is to use a NodeTransform3D instance, which has:

  • transform.position:Vec3 | Represents the point that the transform maps the origin to.
  • transform.rotation:Quaternion | Represents a 3D rotation
  • transform.scale:Vec3 | Represents the scale factor of the matrix in x, y, and z

The corresponding matrix for a node transform is given by M, defined as:

let P = Mat4.Translation3D(transform.position);
let R = transform.rotation.Mat4();
let S = Mat4.Scale3D(transform.scale);
M = P.times(R).times(S);
caution

There is additionally a transform.anchor:Vec3 property that can be used to shift the origin of the input coordinate system to the transform. However, I would caution about modifying the anchor value in transformations unless you feel very confident in what you are doing, as it can complicate other common operations. The anchor property modifies M by right-multiplying it with a translation such that:

let A = Mat4.Translation3D(transform.anchor.times(-1))
M = M.times(A);

You can convert between matrices and node transforms with:

let m:Mat4;
let nt:NodeTransform3D;
let nodeTransformFromMatrix = NodeTransform3D.FromMatrix(m);
let matFromNodeTransform = nt.getMat4();
info

Both Mat4 and NodeTransform3D implement the TransformationInterface interface, which can be useful if you want to type a function so that it accepts either. Just keep in mind that the mapping from 4x4 matrices to NodeTransform3D objects is not one-to-one (e.g., you can't represent projection matrices with NodeTransforms).

Application Structure​

The main top-level entry points for writing an AniGraph app will be the scene model (subclass of ASceneModel) and scene controller (subclass of ASceneController). To facilitate this customization we've provided some base example subclasses for you to start with:

  • ExampleSceneModel: This is where you will add new nodes to your scene model and update application logic involving multiple nodes.
  • ExampleSceneController: The scene controller mainly handles two tasks. The dirst is to create new views when nodes are added to the model hierarchy. The second is to manage any interactions or communication between the scene model and the rest of your device (e.g., managing interaction modes and render targets).

The scene model is the root of our scene graph. The models and views that correspond to an individual node of our scene graph make up a "scene node". Most of the work in writing an AniGraph involves:

  • Writing custom nodes by writing custom descendant classes of ANodeModel and ANodeView classes.
  • Writing logic in the scene model class that defines behavior involving multiple nodes (e.g., one node kicks another node in the face)
  • Writing custom interaction modes, which specify how users interact with the application

MainSceneModel​

MainSceneModel

For the most part, any logic that is not specific to a particular node class will go in the MainSceneModel class. In particular, initScene() and timeUpdate(t?:number, ...args:any[]). In the starter code you will find:

  • async PreloadAssets(): You can optionally specify assets like shaders or textures to preload.
  • initCamera(): Set up the camera projection and initial pose
  • initViewLight: Places a point light. In the example code this point light is added as a child of the camera, which means there will be a light source located at the camera that moves with the camera. Warning: you can turn the intensity of this light to 0 if you don't want it to light your scene, but you may not want to remove it completely, as this could complicate the binding of some shaders.
  • initScene(): this function will set up a new scene. It is a required function. Check out the related helper functions in ExampleSceneModel.ts, which are used in the starter scenes:
    • initTerrain(): initializes the terrain model
    • initCharacters(): initializes the player and bot models
  • getCoordinatesForCursorEvent(event: AInteractionEvent): optionally define a mapping from event coordinates based on the scene model. You may not need this, but it is offered in case anyone needs to re-map user input from different devices or has issues on different machines that we couldn't anticipate.
  • timeUpdate(t?: number, ...args:any[]): this will be your main entry point for the logic that runs each time a frame is rendered. t can be provided by the controller, or you can use the model's clock sceneModel.clock.time. Sometimes you want separate clocks so that you can decouple the speed of your application logic from user interaction logic.

MainSceneController​

MainSceneController

  • initModelViewSpecs(): This is the function where you specify what view classes should be created for each model node class in your application.
  • initScene(): You can use this to set the background appearance of your scene. The example code uses a cube map of space.
  • initInteractions(): This is where you declare interaction modes, which you can switch between from the control panel or programatically using this.setCurrentInteractionMode(...)
  • onAnimationFrameCallback(context:AGLContext): This function updates the model and renders the view.

Setting up the MVC Spec​

This works just like it did in C1. There are two things you need to do to create a new mapping from a descendant class of ANodeModel3D to one of ANodeView. First, when you define the custom model class, make sure to decorate it with @ASerializable. Here is an example of what that looks like from the definition of APlayerModel:

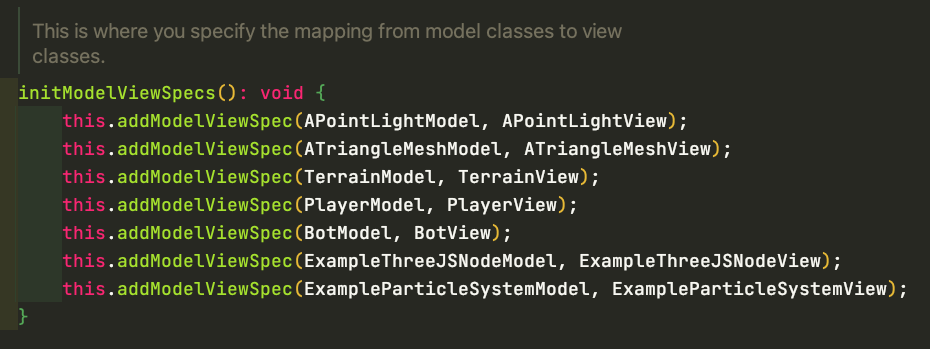

Second, you will need to add the mapping to the scene controller. This is done in the scene controller method initModelViewSpecs(), which might look like this:

From here, the associated view class should be created any time a corresponding model is added to the scene.

You can look at the example node classes (each is a pair consisting of one custom ANodeModel3D subclass and one ANodeView subclass) to see how they are created and customized.
