CS 4621: Lecture 5

Textures (Part 2)

• Textures are a way to pass image data from Javascript to WebGL.
• GLSL shaders (almost always the fragment shader) have access to this image data through samplers.
• This can return the color of a pixel, or blended colors from several pixels.

Exhibits

• #0: Using an Image Texture

Interlude: Image sampling and mipmaps

• Textures contain discrete pixels (called texels), but they are referenced using continuous uv coordinates. What if a UV-coordinate doesn't fall right on a texel?
  • Simplest solution: just return the nearest texel.
    • This is easy to implement, and works fine in some cases, but can cause aliasing problems in others.

  • Another idea: linearly interpolate between the nearest texels.
    • We need to do this for both the u and v coordinates, so take a weighted average of up to 4 pixels.
    • This is called bilinear interpolation.

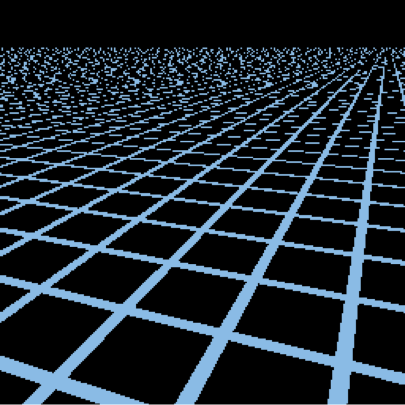

    • This looks a little better, but the aliasing problems don't go away.
• What is going on here?

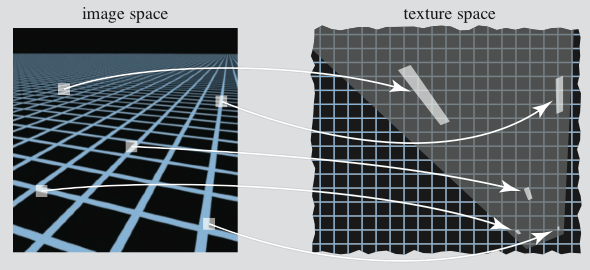

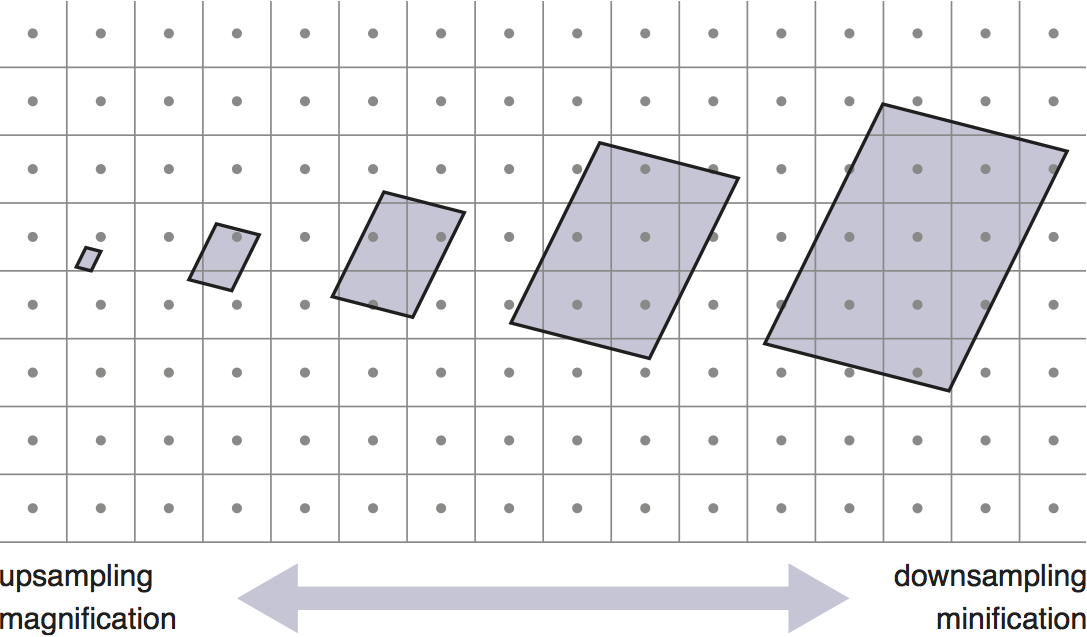

  • One pixel in the image plane may map to many texels. Each texel in the pixel's footprint should contribute to the final color.
  • Also, some pixels may map to a space smaller than a texel (this doesn't contribute to aliasing problems, though).
  • We need to account for the first case (minification) and the second case (magnification) when using textures in WebGL.


• Mipmaps are a cheap way to reduce aliasing artifacts when displaying minified textures.
  • MIP stands for "Multum in Parvo" meaning "much in little" or "many in small places."

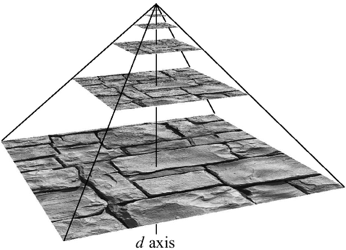

  • Basic idea: keep several copies of the image, each resampled to different sizes.

    [Akenine-Moller and Haines 2002]
  • When we need to sample a color from the texture, we can estimate the size of that pixel's footprint on the texture.
  • Then, we can use that information to decide which level of the mipmap to sample.
  • We can even linearly sample between nearby levels.
    • If used together with bilinear interpolation on adjacent layers, this is called trilinear interpolation.

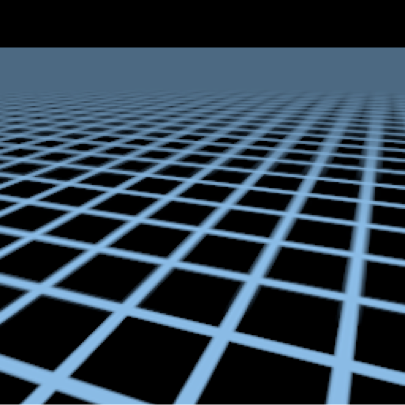

  • This method effectively blurs out the aliasing artifacts.

  • Notice that this increases the memory footprint of an image by 1/3.

    [Kavita Bala]
  • Since this is a commonly used tool, WebGL does most of this for you.

Exhibits, Continued

• #1: Texture Parameters
• #2: Minification Parameters and Textured 3D Mesh
• #3: Loading and Using Multiple Texture
• #4: Textures and Transparency
