Images

Class Image and Class ImageArray

An instance of class java.awt.Image can contain an image (such as might be read in from a .jpg, .png or other format of image file). Just how the image is stored is not our concern; the class hides such details. Abstractly, the image consists of a rectangular array of pixels (picture elements), where each pixel entry is an integer that describes the color of the pixel. We show a 3-by-4 array below, with 3 rows and 4 columns, where each Eij is a pixel.

      E00  E01  E02  E03
      E10  E11  E12  E13
      E20  E21  E22  E23

We have not talked about two-dimensional arrays in class yet, but an image with r rows and c columns could be placed in an int[][] array b[0..r-1][0..c-1]. Instead (partly because we only know one-dimensional arrays), class ImageArray maintains the pixels in a one-dimensional array rmoArr[0..r*c-1]. For the 3-by-4 image shown above, array rmoArr would contain the elements in row-major order:

      E00, E01, E02, E03, E10, E11, E12, E13, E20, E21, E22, E23

Class ImageArray provides the representation of an image in its array rmoArr, along with methods for dealing with it. You can get the value of an individual pixel with getPixel(row,col). You can change the image using its methods setPixel(row,col,v) and swapPixels(a,b,i,j). Suppose, for a variable im of class ImageArray, you wish to set a pixel to v; instead of writing im[h,k]= v, you write im.setPixel(h,k,v);. You can also reference pixels as a one-dimensional array, using methods getPixel(p) and setPixel(p,v). That is all you need to know in order to manipulate images in this assignment.

Pixels and the RGB System

As we discussed in the previous assignment, your monitor uses the RGB (Red-Green-Blue) color system for images. Each RGB component is given by a number in the range 0..255 (8 bits). Black is represented by (0, 0, 0), red by (255, 0, 0), green by (0, 255, 0), blue by (0, 0, 255), and white by (255, 255, 255). Since this system uses 8 bits for each of the three colors of a pixel, it is called "24-bit RGB color", and the number of distinct colors is 2²⁴ = 16,777,216.

A pixel is stored in a 32-bit (4 byte) word (memory location). The red, green, and blue components each take 8 bits. The remaining 8 bits are used for the "alpha channel", which is used as a mask to make certain areas of the image transparent (for those software applications that support transparency). We will not change the alpha channel of a pixel in this assignment. The elements of a pixel are stored in a 32-bit word like this:

Suppose we have the green component (in binary) g = 01101111 and blue component b = 00000111, and suppose we want to put them next to each other in a single integer, so that it looks like this in binary:

0110111100000111

This number can be computed using g*28 + b, but this calculation is inefficient. Java has an operation that shifts bits to the left, filling the vacated spots with 0's. We give three examples, using 16-bit binary numbers.

0000000001101111 << 1 is 0000000011011110
0000000001101111 << 2 is 0000000110111100
0000000001101111 << 8 is 0110111100000000

Secondly, operation | can be used to "or" individual bits together:

Therefore, we can put an alpha component alpha and red-green-blue components (r, g, b) together into a single int value (which is 32 bits) using this expression:

(alpha << 24) | (r << 16) | (g << 8) | b

To see this in action, take a look at method ImageProcessor.invert. For each pixel, the method extracts the 4 components of the pixel. It then inverts the red, green, and blue components, reconstructs the pixel using the above formula, and stores the new pixel back in the image.

Class ImagePanel

To understand this class, read this section with class ImagePanel open in DrJava. A JPanel is a component that can be placed in a JFrame. We want a JPanel that will contain one Image object. This is the motivation for a class ImagePanel that extends JPanel.

The field image of ImagePanel contains (the name of) the Image object. The constructor places a value in image and also sets the size and "preferred size" of the ImagePanel to the dimensions of the image; this preferred size is used by the system to determine the size of the JFrame when laying out the window.

Method paint is called whenever the system wants to redraw the panel (perhaps it was covered and is now no longer covered); our method paint calls g.drawImage to draw the image. Finally, method changeImageTo is called whenever our program determines that the image has been changed (e.g. after inverting the image). Take a look at the method body.

How does one learn to write all this code properly? When faced with doing something like this, most people will read the API specifications and then start with other programs that do something similar and modify them to fit their needs (as we did).

Class ImageFrame

This class is a JFrame, whichc is associated with a window on your monitor. Since we want a window (that contains two versions of an image), class ImageGUI extends JFrame. This is a somewhat involved class because it lays out all of the visual components. Take a look at the following components of class ImageGUI (there are others, which you need not look at now).

Fields

The fields originalPanel and currentPanel contain the panels for the original and manipulated images.

Constructors

There are two constructors. One is given an image. The other has no parameters; it gets the image using a dialog with the user, where the user can navigate on their hard drive and choose which image to work with. This is similar to obtaining a file to read, which you learned about in lab.

Method setUp

Both constructors call this private method. The method puts the buttons into the JFrame (using two arrays and a loop to streamline some of the repetitive stuff). We will learn about this later in class. It then adds a labeled text area, which you will use later. Next, provided that there is an image, it creates two panels with the image in them and adds them to the JFrame, using the call add(BorderLayout.EAST, imagebox);. Finally, it fixes the window location, makes the JFrame visible, and "packs" and repaints it.

Method setDefaultCloseOperation

The call of this method ear the end of setUp fixes the small buttons in the JFrame so that clicking the "close" button causes the window to disappear and the program to terminate.

Eventually, you may wish to read Chapter 17 of the text for more information on placing components in a JFrame. There is also a lot of information about GUIs in the lectures on the ProgramLive CD.

Class ImageProcessor

This class provides all the methods for manipulating the image given to it as an ImageArray in the constructor. The constructor stores the image in field originalIm and stores a copy of it in currentIm.

As the image is manipulated, object currentIm changes. It can be restored to its original state by copying field originalIm into currentIm. That is what procedure restore (near the end of the class) does.

The other methods in this class implement the various buttons in the application. When a button is clicked, the application calls the appropriate procedure. The procedures invert, hreflect, transpose, and restore are complete. Procedure invert inverts the image (makes a negative out of a positive, and vice versa). Note how it processes each pixel; it retrieves it, then computs what its new color components should be, and finally places the changed pixel back into currentIm.

Your goal in this assignment is to implement the procedures corresponding to the other buttons.

Class ImageGui

Now that you know the other classes, ImageGui actually does very little. It has a method called main. This is the method that Java calls when you use the command run ImageGui. In this method, it creates instances of the classes above and links them together (e.g. makes them fields of one another), so that they can function properly.

This class also links the buttons in ImageFrame with the procedures implementing them in ImageProcessor. It does this by providing a listener. We will talk about listeners later in class. However, you do not need to worry about them right now.

Assignment Instructions

The hardest part of this assignment is simply understanding how all of the classes fit together. However, the only class that you need to modify is ImageProcessor. For this assignment, you need to implement the methods vreflect, putInJail, monochromify, vignette, hide, and reveal. The method fuzzify is not required, though we will award extra credit (for students who earn at least a 90 on the rest of the assignment) for implementing this procedure.

You must write a complete and thorough specification of any method you introduce. It is best to write the specification before you write the method body, because it helps you as you program. This is standard practice in this course. It is a severe error not to do so, and points will be deducted for missing or inappropriate specifications.

You need not write loop invariants, and if you do, we will not grade them. But we encourage you to write them for each loop so that you get used to thinking in terms of the invariant and the four questions discussed in class.

Testing Guidlines

Before you write any code, you should be aware of our guidelines for testing. Using a JUnit testing class is difficult because you can't easily get access a picture. You do not have to use one. But this means you will need other creative ways of testing and debugging your code, such as print statements. You will find the function ImageArray.toString(pixel) to be quite helpful in getting a readable String representation of a pixel.

If you add print statements to your code, please remember to remove them before submitting. We will deduct points if you do not remove them.

For a method that consists of several steps, do not write the whole method and then compile and test. Generally you will have many syntax errors and you will waste time. Instead, compile after every line of code you write, and test what you have done if it is feasible to do so.

1. Method vreflect

This method should reflect the image around its vertical middle. Look at method hreflect to get an idea about how to do it. This should be relatively straight-forward.

2. Method putInJail

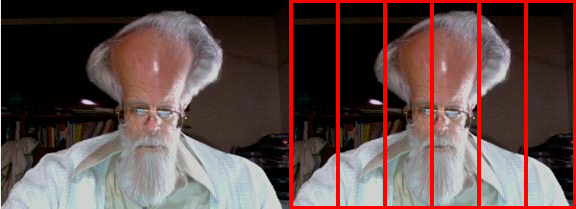

To the right you can see the effect of clicking button put in jail. This method draws a red boundary and vertical bars. This will happen when you implement method putInJail according to its specifications.

We have given you helper procedure drawHBar; use it. In the same way, implement a private procedure to draw a vertical bar. Do not forget its specification.

When finished, open a picture, click buttons put in jail, transpose, and then put in jail again for a nice effect.

3. Method monochromify

In this method, you will change the image from color to either grayscale or sepia. The exact one to chooise depends on the vlaue of parameter c, which is either 0 or 1. However, do not NOT use integer constants 0 and 1; instead use the static final fields GRAY and SEPIA (The names of variables holding constants are chosen to be all-capitals by convention). This illustrates the values of constants (e.g. final fields). Using these mnemonic names rather than the actual numbers makes the program more readable.

Which ever change you are to make, you should first convert the image to grayscale. You do this by calculating the overall brightness of each pixel using a combination of the original red, green, and blue values, defined by:

brightness = 0.3 * red + 0.6 * green + 0.1 * blue

To simulate a sepia toned photograph (a process used to increase the longevity of photographic prints), further darken the green and blue channels, setting green to 0.6 * brightness and blue to 0.4 * brightness, producing a reddish-brown tone. As a handy quick test, white pixels stay white for grayscale, and black pixels stay black for both grayscale and sepia tone.

This manipulation requires that you extract the alpha, red, green, and blue components from each pixel, construct the new pixel value, and store it. Look at procedure invert as well as the discussion on RGB to see how this is done.

4. Method vignette

Camera lenses &mdash particularly ones from the early days of photography &mdash block some of the light that should be focused at the edges of a photograph, producing a darkening toward the corners of the image known as "vignetting". This is a distinctive feature of old photographs. In this method, you simulate this effect using a simple formula. Pixel values (in red, green, and blue separately) are multiplied by the following value:

1 - (distance to center)² / (half of image diagonal)²

Like the monochromification, this requires unpacking and repacking the color components of each pixel. However, for this operation you will also need to know the row and column of the pixel you are processing, so that you can compute its distance from the center of the image.

5. Steganography

The last official part of the assignment is the most involved. Steganography, according to Wikipedia, "is the art and science of writing hidden messages in such a way that no one apart from the intended recipient even realizes there is a hidden message." This is different from cryptography, where the existence of the message is not disguised but the content is obscured. Quite often, steganography deals with messages hidden in pictures.

To hide a message, each character of the message is hidden in one or two pixels of an image by modifying the red, green, and blue values of the pixel(s) so slightly that the change is not noticeable to the eye.

Each character is represented using the American Standard Code for Information Interchange (ASCII) as a three-digit integer. We allow only ASCII characters; all the obvious characters you can type on your keyboard are ASCII characters, but it does not support certain foreign characters or Kanji. For the normal letters, digits, and other keyboard characters like $ and @, you can get its ASCII representation by casting the char to int. For example, (int)'B' evaluates to 66, and (int)'k' evaluates to 107.

We can hide character 'k' in a pixel whose RGB values are 199, 222, and 142 by changing each color component so that its least significant digit contains a digit of the integer representation 107 of 'k':

This change in each pixel is so slight that it will not -cannot- be noticed just by looking at the image.

Decoding the message, the reverse process, requires extracting the last digit of each color value of a pixel and forming the ASCII value of a character from the three extracted values. In the above diagram to the right, extract 1, 0, and 7 to form 107, and cast this integer to char. Extracting the message does not change the image. The message stays in the image forever.

Three Problems for You to Solve

You will write code to hide characters of a message m in the pixels of an image in row-major order, starting with pixel 0, 1, 2, ... Think about the following issues and solve them.

First, you need some way to recognize that the image actually contains a message. Thus, you need to hide characters in pixels 0, 1, 2, ... that have little chance of appearing in a real image. You cannot be sure that an image without a message does not start with the pixels resulting from hiding the characters, but the chances should be extremely small. You should have a beginning marker of at least two pixels that indicates that this file contains a message.

Next, you have to know where the message ends. You can do this in several ways. You can hide the length of the message in the first pixels in some way (how many pixels can that take?). You can hide some unused character at the end of the message. Or you can use some other scheme. You may assume that the message has fewer than one million characters.

Finally, the largest value of a color component (e.g. blue) is 255. Suppose the blue component is 252 and you try to hide 107 in this pixel; the blue component should be changed to 257, but this impossible because a color components are < 255. Think about this problem, and come up with at least two ways to solve the problem; implement one of them.

As you can see, this part of the assignment is less defined than the previous ones. You get to solve some little problems yourself. Part of this assignment will be to document and discuss your solutions.

Extra Credit: fuzzify

You do not have to implement fuzzify. However, we will award extra credit if you do. Extra credit is meant to challenge students that have mastered the rest of the assignment. Therefore, we will only award extra credit if you make at least 90 on the rest of the assignment.

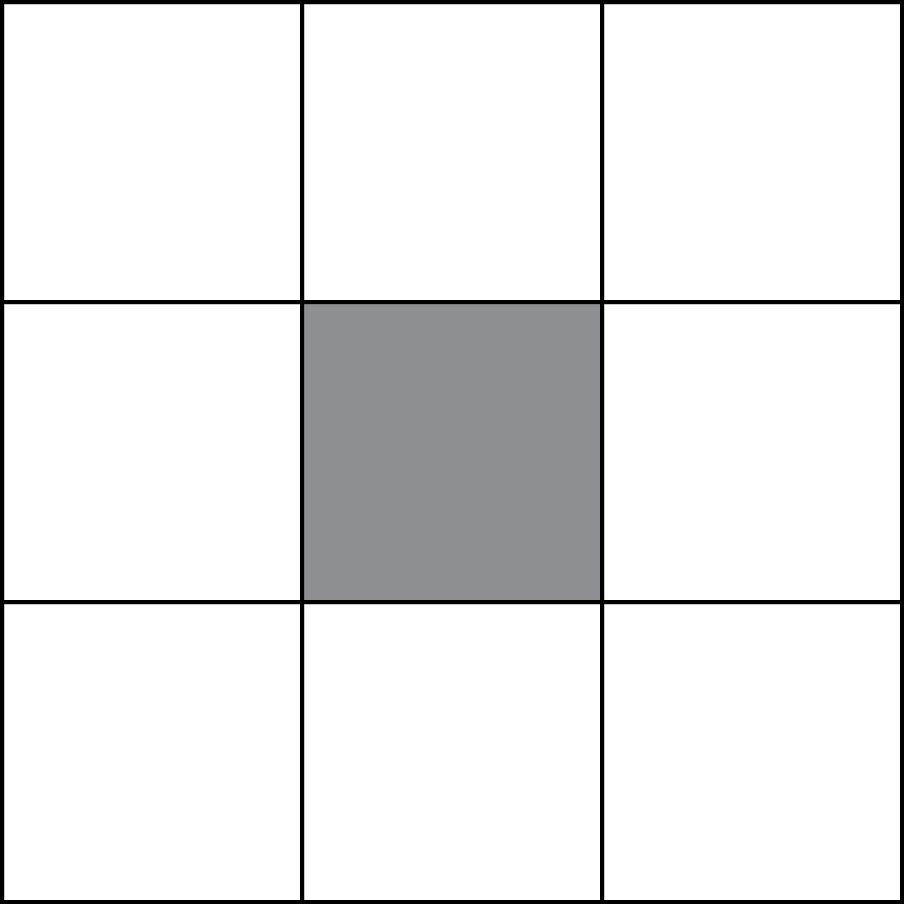

This method works like the blur tool in Photoshop (for those of you familiar with that program). This method replaces each pixel of the current image (except those on the edge) by the average of itself and its 8 neighbors. For example, it replaces the red component by the average of the 9 red components, and similarly for the blue and green components. Do not average the alpha component or otherwise change it. Follow the directions given in the java file. Again, look at method invert to see how to pick out the color components from a pixel and to build a new pixel.

As in transpose, the method will have two nested loops, and each iteration of the inner loop will process one pixel. Do not write all the code to process a pixel in the inner loop; instead, write another, private, procedure that processes the pixel and, in the body of the inner loop, call the new procedure. This is done to keep each method simple and short. Also, you can initially stub in the private method (e.g. have it set the pixel to carnelian, RGB (179, 27, 27) ) to facilitate constructing and testing one part of your code at a time, in a top-down, stepwise-refined fashion.

Finishing the Assignment

The only file that you should modify is ImageProcessor.java. At the very top of this file, you should use non-JavaDoc coments (/* */, not /** */) to provide the following information:

• Your name(s) and netid(s);
• The time you spent on this assignment.
• Your essay on your Steganography solution

In addition, you should make sure that class A5 is indented properly. Do this by hitting tab on every line in DrJava, so that it will auto-indent for you.

Turning it In

Upload the file ImageProcessor.java onto CMS by the due date: Thursday, April 17th at 11:59PM You do not need to submit any of the other source code files. Do not submit any files with the extension/suffix .java~ (with the tilde) or .class. It will help to set the preferences in your operating system so that extensions always appear.
