meridian Octant
A Comprehensive Framework for Geolocalization on the Internet

Overview


Octant provides a framework for aggressively extracting geographical constraints from various sources of information, for efficiently representing and operating on these constraints as a set of Bezier curves, and for providing an error resilient way to combine constraints with questionable verity.

Latency measurements from known landmarks

Octant uses latency measurements from landmarks with known geographic coordinates to the target as its primary source of geographical constraints. The latency to distance mapping from a landmark to a target is calibrated by the inter-landmark latency measurements. The goal of the calibration is to compute two bounds from a given RTT to the target; the outer bound that determines the maximum distance the target may be from the landmark (positive information), and the inner bound that determines the minimum distance the target may be from the landmark (negative information).

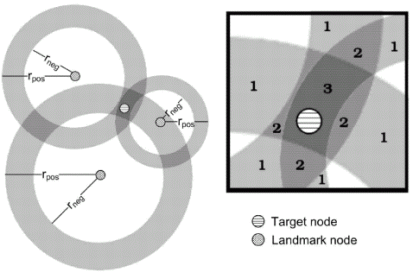

Octant extracts positive and negative constraints from
latency information

Intermediate routers as additional landmarks

Intermediate routers between the landmarks and the target are also used as additional landmarks. Octant uses the undns database to determine the rough geographic location of many of the intermediate routers. For routers that are not found in the database, Octant can still use their estimated location as inexact landmarks that may not have a large effect on the precision of the result, but is effective at providing additional redundancy for handling measurement uncertainties. Intermediate routers between the landmarks and the target
can be used as additional landmarks

Using geographic and demographic information

Geographic and demographic constraints are also used in Octant to further reduce the region size where the target may be located. For example, only landmasses and areas with non-zero population are considered as possible target locations.

Handling uncertainty

The above constraints, defined as regions bounded by a set of Bezier curves, are each given weights based on Octant's estimate of their accuracies. When two constraint regions overlap, the weights are added together. Weights enable Octant to integrate constraints of questionable verity into the system. Conflicting information can be introduced into the system at little risk of overconstraining the final system and reducing its effectiveness.

Queuing delays

To handle the effects of queuing delays on the accuracy of the latency to distance mappings, a height metric is computed for each node which represents its relative queuing delays and can be used to adjust the size and value of the constraint regions that it contributes. A node that consistently has a round-trip time (RTT) to other nodes that is significantly higher than the minimum RTT will be assigned a higher height than a node that has RTT values closer to the minimum. The minimum RTT between two nodes is defined as the time light takes to travel twice the great circle distance of the two nodes.

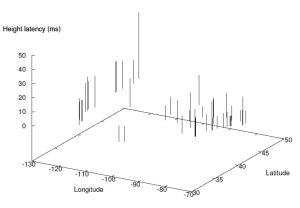

The height values of different landmarks. Vertical bars represent landmarks, their position corresponds to their physical location, while the length of the bars corresponds to their assigned heights.

Point selection

The final estimated region for a target is the union of the constraints with the highest weights. Some applications can use such area estimates directly. Yet many legacy applications are designed to accept target locations as single points. In order to support legacy applications, Octant uses a Monte-Carlo algorithm to pick a single point that represents the best estimate of the target's location. The system initially selects thousands of random points that lie within the estimated region. Each point is assigned a weight based on the sum of its distances to the other selected points. After some number of trials, the point with the least weight is chosen as the best estimate of the target's location. Note that this point is guaranteed to be within the estimated location area by definition, even if the area consists of disjoint regions.
