Today’s Topics - Kerberos

· Threats

· Requirements

· Protocol

· Practical Concerns

Threats

Kerberos was designed to provide authentication, despite passive wiretapping and replay attacks.

Requirements

Kerberos needs to be:

· Reliable

· Transparent

· Scalable – both in terms of the number of supported hosts and in the system’s ability to interact with outside hosts.

In practice, Kerberos's scalability is limited to university-sized communities.

Protocol

Basic Setup:
·           Kerberos is a key distribution center (KDC); it generates and distributes keys as needed for authentication.
·           Kerberos shares a secret key, called a master key, with each host in the network.
·           Kerberos maintains a database of these master keys. The database is encrypted using KDC's private key, K _KDC.

The 3 main phases of the protocol are given below:

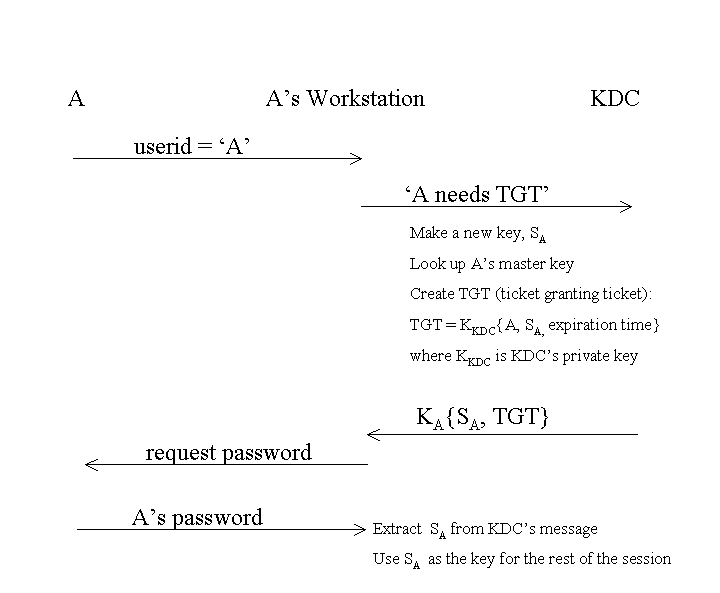

Phase 1: User A gets the credentials that are needed to request access to a service.

By only using the master key to get a session key, the amount of time that the master key needs to be kept in the workstation's memory is reduced. This reduces the master key's vulnerability. By using the TGT, the KDC does not have to keep track of the relevant state. This improves scalability.

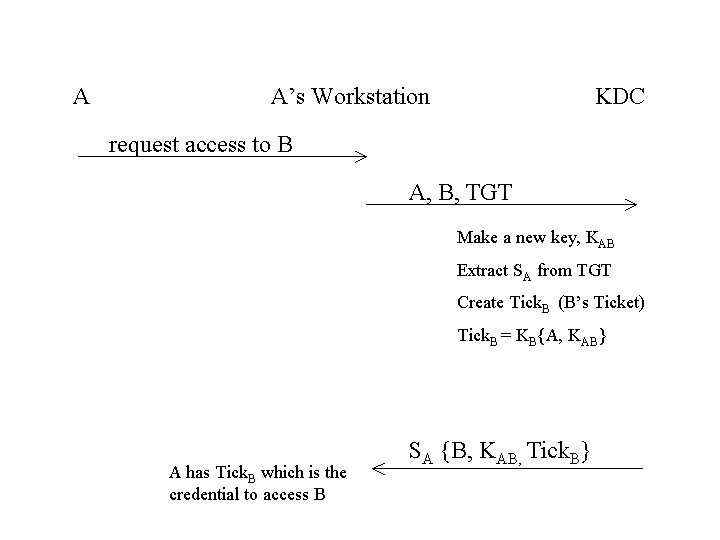

Phase 2: User A gets credentials for access to a specific service B.

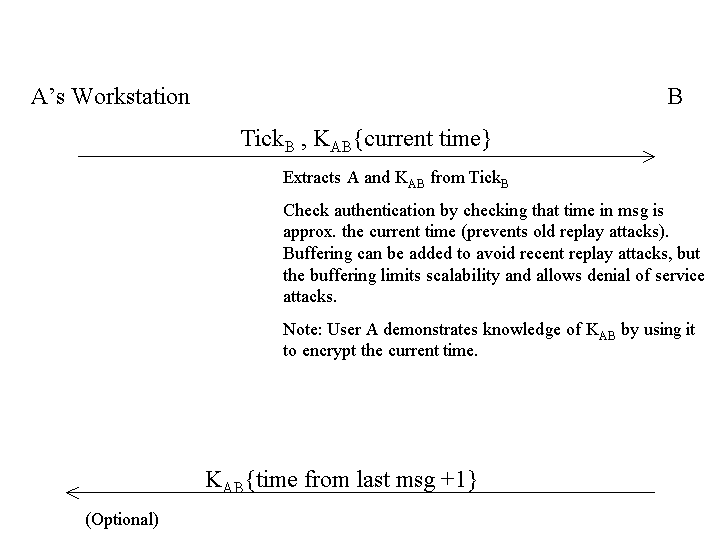

Phase 3: A presents credentials to B

Practical Concerns

· All hosts have to trust KDC

· KDC is a centralized point

o bad for reliability

o bad for performance

Replication can improve reliability and performance. Specifically, we can have a master KDC with a read/write copy of the key database and n replicas that have read-only copies of the database. The databases could have encrypted timestamps to avoid replay attacks and could have encrypted checksums to avoid splicing attacks (split DB and add a new record). A KDC hierarchy can be created to fit the size of the user community.
