# The Perceptron

Spring 2022

### Assumptions

1. Binary classification (i.e. $$y_i \in \{-1, +1\}$$)
2. Data is linearly separable

### Classifier

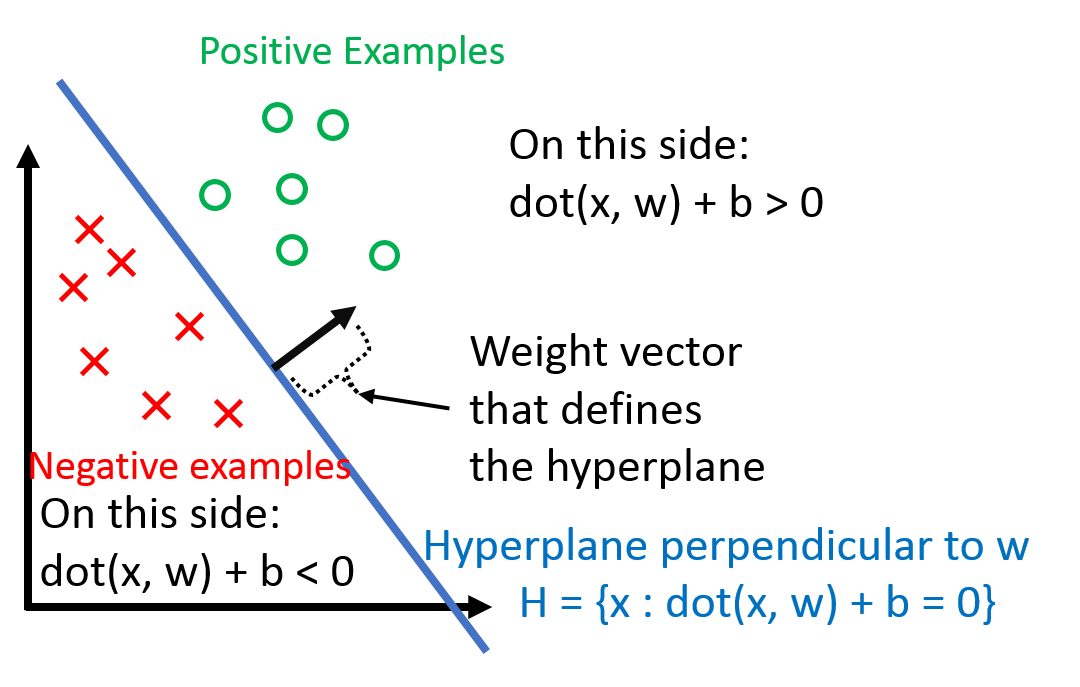

$$h(x_i) = \textrm{sign}(\mathbf{w}^\top \mathbf{x}_i + b)$$
$$b$$ is the bias term (without the bias term, the hyperplane that $$\mathbf{w}$$ defines would always have to go through the origin). Dealing with $$b$$ can be a pain, so we 'absorb' it into the feature vector $$\mathbf{w}$$ by adding one additional constant dimension. Under this convention, $$\mathbf{x}_i \hspace{0.1in} \text{becomes} \hspace{0.1in} \begin{bmatrix} \mathbf{x}_i \\ 1 \end{bmatrix} \\ \mathbf{w} \hspace{0.1in} \text{becomes} \hspace{0.1in} \begin{bmatrix} \mathbf{w} \\ b \end{bmatrix} \\$$ We can verify that $$\begin{bmatrix} \mathbf{x}_i \\ 1 \end{bmatrix}^\top \begin{bmatrix} \mathbf{w} \\ b \end{bmatrix} = \mathbf{w}^\top \mathbf{x}_i + b$$ Using this, we can simplify the above formulation of $$h(\mathbf{x}_i)$$ to $$h(\mathbf{x}_i) = \textrm{sign}(\mathbf{w}^\top \mathbf{x})$$

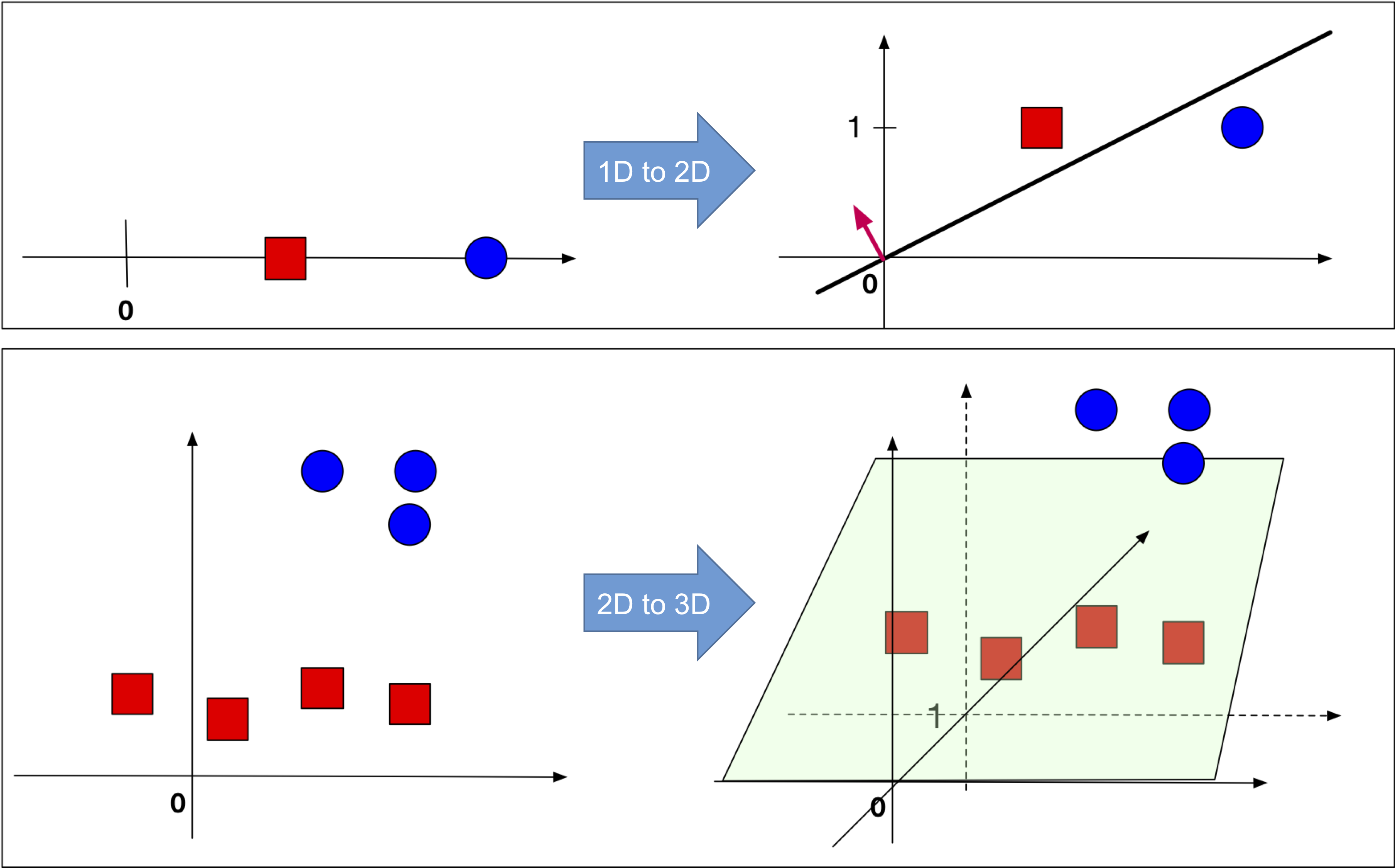

 (Left:) The original data is 1-dimensional (top row) or 2-dimensional (bottom row). There is no hyper-plane that passes through the origin and separates the red and blue points. (Right:) After a constant dimension was added to all data points such a hyperplane exists.
Observation: Note that $$y_i(\mathbf{w}^\top \mathbf{x}_i) > 0 \Longleftrightarrow \mathbf{x}_i \hspace{0.1in} \text{is classified correctly}$$ where 'classified correctly' means that $$x_i$$ is on the correct side of the hyperplane defined by $$\mathbf{w}$$. Also, note that the left side depends on $$y_i \in \{-1, +1\}$$ (it wouldn't work if, for example $$y_i \in \{0, +1\}$$).

### Perceptron Algorithm

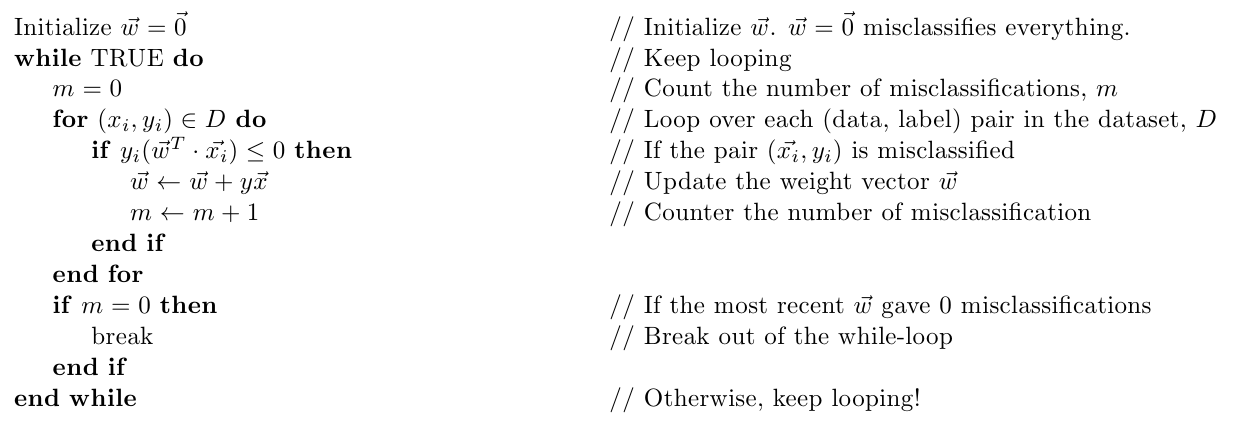

Now that we know what the $$\mathbf{w}$$ is supposed to do (defining a hyperplane the separates the data), let's look at how we can get such $$\mathbf{w}$$. Perceptron Algorithm

#### Geometric Intuition

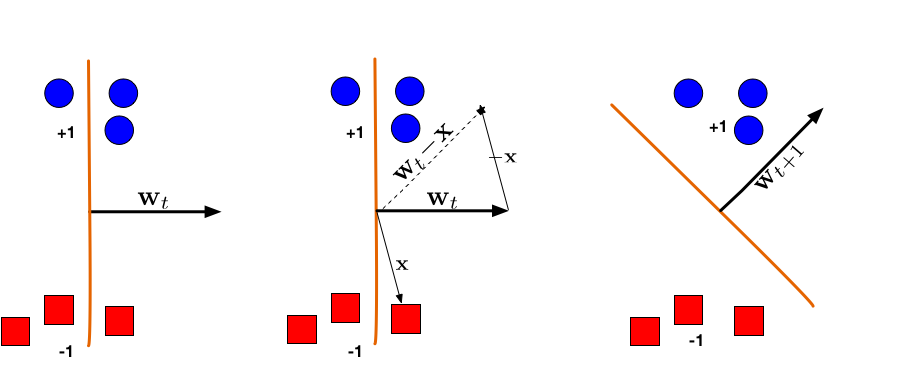

 Illustration of a Perceptron update. (Left:) The hyperplane defined by $$\mathbf{w}_t$$ misclassifies one red (-1) and one blue (+1) point. (Middle:) The red point $$\mathbf{x}$$ is chosen and used for an update. Because its label is -1 we need to subtract $$\mathbf{x}$$ from $$\mathbf{w}_t$$. (Right:) The udpated hyperplane $$\mathbf{w}_{t+1}=\mathbf{w}_t-\mathbf{x}$$ separates the two classes and the Perceptron algorithm has converged.

Quiz: Assume a data set consists only of a single data point $$\{(\mathbf{x},+1)\}$$. How often can a Perceptron misclassify this point $$\mathbf{x}$$ repeatedly? What if the initial weight vector $$\mathbf{w}$$ was initialized randomly and not as the all-zero vector?

### Perceptron Convergence

The Perceptron was arguably the first algorithm with a strong formal guarantee. If a data set is linearly separable, the Perceptron will find a separating hyperplane in a finite number of updates. (If the data is not linearly separable, it will loop forever.)

The argument goes as follows: Suppose $$\exists \mathbf{w}^*$$ such that $$y_i(\mathbf{x}^\top \mathbf{w}^* ) > 0$$ $$\forall (\mathbf{x}_i, y_i) \in D$$. Now, suppose that we rescale each data point and the $$\mathbf{w}^*$$ such that $$||\mathbf{w}^*|| = 1 \hspace{0.3in} \text{and} \hspace{0.3in} ||\mathbf{x}_i|| \le 1 \hspace{0.1in} \forall \mathbf{x}_i \in D$$ Let us define the Margin $$\gamma$$ of the hyperplane $$\mathbf{w}^*$$ as $$\gamma = \min_{(\mathbf{x}_i, y_i) \in D}|\mathbf{x}_i^\top \mathbf{w}^* |$$.

A little observation (which will come in very handy): For all $$\mathbf{x}$$ we must have $$y(\mathbf{x}^\top \mathbf{w}^*)=|\mathbf{x}^\top \mathbf{w}^*|\geq \gamma$$. Why? Because $$\mathbf{w}^*$$ is a perfect classifier, so all training data points $$(\mathbf{x},y)$$ lie on the "correct" side of the hyper-plane and therefore $$y=sign(\mathbf{x}^\top \mathbf{w}^*)$$. The second inequality follows directly from the definition of the margin $$\gamma$$.

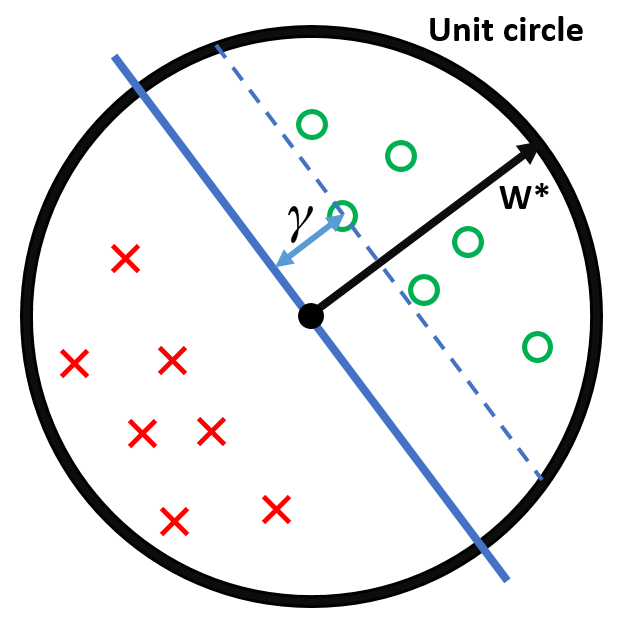

To summarize our setup:
• All inputs $$\mathbf{x}_i$$ live within the unit sphere
• There exists a separating hyperplane defined by $$\mathbf{w}^*$$, with $$\|\mathbf{w}\|^*=1$$ (i.e. $$\mathbf{w}^*$$ lies exactly on the unit sphere).
• $$\gamma$$ is the distance from this hyperplane (blue) to the closest data point.

Theorem: If all of the above holds, then the Perceptron algorithm makes at most $$1 / \gamma^2$$ mistakes. Proof:
Keeping what we defined above, consider the effect of an update ($$\mathbf{w}$$ becomes $$\mathbf{w}+y\mathbf{x}$$) on the two terms $$\mathbf{w}^\top \mathbf{w}^*$$ and $$\mathbf{w}^\top \mathbf{w}$$. We will use two facts:
• $$y( \mathbf{x}^\top \mathbf{w})\leq 0$$: This holds because $$\mathbf x$$ is misclassified by $$\mathbf{w}$$ - otherwise we wouldn't make the update.
• $$y( \mathbf{x}^\top \mathbf{w}^*)>0$$: This holds because $$\mathbf{w}^*$$ is a separating hyper-plane and classifies all points correctly.
1. Consider the effect of an update on $$\mathbf{w}^\top \mathbf{w}^*$$: $$(\mathbf{w} + y\mathbf{x})^\top \mathbf{w}^* = \mathbf{w}^\top \mathbf{w}^* + y(\mathbf{x}^\top \mathbf{w}^*) \ge \mathbf{w}^\top \mathbf{w}^* + \gamma$$ The inequality follows from the fact that, for $$\mathbf{w}^*$$, the distance from the hyperplane defined by $$\mathbf{w}^*$$ to $$\mathbf{x}$$ must be at least $$\gamma$$ (i.e. $$y (\mathbf{x}^\top \mathbf{w}^*)=|\mathbf{x}^\top \mathbf{w}^*|\geq \gamma$$). This means that for each update, $$\mathbf{w}^\top \mathbf{w}^*$$ grows by at least $$\gamma$$.
2. Consider the effect of an update on $$\mathbf{w}^\top \mathbf{w}$$: $$(\mathbf{w} + y\mathbf{x})^\top (\mathbf{w} + y\mathbf{x}) = \mathbf{w}^\top \mathbf{w} + \underbrace{2y(\mathbf{w}^\top\mathbf{x})}_{<0} + \underbrace{y^2(\mathbf{x}^\top \mathbf{x})}_{0\leq \ \ \leq 1} \le \mathbf{w}^\top \mathbf{w} + 1$$ The inequality follows from the fact that
• $$2y(\mathbf{w}^\top \mathbf{x}) < 0$$ as we had to make an update, meaning $$\mathbf{x}$$ was misclassified
• $$0\leq y^2(\mathbf{x}^\top \mathbf{x}) \le 1$$ as $$y^2 = 1$$ and all $$\mathbf{x}^\top \mathbf{x}\leq 1$$ (because $$\|\mathbf x\|\leq 1$$).
3. This means that for each update, $$\mathbf{w}^\top \mathbf{w}$$ grows by at most 1.
4. Now remember from the Perceptron algorithm that we initialize $$\mathbf{w}=\mathbf{0}$$. Hence, initially $$\mathbf{w}^\top\mathbf{w}=0$$ and $$\mathbf{w}^\top\mathbf{w}^*=0$$ and after $$M$$ updates the following two inequalities must hold:
• (1) $$\mathbf{w}^\top\mathbf{w}^*\geq M\gamma$$
• (2) $$\mathbf{w}^\top \mathbf{w}\leq M$$.
We can then complete the proof: \begin{align} M\gamma &\le \mathbf{w}^\top \mathbf{w}^* &&\text{By (1)} \\ &=\|\mathbf{w}\|\cos(\theta) && \text{by definition of inner-product; $$\theta$$ is angle between $$\mathbf{w}$$ and $$\mathbf{w}^*$$.}\\ &\leq ||\mathbf{w}|| &&\text{by definition of $$\cos$$, we must have $$\cos(\theta)\leq 1$$.} \\ &= \sqrt{\mathbf{w}^\top \mathbf{w}} && \text{by definition of $$\|\mathbf{w}\|$$} \\ &\le \sqrt{M} &&\text{By (2)} \\ & \textrm{ }\\ &\Rightarrow M\gamma \le \sqrt{M} \\ &\Rightarrow M^2\gamma^2 \le M \\ &\Rightarrow M \le \frac{1}{\gamma^2} && \text{So, the number of updates $$M$$ is bounded from above by a constant.} \end{align}

Quiz: Given the theorem above, what can you say about the margin of a classifier (what is more desirable, a large margin or a small margin?) Can you characterize data sets for which the Perceptron algorithm will converge quickly? Draw an example.

### History

• Initially, huge wave of excitement ("Digital brains") (See The New Yorker December 1958)

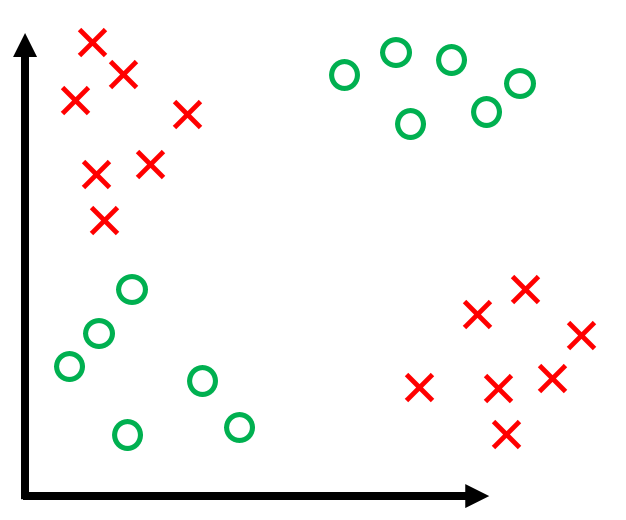

• Then, contributed to the A.I. Winter. Famous example of a simple non-linearly separable data set, the XOR problem (Minsky 1969):
