This assignment is due on September 27, 2006.

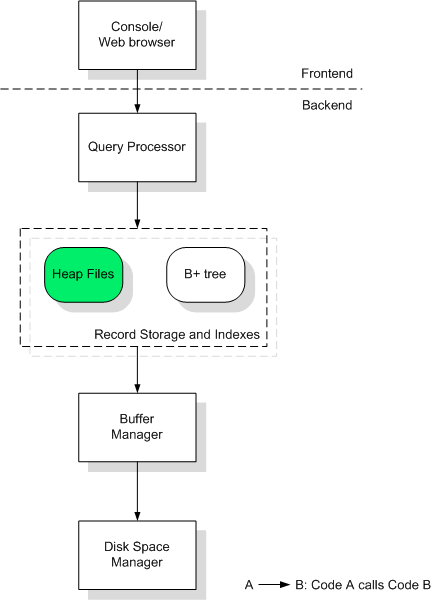

In this assignment, you will implement the page structure for the Heap File
layer for storing variable length records (the component in green in the above
figure). You will be given libraries for the lower layers (e.g. Buffer Manager and Disk
Space Manager), and some driver routines to test the code.
Begin by reading the description of Heap Files in section 7.5.1, and the description of page formats in section 7.6. A HeapFile is seen as a collection of records. Internally, records are stored on a collection of HeapPage objects.
You will be implementing just the HeapPage class, a sub-component of HeapFile, and not all of the HeapFile
component. Read the description in the text of how variable length records can be
stored on a slotted page, and follow this page organization.
Copy the zip file from CMS into your working directory, and unzip it. Open HeapPage.sln in Visual Studio.NET 2005, and click [Build]->[Build Solution] from the menu.
You will need to fill in the bodies of the HeapPage class methods. Each such method has a default (empty) implementation in file HeapPage.cpp, so the compilation will succeed. main.cpp contains tests for HeapPage. Not surprisingly, these tests will fail initially. Your task is to write additional code to pass these tests!
Have a look at the file HeapPage.h in ~HeapPage/include. It contains the interfaces for the HeapPage class. This class implements a "heap-file page" object. Note that the protected data members of the page are given to you. All you should need to do is implement the public member functions. You should put all your code into the file HeapPage.cpp. For this project, you should not modify any other file!
A note of the slot directory: In the description in the text, the slot directory is located at the end of the page, and grows toward the beginning. This has confused students in the past, since it means that negative offsets into the slot directory have to be used, so the current definition of HeapPage has the slot directory at the beginning of the page, after a few fixed member fields, and growing toward the end. This does mean, however, that you will need to write the code so the records themselves are placed beginning at the end of the page. Be very careful with your pointer arithmetic.
Also note that in order to add a record to a page, there has to be enough room for the record itself in the data area, and also room for a new slot in the data area (unless there happens to be a pre-allocated slot that's empty).
void HeapPage::Init(PageID pageNo): This member function is used to initialize a new heap file page with page number pageNo. It should set the following data members to reasonable defaults: nextPage, PrevPage, numOfSlots, pid, fillPtr, freeSpace. You will find the definitions of these data members in HeapPage.h. The nextPage and prevPage data members are used for keeping track of pages in a HeapFile. A good default unknown value for a PageID is INVALID_PAGE, as defined in page.h. Note that fillPtr is an offset into the data array, not a pointer.
PageID HeapPage::GetNextPage(): This member function should return the page id stored in the nextPage data member.
PageID HeapPage::GetPrevPage(): This member function should return the page id stored in the prevPage data member.
void HeapPage::SetNextPage(PageID pageNo): This member function sets the nextPage data member.
void HeapPage::SetPrevPage(PageID pageNo): This member function sets the prevPage data member.
Status HeapPage::InsertRecord(char* recPtr, int reclen, RecordID& RecordID): This member function should add a new record to the page. It returns OK if everything went OK, and DONE if sufficient space does not exist on the page for the new record. If it returns OK, it should set RecordID to be the RID of the new record (otherwise it can leave RecordID untouched.) Please note in the parameter list recPtr is a char pointer and RecordID& denotes passed by reference. The Status enumerated type is defined in new_error.h if you're curious about it. You may want to look that file over and handle errors in a more informative manner than suggested here. A quick summary: OK means the operation is successful. DONE is a special code for non-errors that are nonetheless not "OK": it generally means "finished" or "not found." FAIL is for errors that happen outside the bounds of a subsystem.
The RID struct is defined to be:
Struct RecordID {
PageID pageNo;
int slotNo;
int operator == (const RecordID rid) const
{ return (pageNo == rid.pageNo) && (slotNo == rid.slotNo); };
int operator != (const RecordID rid) const
{ return (pageNo != rid.pageNo) || (slotNo != rid.slotNo); };
friend ostream& operator << (ostream& out, const struct RecordID rid);
};
In C++, structs are aggregate data types built using elements of other types. The pageNo identifies a physical page number (something that the buffer manager and the DB layers understand) in the file. The slotNo specifies an entry in the slot array on the page.
Status HeapPage::DeleteRecord(const RecordID& rid): This member function deletes the record with RecordID rid from the page, compacting the hole created. Compacting the hole, in turn, requires that all the offsets (in the slot array) of all records between the hole and the free space offset (fillPtr) be adjusted by the size of the hole, because you are moving these records to "fill" the hole. You should leave a "hole" in the slot array for the slot which pointed to the deleted record, if necessary, to make sure that the rids of the remaining records do not change. The slot array can be compacted only if the record corresponding to the last slot is being deleted. It returns OK if everything goes OK, or FAIL otherwise. (what could go wrong here? e.g. Is the input rid valid? Is the corresponding slot valid?)
Status HeapPage::FirstRecord(RecordID& firstRid): This routine should set firstRid to be the RecordID of the first valid record on the page. If you find a first record, return OK, else return DONE.
Status HeapPage::NextRecord(RecordID curRid, RecordID& nextRid): Given a valid current RecordID, curRid, this member function stores the next valid RecordID on the page in the nextRid variable. If you find a next RID, return OK, else return DONE. In case of an error, return FAIL.
Status HeapPage::GetRecord(RecordID rid, char* recPtr, int& recLen): Given a RecordID, this routine copies the associated record into the memory address *recPtr. You may assume that the memory pointed by *recPtr has been allocated by the caller. RecLen is set to the number of bytes that the record occupies. If all goes well, return OK, else return FAIL.
Status HeapPage::ReturnRecord(RecordID rid, char*& recPtr, int& recLen): This routine is very similar to HeapPage::getRecord, except in this case you do not copy the record into a caller-provided pointer, but instead you set the caller's recPtr to point directly to the record on the page. Again, return either OK or FAIL.
int HeapPage::AvailableSpace(void): This routine should return the amount of space available for a new record that is left on the page. For instance, if all slots are full and there are 100 bytes of free space on the page, this method should return (100 - sizeof(Slot)) bytes. This accounts for the fact that sizeof(Slot) bytes must be reserved for a new slot and cannot be used by a new record.
bool HeapPage::IsEmpty(void): Returns true if the page has no records in it, and false otherwise.
You are required to turn in exactly the same set of files as the set of files given to you at the beginning of the project: no more files, and no fewer files. These files should be zipped up into a file named HeapPage.zip (CMS may not be able to accept files of other names.) These files should be organized in the same directory structure as well. Again, your task in this project is to only modify HeapPage.cpp.
Please remember late submissions will not be accepted. Make sure to start early! Good luck!
Q: In HeapPage.h, the slot array has a length of only 1. How to use it? Shall we allocate additional memory if we would like to access slot[1], slot[2] and so on?
A: You can assume the slot[] member field is an unbounded array. Therefore you can access slot[1], slot[2] and so on directly, without having to dynamically allocate any additional memory for slot[]. In C++ it is guaranteed that slot[2] will be located right after slot[1] in a consecutive region.
Q: To implement FirstRecord and NextRecord, how do we define the notion of "next"?
A: You get to define you own notion of "next". For instance, it can be defined by the ordering of records pointed to by the slot arrays. In that case, for example, the record pointed to by slot[2] is the "next" record of the record pointed to by slot[1], assuming both slots are valid. However, if slot[2] is not valid, the next record of the one pointed to by slot[1] will be the one pointed to by some slot[k] where k is the smallest integer greater than 1 but less than number of slots such that slot[k] is valid.
Q: There are five test cases provided for heappage/heapfile in heaptest.cpp. Does the code need to pass the test cases in any ordering?
A: No. If your code passes the test cases in the ordering of case 1, 2, 3, 4, 5, that is good enough.
