CS 3410 Components Library Guide


The "CS3410 Components" library will only appear if you are using the most recent version of Logisim, downloaded from the course website. Please ensure that you are using the correct version. If so, you should have a folder in your sidebar containing the following components:

Register File.

A 32-bit wide by 32-registers deep register file. Register $0 is hard-wired to zero at all times, and writes to $0 are ignored. You can rely on register $0 always containing 0, and do not need to test that its value does not change. Inputs rA and rB are used to select register values to output on the A and B outputs. When the clock is triggered, if WE is high, the data value at input W is stored in register rW. The register file can be configured to use rising clock edges as trigger (the default), falling edge, or to be level sensitive.

register file

MIPS Program ROM.

A 32-bit wide byte-addressed ROM, with built-in MIPS assembler. Use the attributes panel to load a MIPS assembly file into the ROM. The PC input specifies the address of the current instruction, and must be a multiple of 4. The output is the 32-bit machine code instruction at the PC address, or an error if the PC is invalid. Reading addresses outside the range of code supplied by the assembly file will cause the ROM to output zero, which happens to encode a no-op in MIPS. The assembly language is in the format described below. When we say that the instruction ROM is byte-addressed memory, we mean that the instruction ROM takes an address A as input, advances A bytes into its memory (remember, 1 byte = 8 bits), and outputs the 32-bit instruction that starts at the resulting position. 32 bits is 4 bytes, which is why the PC normally increments by 4 every cycle: it's simply going to the next instruction.

An interesting aspect of the ROM is that the offset for branch instructions must be a multiple of 4, which assembles to an output offset divided by 4. This output offset follows the MIPS specification and needs to be left shifted by 2 to be added to PC. For example, given an instruction BEQ $0, $0, 4, the outputted offset in binary is 1.

rom

MIPS ALU.

Computes a result as follows. You do not need to test the provided ALU, and can assume it will work exactly as specified.

Op name C V
000xshift left logical C = B << Sa V = 0
001xadd C = A + B V = overflow
0100shift right logical C = B >>> Sa V = 0
0101shift right arithmetic C = B >> Sa V = 0
011xsubtract C = A - B V = overflow
1000and C = A & B V = 0
1010or C = A | B V = 0
1100xor C = A ^ B V = 0
1110nor C = ~(A | B) V = 0
1011eq C = (A == B) ? 000...0001 : 000...0000 V = 0
1001ne C = (A != B) ? 000...0001 : 000...0000 V = 0
1111gt C = (A > 0) ? 000...0001 : 000...0000 V = 0
1101le C = (A ≤ 0) ? 000...0001 : 000...0000 V = 0
alu

Incrementer.

An adjustable-width incrementer. Takes its input A on the left and outputs A+1 on the right. You must use this increment for your Program Counter (PC); you cannot build your own adder to increment the PC. Also, only ONE incrementer is allowed.

incrementer

LCD Video.

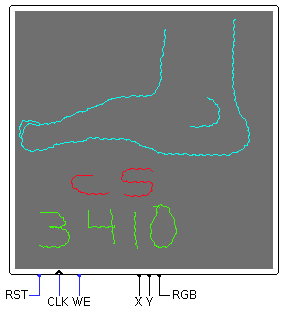

If WE is high on the rising edge of CLK, writes a pixel on the LCD screen at the location given by the 7-bit unsigned X and Y coordinates. The pixel color is specified by 16-bit RGB input (in 5-5-5 format). The RST input resets the LCD screen. With some cleverness, you can redirect memory writes to this device to let your program draw on the LCD screen. Logisim also comes with some interesting input and output devices which can be used similarly.

lcd video

RAM.

Inputs and Outputs

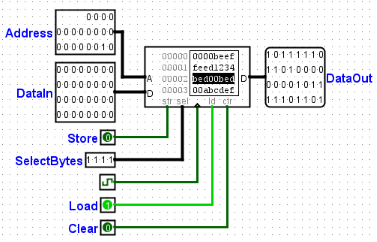

  • A is the word-address. Each line in the RAM component is a word (four bytes) in memory, and has a unique address. As in the example figure to the right, A = 0x00002 refers to slot 00002 in the RAM component, which contains a full word. However, for a given address in RAM, if you want to retrieve a specific byte or halfword in the address, you need to use the selector bits (described below). By default, the component's address width is 20 bits (which means that, by default, it can store 2^20 words = 4 * 2^20 bytes = 4MB).
  • D contains the data to be stored in RAM. Depending on how sel is set, only certain bytes within D will be written.
  • str is the store bit. You can think of it as Write Enable. When str = 1, RAM will write the value on D to address A according to the sel bits.
  • sel is for the selector bits. As mentioned above, bits 0..7 of D correspond to sel = 0001, bits 8..15 correspond to sel = 0010, bits 16..23 to 0100, and bits 24..31 to 1000. sel accepts other combinations like 1100 (to grab the upper halfword), 1111 (to grab the full word), or even something wacky like 1010.
  • ld is the load bit. Data Out D always sets floating values (X's) along the wire unless the appropriate selector bits are set and ld = 1.
  • clr clears all of RAM whenever it is 1.
ram inputs/output

Using the Byte Selector

As previously mentioned, address A gets us to the word in memory. However, we need to use sel to determine which bytes in the word we want to write to or read from. The Byte selector is 4 bits, and you can think of each bit as a read/write enable for each of the four bytes in the word.
Specifically, bit 0 of sel enables the first byte from the right in the RAM component. When writing to RAM, bits 0 to 7 of DataIn are written to this byte, and when reading from RAM, the byte's value gets read out to bits 0 to 7 of DataOut. Bit 1 of sel enables the second byte from the right, and corresponds with bits 8 to 15 of DataIn and DataOut. Bit 2 enables the third byte from the right and corresponds with bits 16 to 23, and bit 3 enables the fourth byte, and corresponds with bits 24 to 31.

Storing

Writing into the RAM component requires that the str bit is set to 1.

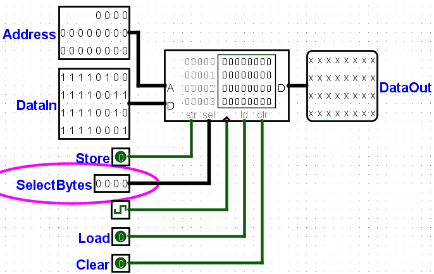

In the example to the right, DataIn is set so that a hex value 0xf1 is in the bottom line (bits 7..0), 0xf2 is in the second line (bits 15..8), 0xf3 is in the third line (bits 23..16), and 0xf4 is in the top line (bits 24..31). The gif demonstrates how to write different bytes or halfwords to the RAM.
When you want to write a byte to a location in RAM, pay attention that you place the byte-values in DataIn correctly with selector bits. In the example above, if you wanted to write 0xf1 to left-most byte, you would need to put 0xf1 in bits 24..31 in DataIn and set sel = 1000.

selector store

Loading

Reading from the RAM component requires that the ld bit is set to 1.
Loading is a bit more straightforward. Just be sure that when you are reading a byte from memory that you retrieve the byte from the right bits on DataOut. For example, if you were only selecting with sel = 0100, then you'd have to make sure that, when you're splitting DataOut, that you isolate the correct byte (bits 23..16).

selector load

A Note on Implementing Byte Addressed Memory

All the addresses that we deal with in the MIPS instruction set are expressed in terms of byte addresses. This means that address 0x0000 refers to the first byte in memory, and 0x0001 the second byte, and so on. Since every word has four bytes (in other words, since every four bytes is a new word), then 0x0000 still refers to the first word, but the second word is at address 0x0004.
It is key that you understand that the RAM is word addressed. It is an error to pass the raw byte-address into the A input.
