Note on the pace of the course: it's fast, but it won't really get any faster later in the term.

PS#1 stats, Perfect snowflake winning entries are on the web.  People did very well.

Perfect snowflake winners: Dion Harmon and Yisha Zhang.

Handout

• Order of Growth

Today

• Understanding the resource requirements of programs

Mathematical basis, experimentally justified.

We've been reasoning about programs a little before:

[Think computationally]

• CORRECTNESS

- A program that does the wrong thing is utterly useless.

- Substitution model

- mathematical induction

• EFFICIENCY

• A program that does the right thing too slowly isn't so good either.

- Analysis of Algorithms

We will apply these methods to programs throughout the semester.

OVERALL GOALS:

• Determine the space and time requirements of our algorithms.

• computational complexity (named by Hartmanis)

Complexity is measured in terms of the SIZE of the input.

• Traditionally called `n'
• For example, if input is a list of names to sort

    n = number of names in the list.

• If input is a number, size can either be the *magnitude* o
•  the number or the number of *digits* in it. IT IS IMPORTANT TO KNOW WHICH, they are very different: there are log_10(x) digits for a decimal number of magnitude x. (Try writing 10^20 in unary!)

For today we'll do the analysis in terms of the magnitude of the number itself

GOAL: To be able to compare the efficiency of algorithms/programs independent of a given machine or a given input.

QUEST:

Find some function R(n) that measures the resources needed to run it on an input of size n.

To simplify the analysis, we investigate asymptotic resource requirements.

• How they behave as n gets large

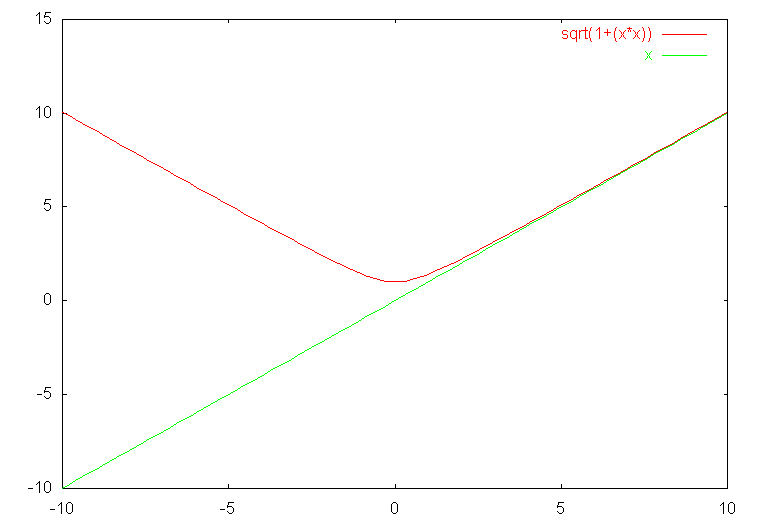

Example of an asymptote:

y = sqrt(1+x^2)

x = 0, y = 1

x = 1, y = sqrt(2) ~= 1.4

x = 10, y = 10.05

x = 100, y = 100.005

x = 1000, y = 1000.0005, you get the point

>>> x=-y.

The lines y=x and y=-x are asymptotes:

sqrt(1+x^2) ---> x as x ---> infinity.

We generalize this notion of asymptote to mean

• An approximation that gets CLOSER TO THE TRUTH in the limit

Functions generally have different asymptotic rates of growth.

x and x^2 both go to infinity as x --> infinity,

BUT

x^2 goes there a lot faster.

We can measure this by [note << is scripty-<]:

f << g iff

lim (f(n) / g(n))  = 0

(limits are to "n to infinity" unless otherwise mentioned.)

<< = "grows more slowly than"

Here are some standard functions (c is any constant):

1 << log n << n^c << c^n << n^n

REMINDER:

Think BIG. Sometimes you need to take really large n:

log n << n^0.0001

Try a = 10^100, we don't have log a < a^0.0001

log a = 100, a^0.0001 is about 1.02

But b = 10^(10^100). Then

log b = 10^100, b^0.0001 is about 10^(10^96)

[Does anyone know the name for b? Or 10^b?]

WARNING:

You cannot generally tell f<<g by picking a value for n and trying f(n) < g(n)

Only the limit thing will work..

We use order of growth notation to capture ``important differences'' in these asymptotic growth rates of functions.

ORDER OF GROWTH

O(n), O(n^2), etc. "functions of the same order, or rate of growth"

f << g is a little too strong: note that x^2 + 1 NOT << x^2 + 2

but these are asymptotically the same [what is the limit?]

We could try lim f/g -> C for some constant C; this generalizes <<, and also handles

x^2 + 1 vs x^2 + 2

What we do instead is a slightly stronger condition (how so?)

DEF:

f is O(g) -- pronounced, "f is order g" -- when there is a constant c such that

f(n) <= c g(n) for all n >= 1.

MEANS:

f is at most g. Kind of a <=.

WARNING:

Often written f = O(g)

This is an abuse of `='. This is in NO WAY an equality, and

careful people write it

f is in O(g)

EXAMPLES:

f(n) = (1/4)n^3 + 27n^2 + n + 1000

f is O(n^3)

Could determine that

1/4 n^3 < c n^3 for all n>=1 when c >= 1.

27 n^2 < c n^3 for all n>=1 when c >= 27.

etc.

THIS is too much work. We don't need to compute these constants as long as we know they exist.

Here are some rules for manipulating O()-notation:

[Proofs: see CS 280 and CS 410]

1. r n^a = O(n^b) whenever a <= b, for any r (note r, a, b independent of n)

"Multiplicative constants don’t matter"

Another consequence: n^2 = O(n^3) as well as O(n^4), in fact its any order larger than O(n^2). We want the LEAST BOUND, which O(n^2)

2. O(f) + O(g) = O(f+g)

These two rules let us simplify that polynomial example pretty easily. [Do this in section!]

3. f = O(f)

4. O(a) = O(b) if a and b are any two constants.

Just write O(1) for "essentially constant"

5. log_b(n) = O(log n) for ANY b (independent of n).

Note: CSists usually take logs to the base 2:

log 8 = 3

Mathematicians like base e

Engineers I think like base 10

But, for order of growth, it doesn't matter.

They differ by a constant factor, and O()-notation drops constant factors.

log_2(n) = log_10(n) * log_2(10) is O(log n)

This stuff is pretty old == 1800's (Euler, I believe)

With << and O(.) at our disposal, let's look at the complexity of

times-1 from a recent lecture:

(define (times-1 a b)
  (if (= b 0)
      0
      (+ a (times-1 a (- b 1)))))

>> Recall that this is a recursive process

Let's compute the order of growth as a function of the magnitude of b (not the number of digits).

The operations involved are:

• * times-1
• * built-ins, like if and = and +

Most built-in primitives are CONSTANT cost, O(1).

• To apply them once!
• This is true in 212 of arithmetic primitives and conditionals
• SOME PRIMITIVES AREN'T CONSTANT COST (none you’ve seen yet…)

[A point that some students forget on problem sets and exams.

We'll show you some a few lectures from today.]

• Note: for induction we assume them sound
• Also note that even for arithmetic operations this isn't really right (See CS410/421?) but it’s OK for CS212.

The big question is, how many times does times-1 get called?

• We could trace through the substitution model and count calls by hand.
• That's a real pain, so we just try expressing the running time as a function T(b).

(You could back this up by working with the substitution model if you like.)

T(b) = T(b-1) + c ---- if b>0

T(0) = c

c's are just O(1)'s, constants or about that.

These equations are RECURRENCE RELATIONS

• basically, define T on big numbers in terms of T on smaller ones.
• Kind of like a recursive definition.

We can sometimes solve these:

T(b) = T(b-1) + c

= T(b-2) + c + c

= ...

= T(b-b) + c + c ... + c ;; b c's

= T(0) + bc

= (b+1)c

But we usually don't care about the solutions at this level of detail, since we're just going to blur all the details with O()-notation anyways:

(b+1)c = O(b)

Why? Because we are interested in the complexity as a function of b! It's cb+c and we basically ignore constant summands and factors.

For this class, it'll help to learn some recurrence patterns

• Like the linear recurrence we just saw.
• O(n), O(log n), O(n^2), O(n log n) [do some in section]

Pattern 1

T(n)=T(n-k)+c

T(0)=c

is O(n), where k, c are constants

Here's another one:

(define fast-times
  (lambda (a b)
    (cond
     ((= b 0) 0)
     ((even? b) (fast-times (double a) (halve b)))
     (else (+ a (fast-times a (- b 1)))))))

even?, =, double, halve, +, 1 are all constant-time (why?)

T(0) = c

T(b) = T(b/2) + c if b is even > 0

T(b) = T(b-1) + c if b is odd

Consider the easy case, b is a power of 2.

b = 2 ^ (log_2 b)

T(b) = T(b/2) + c

= T(b/4) + c + c

= T(b/8) + c + c + c

..

= T(1) + (log_2 b) * c

= T(0) + (1 + log_2 b) * c

= (2+log_2 b) * c

= O(log b)

This general pattern

• Make a problem smaller by a multiplicative factor is a common pattern for algorithms.

>> DIVIDE AND CONQUER << [see CS410]

It typically has logarithmic growth, which is a very good thing:

O(log n) is much smaller than O(n)

log_10(10^100) = 100

10^100 = 10,000,000,000...

Pattern 2

T(n)=T(n/k)+c

T(0)=c

is O(log n)

We still have to finish the analysis for fast-times when n is not a power of two.

• At worst, we double the number of recursive calls, even if we take the else-branch every other time. n-1 and n-2 can't both be odd.
• So, at worst, T(b) is 2c(2+log b), which is still O(log b).

So, we're estimating all over the place.

• * Are we losing too much detail?

NO: it's a good model.

Running times for fast-times and times-1 on an antique Sparc:

Analyzing running time of our programs (asymptotic analysis, as n gets large):

• << "grows more slowly than"
• f = O(g) "f is of order g"
• Assume constant time primitives
• Recurrences for expressions
