Color model RGB In writing this assignment, we made heavy use of articles on the various color models on Wikipedia. This assignment:
(1) introduces three color models that are used in computing and graphics,
(2) gives you practice in writing functions, and
(3) introduces you to an extension of the testing and debugging methodologies you have learned about so far.
Start early on this assignment. Keep track of your
time. Just before you submit, tell us in a comment
at the top of class A4Methods how many hours you took
to complete this assignment.
We gave this assignment before. It is a good one. Do not share your code with others. Do not obtain or look at a copy of the earlier solution or a version being done by another student. Such cheating helps no one, especially you, and it makes more unnecessary work for us.
You may work with one partner. Form your group on the CMS (send invitation and accept invitation) several days before the assignment is due. Remember: it is dishonest for partners to split the work in half and work independently. Program and test and debug together, alternating driving (using the keyboard and mouse).
Color model RGB

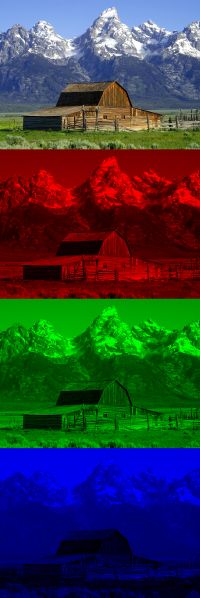

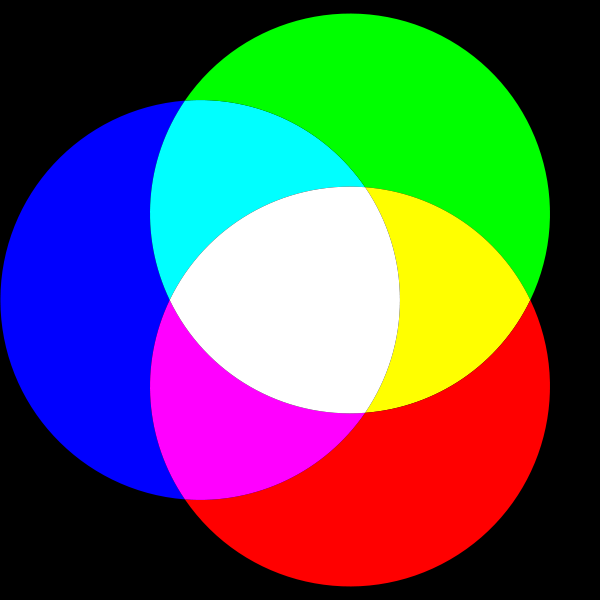

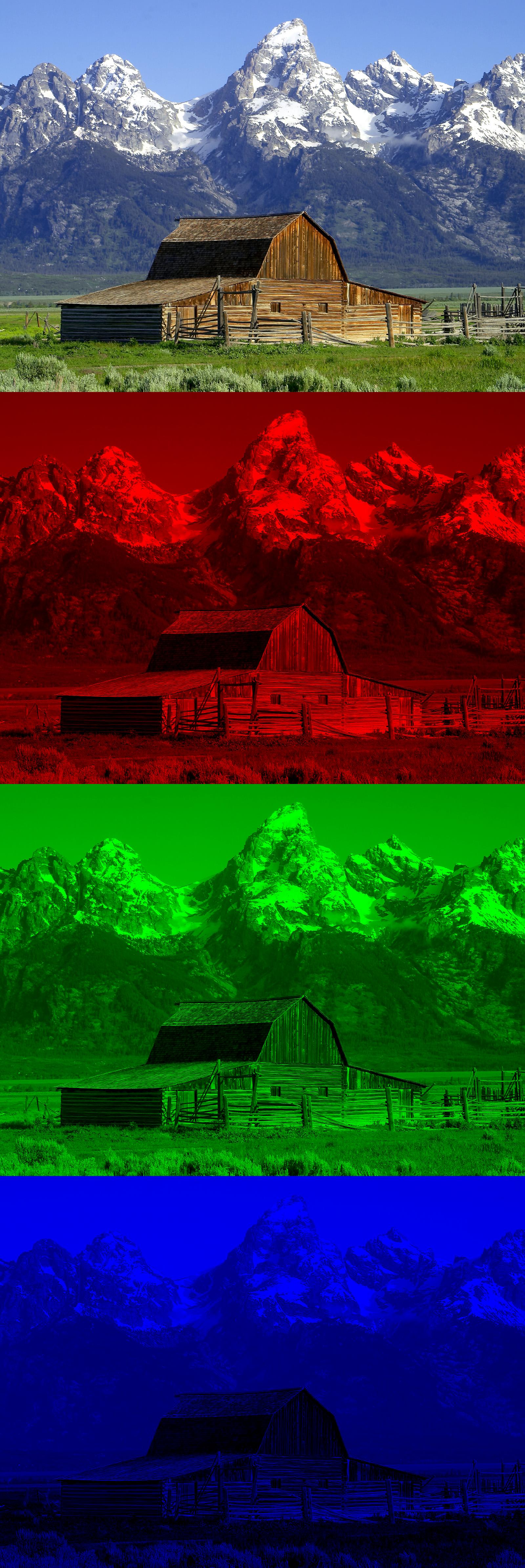

In the RGB system, after the initials of the three color names, red, green, and blue light are mixed to produce other colors, as shown in the image to the left. Black is the absence of color; white the maximum presence of all three. In the upper right is a colored image. Below it is its separation into red, green, and blue. (Here is a high resolution version.) In the three separation panels, the closer to black a point is, the less of that color it has. For example, the white snow is made up of a large amount of all three colors, whereas the brown barn is made up of red and green with very little blue. Because it works by adding colors to black, the RGB system is “additive”.
RGB is used in your TV and computer screens, and hence on web pages. Its roots are in the 1953 RCA color-TV standards. But the idea has been around longer; see this exhibit for amazing full-color images taken with an RGB camera exactly 100 years ago.
In the RGB model used in Java, the amount of each of red (R), green (G) and blue (B) is represented by a number in the range 0..255. Black, the absence of color, is [0, 0, 0]; white, the maximum presence of R, G, and B, is [255, 255, 255]. There are 16,777,216 different colors. Class java.awt.Color has some constants that you can use for some of the possible colors. For example, Color.magenta is [255, 0 , 255] and Color.orange is [255, 200, 0]. Web page http://en.wikipedia.org/wiki/List_of_colors gives (non-Java) names to many RGB colors.
In some graphics systems, RGB is used with double numbers in the range 0.0..1.0. In your program, you may have to convert each number in the integer range 0..255 to a double in 0.0..1.0, calculate, and then convert back to 0..255.
The complementary color of RGB color [r, g, b] is the color [255-r, 255-g, 255-b]. It is like a color negative.
Color model CMYK
For your ink-jet printer, you buy expensive ink cartridges in the colors cyan, magenta, yellow, and black, and the printer mixes these inks in different amounts on paper to make the full range of colors. Black is referred to using K (originally for “Key”) to avoid confusion whith Blue. The process works similarly to RGB on a monitor, but in reverse. The paper starts off white (equal parts red, green, and blue), and the colors of these inks are chosen so that cyan ink absorbs red light, removing it from the color of the paper; similarly, magenta removes green, and yellow removes blue. Black ink removes all three colors in equal amounts. For instance, paper printed with only yellow ink appears the same color as a monitor that is displaying a yellow color [255, 255, 0] because it has removed all the blue, leaving the red and green. Printing magenta and cyan removes red and yellow and results in blue [0, 0, 255]. Because it works by removing color, this kind of system is “subtractive”.
Theoretically, only C, M, and Y are needed to achieve any color, but in practice it is hard to get a good black by mixing colored inks—instead you get a soggy, expensive brown-black. By using the black ink to do the “heavy lifting” of absorbing most of the light when printing dark colors, a lot of ink can be saved.
(This is a simplified view of color printing; more complicated calculations are needed to get accurate colors with real inks.)

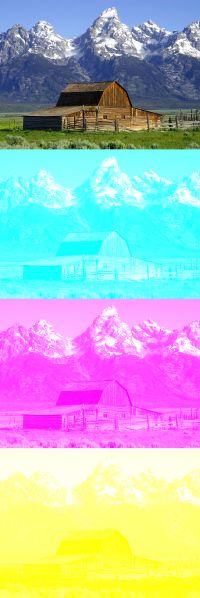

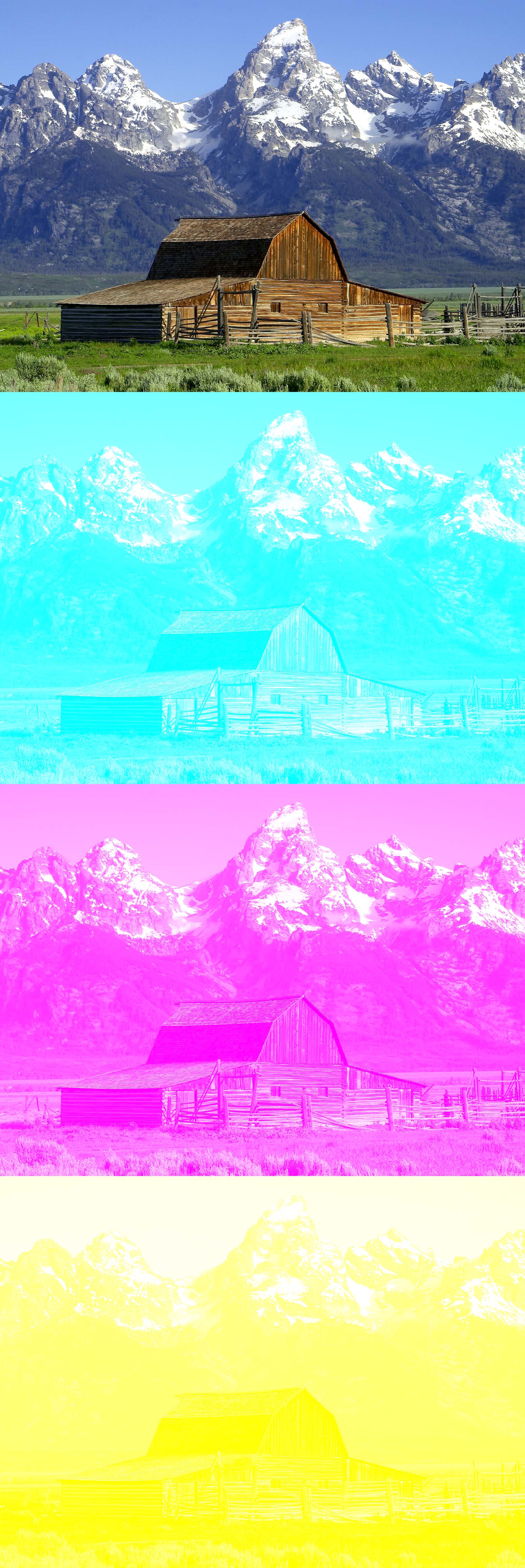

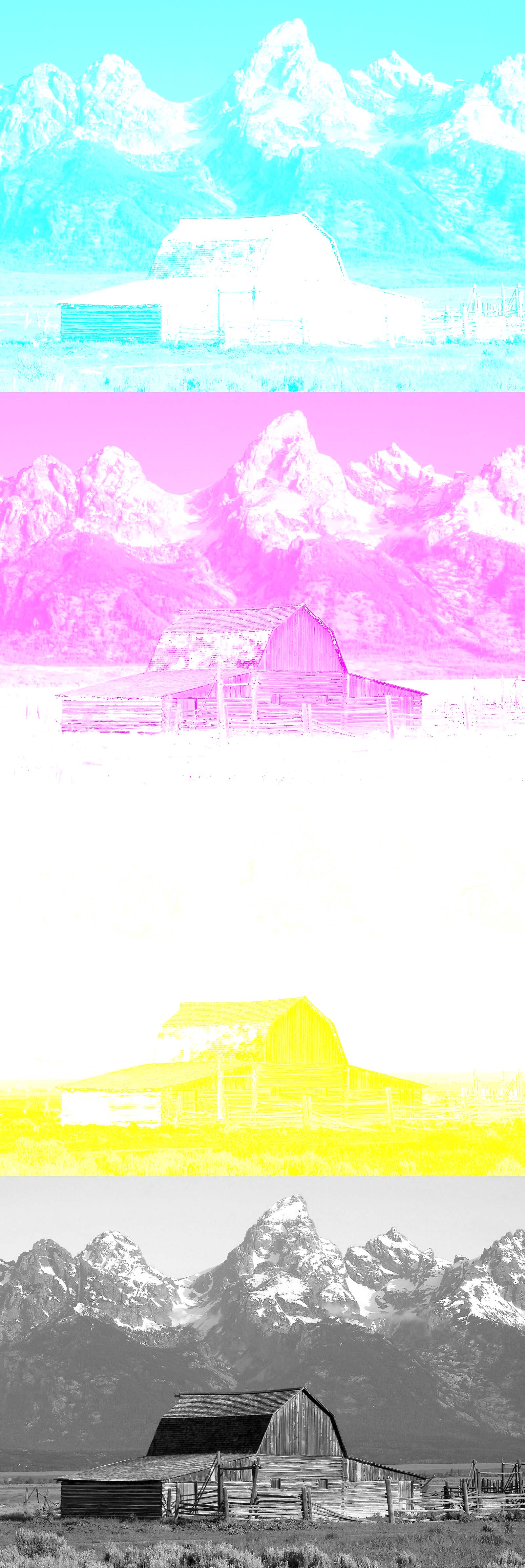

To demonstrate, in the upper right, we show you an image; below it is its separation into cyan, magenta, and yellow. To the right of that, you see the same image separated into four components; C, M, Y, K. Much less of the CMY colors is needed to make the image when black is also used. (Here is an enlarged version of the CMY image and an enlarged CMYK image.)
In the CMYK system, each of the four components is traditionally represented by a percentage, which we represent in our system as a double value in the range 0.0..100.0.
Color
Model HSV (or HSB)

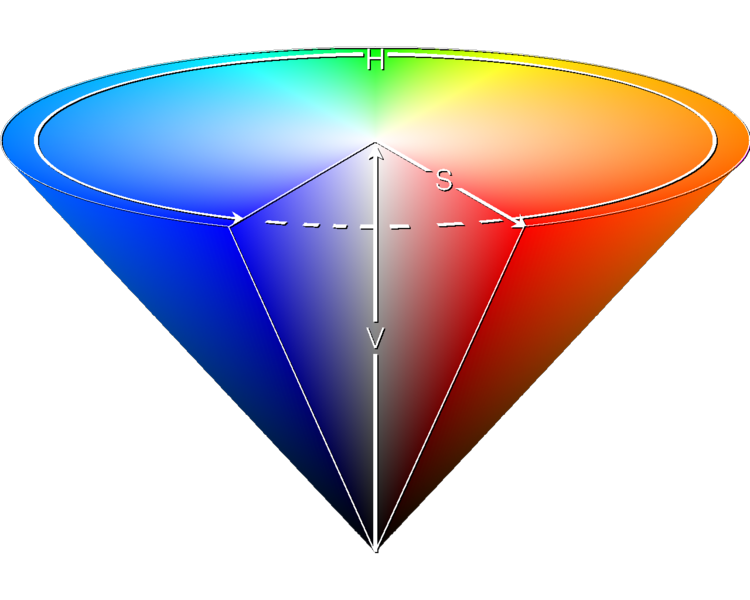

The HSV model, used heavily in graphics applications, was created in 1978 by Alvy Ray Smith. Artists prefer the HSV model over others because of its similarities to the way humans perceive color. HSV can be explained in terms of the cone that appears to the left.
H, the Hue, defines the basic color. H is an angle in the range 0 ≤ H < 360, if one views the top of the cone as a disk. Red is at angle 0. As the angle increases, the hue changes to orange, yellow, green, cyan, blue, violet, magenta, and back to red. The image in this paragraph shows the angles for some colors.
S, in the range 0 ≤ S ≤ 1, is the Saturation. It indicates the distance from the center of the disk. The lower the S value, the more faded and grayer the color. The higher the S value, the stronger and more vibrant the color.
V, the Value, also called the Brightness, is in the range 0 ≤ V ≤ 1. It indicates the distance along the line from the point of the cone to the disk at the top. If V is 0, the color is black; if 1, the color is as bright as possible.

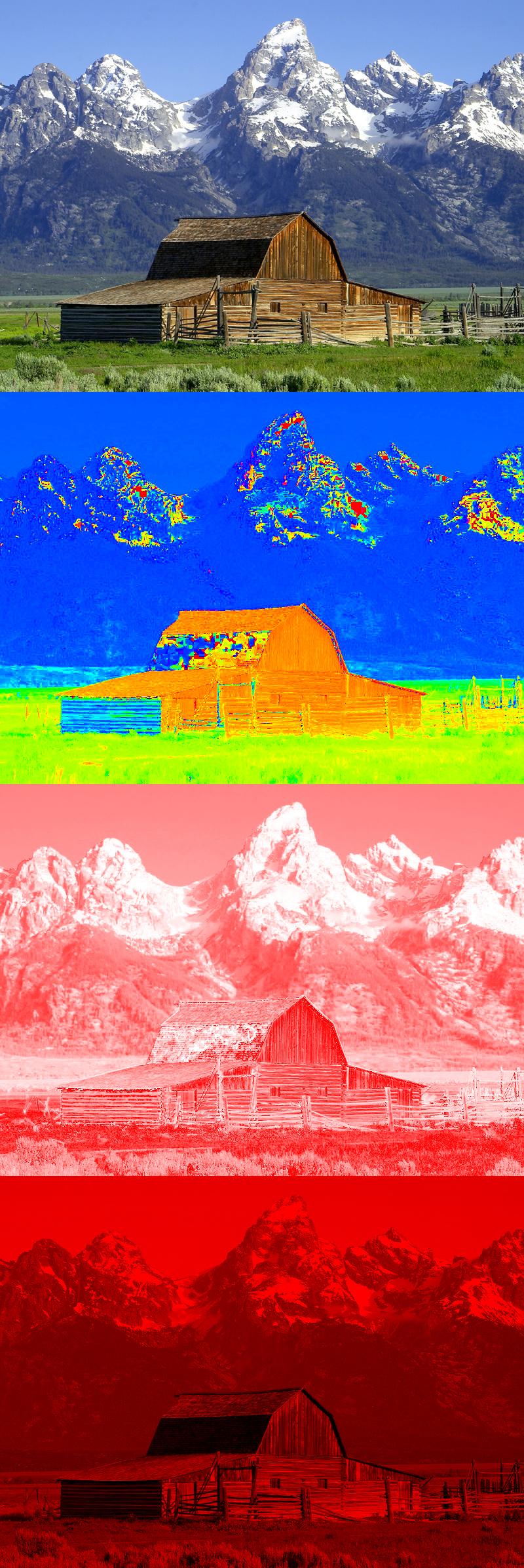

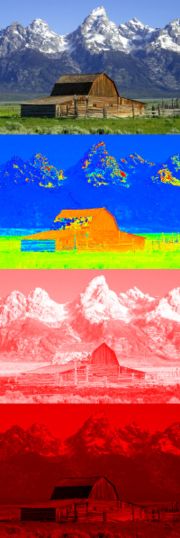

To the right at the top is a picture. Below it we see its hue, saturation (white is zero saturation, red is full saturation), and brightness components. The hue component shows color. The snow has color, but its saturation is low, making it almost grayish. Look at the various components of the image —the sky, the green grass, the snow, the dark side of the barn, etc.— to see how each component H, S, and V contributes. See more detail in this high-resolution version.
Download our solution, a4.jar or download it from the course webpage). Double-click its icon, and a GUI will appear on your monitor with two color panes and sliders for all the RGB, CMYK, and HSV components.
The initial color of the left pane is green, and the pane to its right contains the complementary color. In the title, you see the RGB values for green. In addition, the color pane and complementary-color pane contain information on the RGB, CMYK, and HSV values for the current colors in the panes.
On the bottom, you will see fields into which you can type numbers for the RGB, CMYK, and HSV components. After typing in their RGB numbers, click button RGB and the panels and sliders will change to represent that RGB value; similarly for the other color models. The numbers should be in their respective ranges: 0..255 for R, G, B; 0.0..100.0 for C, M, Y, K; 0.0..1.0 for S, V; and 0.0..359.9 for H. If a negative number is input, 0 is used instead; if too large a number is input, the maximum allowed is used instead. Use this feature when you want to develop test cases. You can type in values and see what our program does and then add test cases to make sure your program does the same.
When you move one slider, the colors change accordingly —and other sliders change too, so that all three models (RGB, CMYK, and HSV ) register the same color.
As a first move, very slowly move Hue slider H up and watch how the colors (and the other sliders) change. Then change the saturation S and value V sliders to see their effect. Play around like this, while reading about the color models, to get an understanding of how they relate to each other. It’s neat!
Here are five "skeleton" files for classes A4, HSV, CMYK,
A4Methods,
and A4Tester.
Download the .zip file, either from here or from the course webpage, store the
unzipped files in a new directory, compile them in DrJava, and execute A4.main(null);.
You will see the GUI as discussed above, but the text will not display properly and the two panels will be green.
The RGB sliders work, but the other sliders have no effect. Your job
is to write and test, one by one, the methods in class A4Methods.
As you do, more and more of the GUI will work properly.
Because we are advancing to more complex programs, you should use the following enhanced testing methodology. First, as usual, write test cases in class A4Tester using assertEquals statements before you write the method body, to check that your method has the correct final behavior. (Class A4Tester contains some test cases, but you should add more.) As usual, organize your test cases into logically coherent test procedures. But in addition, as you write each method, add test cases to ensure there is complete test coverage of the "internals" of the method: each statement or expression within the method body should be exercised by at least one test case. It is OK for one test case to exercise many statements or expressions; but it is not OK for some statement/expression (such as an "else" clause) to not be tested at all.
As done in class, use println statements
to help track down bugs. The call System.out.println(s) prints its arguments. Here is an example of its use. Suppose you are trying to find an error in method RGB2HSV (or in a method that calls RGB2HSV) and that RGB2HSV changes a variable
h at line 36. Then, you might insert at line 37 a statement like
System.out.println("RGB2HSV: h is " + h);Execution of this call prints the value of h, and if that value isn’t what you expected, you have learned something about the source of the error you’re tracking down.
About objects that contain RGB, CMYK, and HSV values.
(a) Class java.awt.Color is used to maintain RGB colors (use import java.awt.*; to access this class). Create a new RGB color object using new Color(r,
g, b),
where r, g,
and b are
in the range 0..255. Given an RGB object c, obtain its three
components using
c.getRed(), c.getGreen(), and c.getBlue().
(b) Use the given classes CMYK and HSV for objects that contain CMYK and HSV. Take a look at the classes; their use should be obvious. The toString functions call functions in A4Methods, which you will write.
Write (AND TEST) your functions, one at a time, in the following order. Read the text below, but also make sure you carefully read the specifications and comments in the provided code; in this assignment, sometimes we give hints in the specs/comments about how best to write your functions.
0. Function complementRGB(Color). We gave you some partial code that you need to fix. We provide a test case for it in class
A4Tester (should you add more?), which won’t work until you rewrite the function.
1. Function truncateTo5(double). There is a stubbed-in return statement in it so that the program compiles. Write this function, using the guidance given as comments in the body. We provided test cases for it in class A4Tester (should you add more?). This function will be needed later.
2. Function roundTo5(double). This function is most easily written by calling
truncateTo5 appropriately. There is a stubbed-in return statement in it so that the program compiles. Write this function, using the guidance given as comments in the body. We provided test cases for it in class A4Tester (should you add more?). Within this assignment, this function should be used only to get values to appear in the GUI in a consistent format —always 5 characters long.
2. Function toString(Color). Write this function. When this
is written, RGB values will appear in the title of the GUI and
in the two color panes. We provided one test case for this function in
class A4tester; that is all that is needed.
3. Function toString(CMYK). Write this function. When written,
CMYK values will appear in the two color panes. This function should call
function roundTo5 to round each CMYK value to 5 characters. We do NOT provide test cases
for this function. You write at least two of them.
4. Function toString(HSV). Write this function. When written,
HSV values will appear in the two color panes. This function should call function roundTo5 to
truncate each HSV value to 5 characters. We do NOT provide test cases
for this function. You write at least two of them.
5. Function RGB2CMYK. This function converts an RGB value to a CMYK value. When you get it working, moving the RGB sliders will cause the CMYK sliders to move as well. There are several different ways to convert, depending on how much black is used in the CMYK model. Our conversion uses as much black as possible. Let R, G, and B be the color components of the RGB in the range 0..1.0 (not 0..255!!). Then the conversion is as follows:
1. Compute C' = 1 – R, M' = 1 – G, and Y' = 1 – B.
2. If C', M', and Y' are all 1, use the CMYK value (0, 0, 0 , 1).
If not, compute and use:
K = minimum of C',
M', and Y',
C = (C' – K)
/ (1
– K), M = (M' – K) / (1 – K), Y = (Y' – K)
/ (1 – K).
The resulting CMYK values are in the range 0..1.0, and they must be converted to
the range 0..100.0. That’s it! That’s not too bad, is it? Providing test cases is a bit problematic
because double values are only approximations
to the real values, and slightly different ways of computing might produce
different results. To show you how to do this, we provide in A4Tester three test cases, testing only the rounding of the values to 5 characters (except in the two first, extreme cases),
since that is what appears in the color panes of the GUI.
6. Function CMYK2RGB. This function converts a CMYK value to an RGB value. When you get it working, moving the CMYK sliders will cause the RGB sliders to move as well. Let C, M, Y, and K be the color components of the CMYK value, all in the range 0..1.0 (not 0..100.0). Then the conversion is as follows:
R = (1 – C)(1 – K), G = (1 – M)(1 – K), and B = (1 – Y)(1 – K).
This produces RGB values in the range 0..1.0, and they must be converted to the range 0..255. Use rounding. We’ll say it again because in previous semesters students have not complied: ROUND; DO NOT TRUNCATE.
Put at least two test cases for this function in class A4Tester.
To figure out what test cases to use, you can use
the GUI that we provided (execute a4.jar) in order to find out what the values in one color model should be in a different color model..
7. Function RGB2HSV. This function converts an RGB value
to an HSV value. Warning: class Color has a function RGBtoHSB, but it produces output in a different format than what we want (and uses a construct you haven’t learned about yet). So, in this case, do not use this pre-existing code. In our experience, it is easier (and more educational) for students to write this function from scratch than to figure out how to correctly employ Color.RGBtoHSB.
When you get it working, moving the RGB sliders will cause the HSV sliders to move. Here’s how the conversion works.
Let
MAX be the maximum and MIN be the minimum of the
(R, G, B)
values. H will satisfy 0 ≤ H < 360 and S, V,
R, G, and B will be in 0..1.
H is given by 5 different cases:
(a) MAX = MIN: H = 0.
(b) MAX = R and G ≥ B: H = 60.0 * (G - B) / (MAX - MIN) .
(c) MAX = R and G < B: H = 60.0 * (G - B) / (MAX - MIN) + 360.0
(d) MAX = G: H = 60.0 * (B - R) / (MAX - MIN) + 120.0
(e) MAX = B: H = 60.0 * (R - G) / (MAX - MIN) + 240.0
S is given by: if MAX = 0 then 0, else 1 – MIN/MAX.
V = MAX.
You have to provide at least 5 test cases in class A4Tester, so that each
expression in the cases for H is evaluated in at least one test case.
8. Function HSV2RGB. This function converts an HSV value to an RGB value. When you get it working, everything in the GUI should work.
Let Hi = floor(H/60), f = H/60 – Hi, p
= V(1-S), q
= V(1-fS), t =
V(1-(1-f)S).
Then R, G, and B depend on the value Hi as follows:
If
Hi = 0, thenR = V, G = t, B = p
IfHi = 1, thenR = q, G = V, B = p
IfHi = 2, thenR = p, G = V, B = t
IfHi = 3, thenR = p, G = q, B = V
IfHi = 4, thenR = t, G = p, B = V
IfHi = 5, thenR = V, G = p, B = q
This produces RGB values in the range 0..1.0, and they must be converted to the range 0..255. Use rounding. We’ll say it again because in previous semesters several students have not complied: ROUND; DO NOT TRUNCATE.
Provide at least 6 test cases for this function because of the 6 possible values of Hi.
Note: Wikipedia uses
Hi = floor(H/60) % 6 and f = H/60 - floor(H/60).
Because H satisfies 0 <= H < 360 (degrees), the two formulas given below have the same value, so we use the simpler one.
floor(H/60) % 6 and floor(H/60)
Submission of the assignment
Place a comment at the top of class A4Methods that indicates
how much time you spent on this assignment. Make sure that class A4Methods is indented properly. Make sure that class
A4Tester
has the appropriate test cases. Submit files A4Methods.java
and A4Tester.java on the CMS by the due date.
We hope you enjoyed this assignment and found it instructive.
