The Perceptron

Cornell CS 4/5780

Spring 2023

previous
next



Video II

Assumptions

  1. Binary classification (i.e. \(y_i \in \{-1, +1\}\))
  2. Data is linearly separable

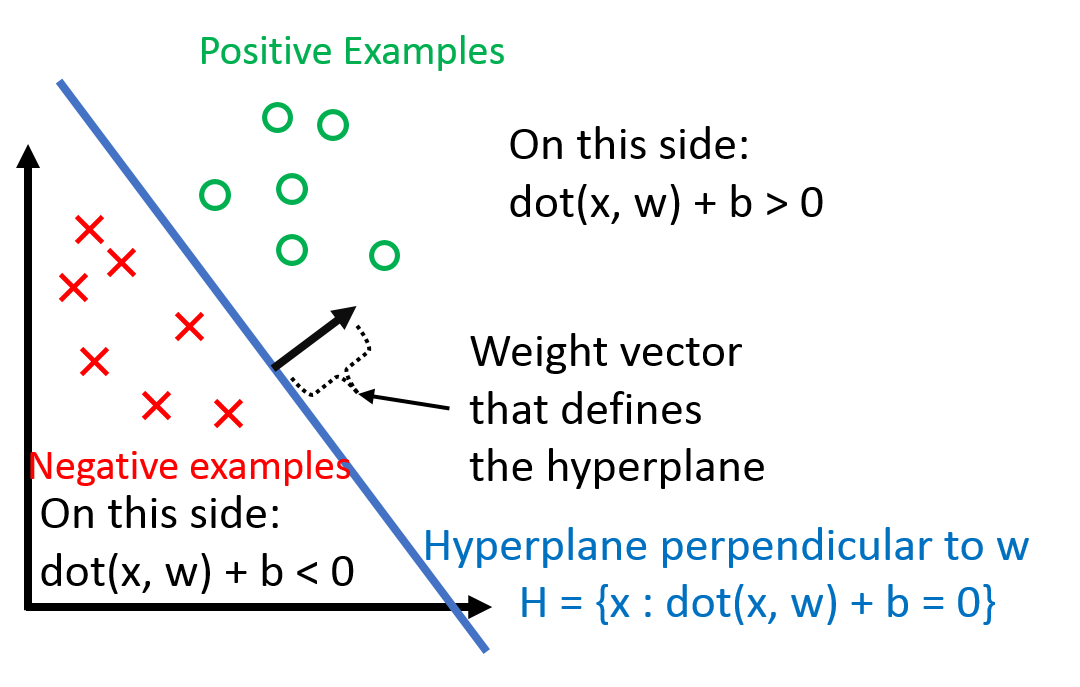

Classifier

$$ h(\mathbf{x}_i) = \textrm{sign}(\mathbf{w}^\top \mathbf{x}_i + b) $$
\(b\) is the bias term (without the bias term, the hyperplane that \(\mathbf{w}\) defines would always have to go through the origin). Dealing with \(b\) can be a pain, so we 'absorb' it into the feature vector \(\mathbf{w}\) by adding one additional constant dimension. Under this convention, $$ \mathbf{x}_i \hspace{0.1in} \text{becomes} \hspace{0.1in} \begin{bmatrix} \mathbf{x}_i \\ 1 \end{bmatrix} \\ \mathbf{w} \hspace{0.1in} \text{becomes} \hspace{0.1in} \begin{bmatrix} \mathbf{w} \\ b \end{bmatrix} \\ $$ We can verify that $$ \begin{bmatrix} \mathbf{x}_i \\ 1 \end{bmatrix}^\top \begin{bmatrix} \mathbf{w} \\ b \end{bmatrix} = \mathbf{w}^\top \mathbf{x}_i + b $$ Using this, we can simplify the above formulation of \(h(\mathbf{x}_i)\) to $$ h(\mathbf{x}_i) = \textrm{sign}(\mathbf{w}^\top \mathbf{x}) $$

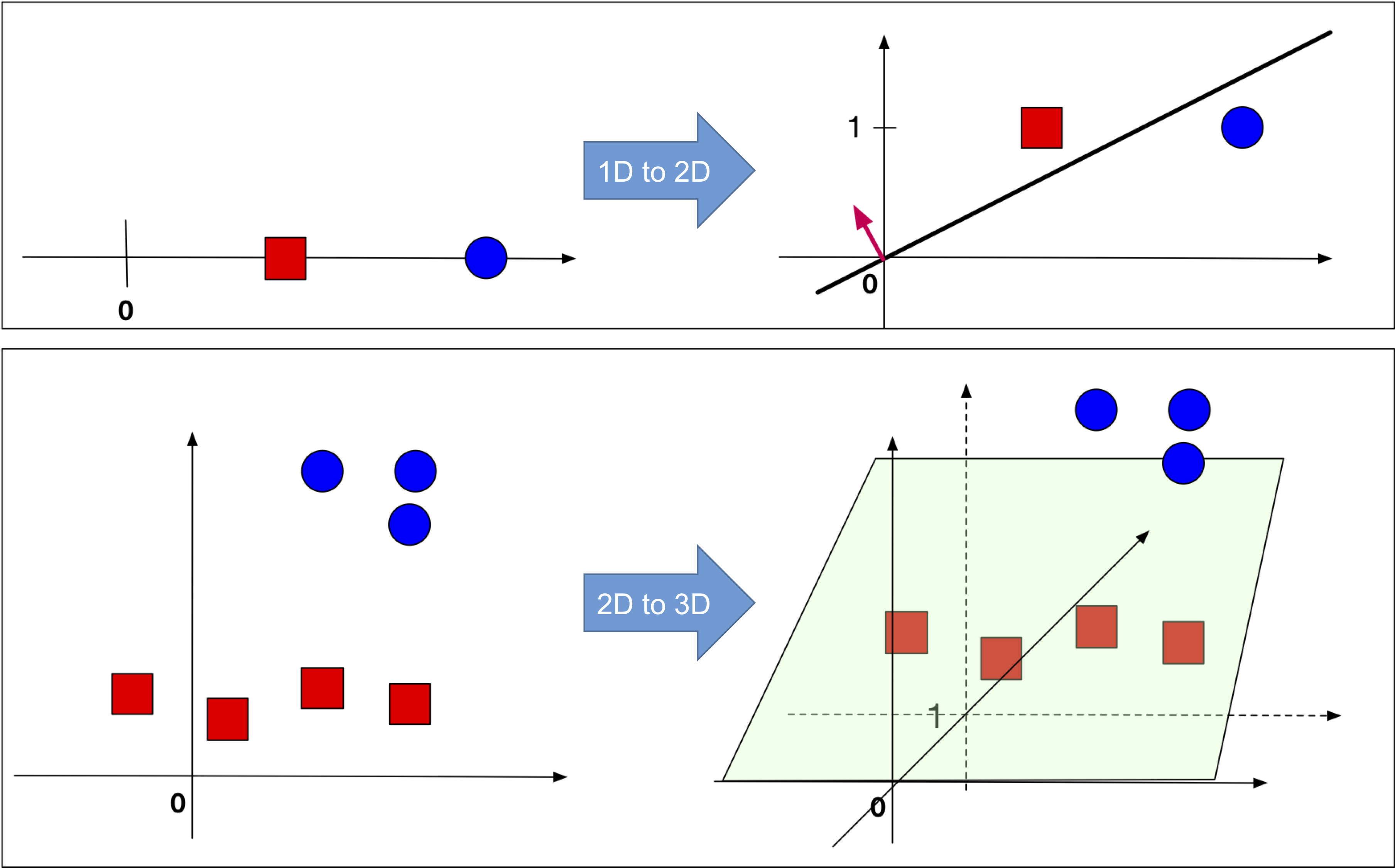

(Left:) The original data is 1-dimensional (top row) or 2-dimensional (bottom row). There is no hyper-plane that passes through the origin and separates the red and blue points. (Right:) After a constant dimension was added to all data points such a hyperplane exists.
Observation: Note that $$ y_i(\mathbf{w}^\top \mathbf{x}_i) > 0 \Longleftrightarrow \mathbf{x}_i \hspace{0.1in} \text{is classified correctly} $$ where 'classified correctly' means that \(x_i\) is on the correct side of the hyperplane defined by \(\mathbf{w}\). Also, note that the left side depends on \(y_i \in \{-1, +1\}\) (it wouldn't work if, for example \(y_i \in \{0, +1\}\)).

Perceptron Algorithm

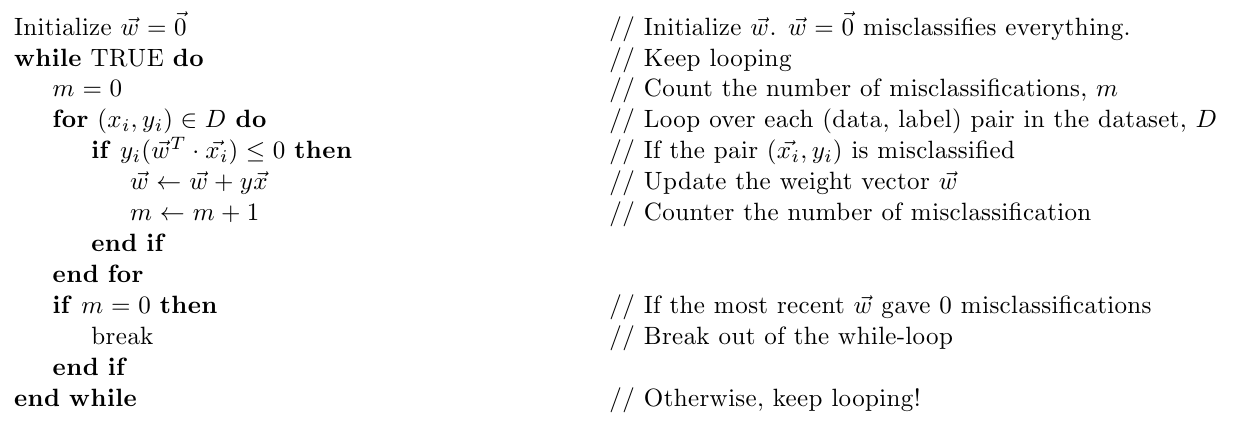

Now that we know what the \(\mathbf{w}\) is supposed to do (defining a hyperplane the separates the data), let's look at how we can get such \(\mathbf{w}\). Perceptron Algorithm

Geometric Intuition

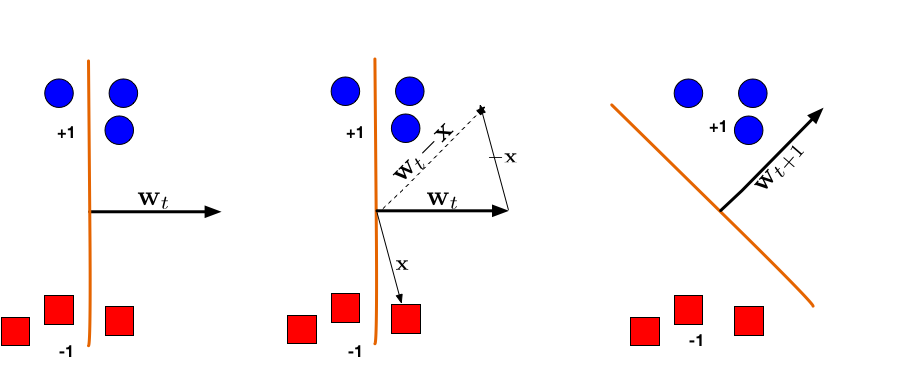

Illustration of a Perceptron update. (Left:) The hyperplane defined by \(\mathbf{w}_t\) misclassifies one red (-1) and one blue (+1) point. (Middle:) The red point \(\mathbf{x}\) is chosen and used for an update. Because its label is -1 we need to subtract \(\mathbf{x}\) from \(\mathbf{w}_t\). (Right:) The udpated hyperplane \(\mathbf{w}_{t+1}=\mathbf{w}_t-\mathbf{x}\) separates the two classes and the Perceptron algorithm has converged.

Quiz: Assume a data set consists only of a single data point \(\{(\mathbf{x},+1)\}\). How often can a Perceptron misclassify this point \(\mathbf{x}\) repeatedly? What if the initial weight vector \(\mathbf{w}\) was initialized randomly and not as the all-zero vector?

Perceptron Convergence

The Perceptron was arguably the first algorithm with a strong formal guarantee. If a data set is linearly separable, the Perceptron will find a separating hyperplane in a finite number of updates. (If the data is not linearly separable, it will loop forever.)

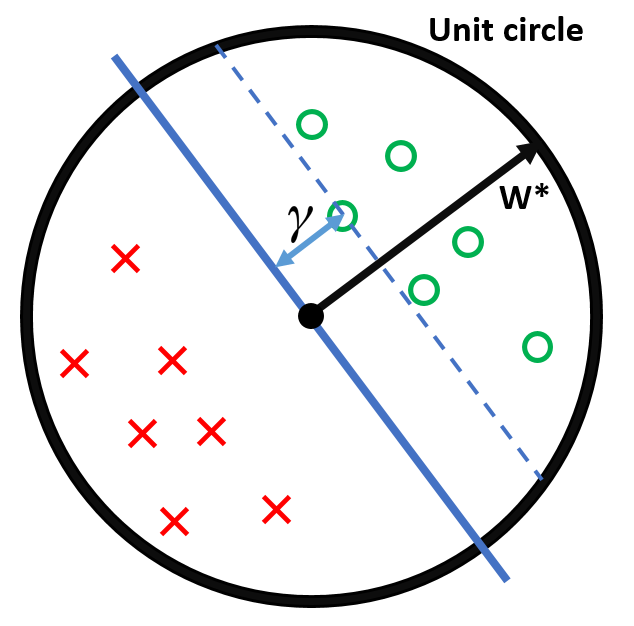

The argument goes as follows: Suppose \(\exists \mathbf{w}^*\) such that \(y_i(\mathbf{x}^\top \mathbf{w}^* ) > 0 \) \(\forall (\mathbf{x}_i, y_i) \in D\). Now, suppose that we rescale each data point and the \(\mathbf{w}^*\) such that $$ ||\mathbf{w}^*|| = 1 \hspace{0.3in} \text{and} \hspace{0.3in} ||\mathbf{x}_i|| \le 1 \hspace{0.1in} \forall \mathbf{x}_i \in D $$ Let us define the Margin \(\gamma\) of the hyperplane \(\mathbf{w}^*\) as \( \gamma = \min_{(\mathbf{x}_i, y_i) \in D}|\mathbf{x}_i^\top \mathbf{w}^* | \).

A little observation (which will come in very handy): For all \(\mathbf{x}\) we must have \(y(\mathbf{x}^\top \mathbf{w}^*)=|\mathbf{x}^\top \mathbf{w}^*|\geq \gamma\). Why? Because \(\mathbf{w}^*\) is a perfect classifier, so all training data points \((\mathbf{x},y)\) lie on the "correct" side of the hyper-plane and therefore \(y=sign(\mathbf{x}^\top \mathbf{w}^*)\). The second inequality follows directly from the definition of the margin \(\gamma\).

To summarize our setup:

Theorem: If all of the above holds, then the Perceptron algorithm makes at most \(1 / \gamma^2\) mistakes. Proof:
Keeping what we defined above, consider the effect of an update (\(\mathbf{w}\) becomes \(\mathbf{w}+y\mathbf{x}\)) on the two terms \(\mathbf{w}^\top \mathbf{w}^*\) and \(\mathbf{w}^\top \mathbf{w}\). We will use two facts:
