This project is an effort to try to integrate the functionality of the Internet and the telephone network in order to provide new services and applications that can allow more convenient ways of communication. Our main development tool is Sun's Java Telephony API implemented by Lucent Technologies, which provides API's for controlling various aspects of telephony applications from simple call control to call center support. Java Telephony API allows easy integration and rapid development of telephony applications that can take advantage of the Internet.

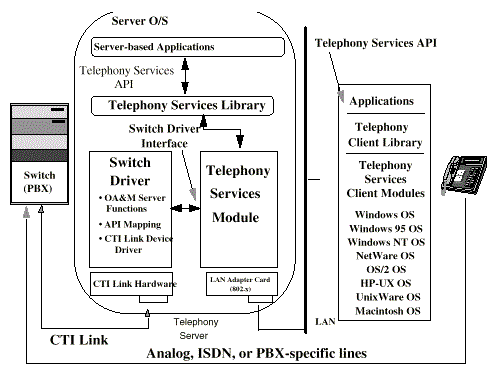

Computer and telephony integration is provided by the Passageway Telephony Services software which provides the necessary drivers to allow a desktop computer to control a PBX switch and control calls and telephones connected to the switch through an IP network. As the diagram below shows, the computer with the telephony services installed, functions as the telephony server and is able to serve client and server applications that make use of the telephony services through the telephony services module.
Applications can be built on top of the server or on the client and either way they make use of the telephony services library when they make Telephony Services API (TSAPI) calls. TSAPI is the API used to make telephony requests. TSAPI calls are mapped to CSTA (Computer Supported Telecommunications Applications) requests and Definity G3 PBX switch driver (G3PD) takes these requests and maps them to Definity specific CallVisor Adjunct/Switch Application Interface (ASAI). G3PD directly communicates with the PBX switch to send control signals and receive responses.
Telephony Services Architecture
Software Architecture in Detail
Passageway Telephony Services
ASAI Protocol
CallVisor Adjunct/Switch Applications Interface (ASAI) is the underlying interface that is used by JTAPI and other telephony applications to communicate and manage calls on the switch. ASAI allows an adjunct to manage calls, both incoming and outgoing, by providing the capability to monitor, initiate, control , and terminate calls on the switch.
The following functionality between associated adjuncts and the switch is supported.
The adjunct can make requests to the switch for call originations and dropping calls to local endpoints. With each call, call progress information and event reporting are transmitted across the interface.
The adjunct can manipulate active calls in which the adjunct is not a party on the calls (that is, third party). It can place calls on hold, reconnect calls, transfer calls, conference calls, and drop selected parties from a call.
The adjunct has the ability to activate certain switch features (such as Call Forwarding, Send all Calls, Agent Login, and Agent Logout).
The adjunct can query the switch for information associated with a particular item. For example, the adjunct can request the number of agens logged into a split.
The adjunct can supply routing information for an "adjunct-route" step in a VDN.
In this section, I describe the system setup currently in Systems Lab where this whole project was done.
Systems
VADA.CS.CORNELL.EDU (128.84.223.24) is a Windows NT Server used as telephony server which has the Lucent Passageway Telephony Services software installed. In order to make use of telephony services, application programs need to access VADA.
MABELLEX.CS.CORNELL.EDU (128.84.154.25) is the Lucent Definity G3 PBX switch. This switch is accessible from anywhere in the world since it sits outside the firewall.
Managing Phone Stations
Currently in Systems Lab, six phones are installed. They are 45510 to 45515.
In order to connect phones to the switch, you need to logon to the PBX and use
add station xxxxx
command. According to the wiring you have done on the distribution frame you assign a port number to each station. (Regarding the port numbering refer to 5-375 of Definity Enterprise Communications Server Release 5 Implementation, Volume 2.)
In order to view which stations (phones, extensions, etc.) are currently taken you can use
list station
command. Use page up and page down keys in order to browse the list.
Vector Directory Numbers
Vector directory numbers (VDN) are used for call routing in call centers, but in our applications VDN's are used to collect DTMF digits. You can think of VDN's as virtual phone numbers. They are just like any phone number which you can dial, but they do not have any physical phone associated with them. In order to setup VDN's you must add a VDN and also a call vector associated with it. After logging into PBX, in the command line first create a call vector you want to associate a VDN with.
add vector x
is the command to add call vector with number x. Call vector is a list of instructions such as collect digits, wait, or forward call. Here's an example of a call vector :
COLLECT 4 DIGIT
ROUTE TO NUMBER 45530
So a VDN associated with a call vector will execute those instructions when a call is made to the VDN. After the call vector is setup you can proceed to setting up the VDN.
add vdn xxxxx
is used to add a VDN where you can assign the call vector that you created above to this VDN.
For more detailed information please refer to Definity Communications System Generic 3 Feature Description, Volume 1, page 3-431 (section on Call Vectoring).
Java is the main development environment that we use. Server applications, client applications, servlets, and applets can be programmed using Java and with the use of JTAPI we can integrate telephony functionality into these applications.
In order to better understand what JTAPI is all about, please refer to JAVASOFT's documentation on JTAPI. It describes the different packages available in JTAPI from the Core Call package, to callcenter and media package. It also describes the basic call model that JTAPI uses in order to control and monitor telephony.
Telephony Service Test Applet
This is the most basic application which allows one to make a call from one phone to another from the web.
This is the main application that has been developed during Spring 1998 and we hope to deploy this to the M.Eng. students for Fall 1998.
This is an alarm call service application where a user registers for an alarm call through an applet at a web site and the alarm call is processed accordingly.
Java Telephony API provides a whole new way of developing telephony applications on the web. Further application development is definitely worthy, but we do not have to prove the potential.
We will be deploying the Internet voice mail system for the Master's student here at Cornell next fall and this summer we will be working on extending the Real simulator in order to support telephony applications.
Other Possible Applications are described here so that you may ponder about the implementation, design and the potential of telephony application on the web.
1. When you get an error of the form
Platform exception
Cannot open stream
Use tracert to check if you have network connection to the telephony server, vada.cs.cornell.edu, and the PBX, mabellex.cs.cornell.edu.
2. After adding a station, in order to access it from the application you must add it to the security database using Telephony Services Admin application.
3. After getting the provider in JTAPI, one must wait for the provider to reach the IN_SERVICE state before querying the provider.
while (myProvider.getState() != Provider.IN_SERVICE)
{
try
{
Thread.sleep(3000);
}
catch(InterruptedException e) {}
}
