Numerous protocols have been designed to implement memory coherency on clusters. The majority of these approaches
support multiple readers and multiple writers accessing shared memory. By weakening this constraint, we have
designed and implemented a high performance, relatively transparent toolkit for multiple reader, single writer
shared objects. Our toolkit is called Active Containers.
Active Containers is a C++ library that can be seamlessly incorporated into a variety of applications. The toolkit
relies on a low-latency communication layer that we built according to the Active Message 2 (AM2) API. Function shipping
and lazy update evaluation are done to maximize performance. The Active Containers toolkit is useful for implementing
replication schemes such as process pairs, applications that require shared state such as a cluster wide task manager, and
applications that update data in a push model such as the grid coloring demo discussed below.
The toolkit includes reader and writer active containers. To share an object the writer creates a
writer active container and then routes all method calls through the container as opposed to the original structure.
To receive updates a reader creates a reader active container and then calls the container’s
GetCont function to access the object.
The reader and writer internals are fairly straight-forward. When a writer is created, it informs the name service of its
existence, makes the necessary active message constructs, and maintains both a pointer to the shared object and a list of
readers. Upon receiving a function call, the writer container forwards the call to the shared object and sends the function id with
marshaled arguments to each of the readers. When an update is received, the reader container places the message in a

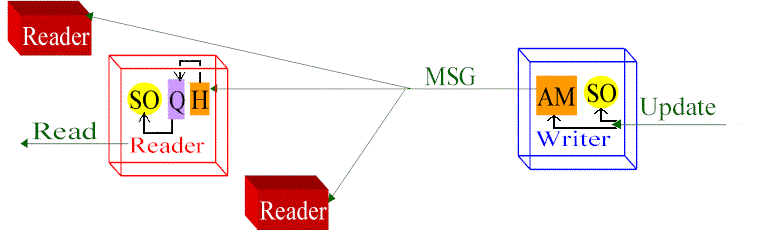

queue for lazy evaluation when the GetCont function is called. Figure 1 below illustrates the roles of the two containers.
SO refers to copies of the object. The queue is a FIFO queue of updates. H is the active message handler.
Details of how to use the toolkit, as well as the necessary code, is given in the
Using the Toolkit webpage. A description of the source code is given
in the Source Code for the Active Containers Toolkit webpage.
The toolkit uses a low-latency communication layer that adheres to the Active Message 2 (AM2) API.
A good overview of Active Messages can be found in "A Mechanism for Integrated Communication and
Computation" by Thorsten von Eicken, David E. Culler, Seth Copen Goldstein, and Klaus Erik Schauser.
AM2 generalizes previous AM interfaces to support multiple, independent processes using the same
network resources. AM2 also supports multi-threaded applications and advanced error-handling, while
following a more standard asynchronous communication event-handling model. The AM2 interface provides
a set of over 45 functions for manipulating the Active Messages layer. The majority of these deal
with endpoint and bundle management and the sending of active message re-quests and replies.
AMVI is our implementation of the AM2 interface which uses the Virtual Interface architecture (VI).
The code for AMVI, along with a test program, is on the Using AMVI webpage.
A description of the source files may be found on the AMVI Source Code
webpage.
