The IBM SP is an MPP consisting of Power2 RS/6000 nodes interconnected by a custom network fabric as well as by Ethernet. Each node has its own memory, CPU, operating system (AIX), MicroChannel I/O bus, Ethernet adapter, and high performance switch adapter [8]. The SP processing nodes operate at a clock speed of 66MHz and offer a peak performance of 266 Mflops. A model 390 ``thin node'' contains a 64 KB data cache with 64-byte lines, a 64-bit memory bus, and 64 to 512 Mbytes of main memory. The SPEC ratings are 114.3 SPECint92 and 205.3 SPECfp92. A model 590 ``wide node'' differs from thin nodes in that it has a 256 Kbyte data cache with 256-byte lines, a larger main memory of up to 2 Gbytes, and a SPEC rating of 121.6 SPECint92 and 259.7 SPECfp92.
The processing nodes are organized in racks of up to 16 thin nodes or 8 wide nodes each and are connected by a high-performance scalable switch. The switch provides four different routes between each pair of nodes, a hardware latency of about 500ns, and a bandwidth close to 40 MBytes/s.

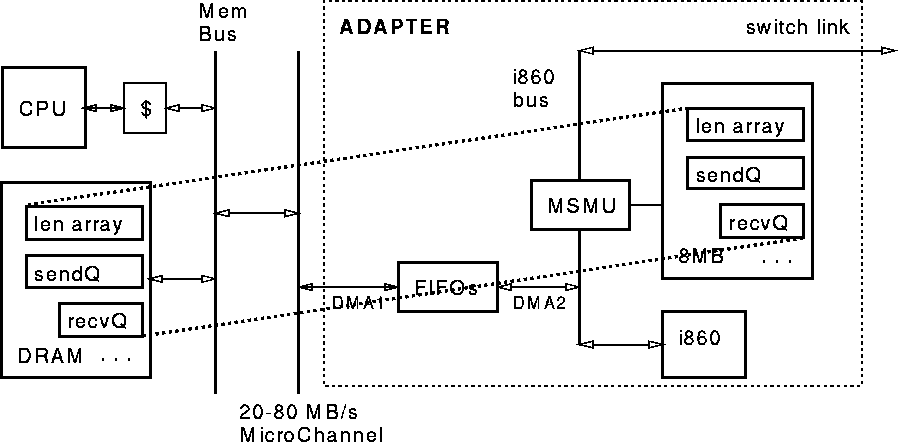

SP nodes are connected to the high-speed interconnection switch via communication adapters (referred-to as ``TB2'') [11] which contain an Intel i860 microprocessor with 8 MBytes of DRAM. Shown in Figure 1, the adapter plugs into the 32-bit MicroChannel I/O bus with a 80 MB/s peak transfer rate and contains a custom Memory and Switch Management Unit (MSMU) to interface into the network. Data transfers between the MSMU and the MicroChannel are performed using two DMA engines and an intermediate 4KB FIFO. Direct programmed I/O from the host to the adapter RAM is also possible.
Figure 1: Schematic of the SP network interface
