Project 1: $k$-Nearest Neighbors

So many points,
some near some far,
- who are my true neighbors?

Introduction

In this project, you will build a $k$-nearest neighbor classifier.

In the same directory as the last project, simple call

svn update

How to submit: You can commit your code with subversion, with the command line

svn commit -m "some meaningful comment"

Evaluation: Your code will be autograded for technical correctness. Please do not change the names of any provided functions or classes within the code, or you will wreak havoc on the autograder. However, the correctness of your implementation -- not the autograder's output -- will be the final judge of your score. If necessary, we will review and grade assignments individually to ensure that you receive due credit for your work.

Academic Dishonesty: We will be checking your code against other submissions in the class for logical redundancy. If you copy someone else's code and submit it with minor changes, we will know. These cheat detectors are quite hard to fool, so please don't try. We trust you all to submit your own work only; please don't let us down. If you do, we will pursue the strongest consequences available to us.

Getting Help: You are not alone! If you find yourself stuck on something, contact the course staff for help. Office hours, section, and the Piazza are there for your support; please use them. If you can't make our office hours, let us know and we will schedule more. We want these projects to be rewarding and instructional, not frustrating and demoralizing. But, we don't know when or how to help unless you ask.

k-Nearest Neighbors implementation in Octave

Our first goal towards a $k$NN classifier is to build a classifier for handwritten digits classification and face recognition.

Data

We first obtain some data for testing your code. The data resides in the files faces.mat and digits.mat which hold the datasets for the further experiments. First, load the faces dataset:

>> load faces

Now, let us check which variables were loaded by the previous statement:

>> whos

Visualizing data

You can visualize one of the faces by running

>> load faces
>> figure(1);
>> clf;
>> imagesc(reshape(xTr(:,1),38,31));
>> colormap gray;

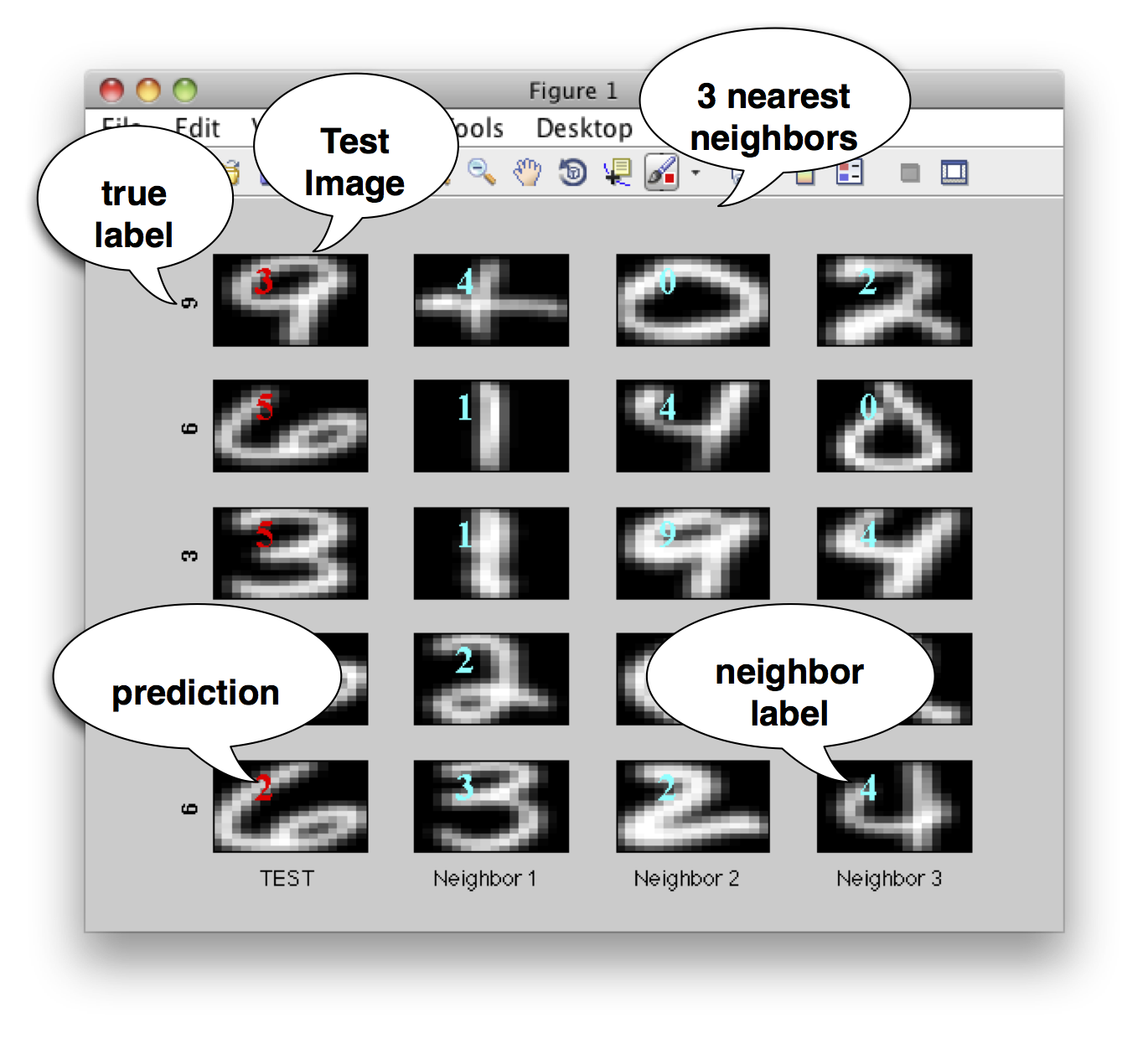

There is also a little k-nearest neighbor classifier visualization tool, called visualhw1.m. Run the following commands to test it. Since you have not implemented the k-NN classifier as yet, the tool should show random predictions as in the figure at the top of the page:

>> visualhw1 faces
>> visualhw1 digits

Note: The tool tries to show you all the images in the dataset as you keep pressing enter on the octave interpretor. You can exit it by simply pressing Ctrl+C. Use the tool again once you are done with the following questions of the project to see what your code predicts for various test cases. (Due to some differences in supporting libraries it can be that images appear upside down. In that case you need to uncomment the line %flip=@(M) flipud(M); at the beginning of visualhw1.m.)

Implementation

The following questions will ask you to finish these functions in a pre-defined order.
As a general rule, you should avoid tight loops at all cost.

(a) Implement the functions innerproduct.m and l2distance.m. You may use your own code(s) from the previous project.

(b) Implement the function findknn.m, which should find the $k$ nearest neighbors of a set of vectors within a given training data set. The call of

 [I,D]=findknn(xTr,xTe,k);

(c) The function analyze.m should compute various metrics to evaluate a classifier. The call of

  result=analyze(kind,truth,preds);

>> analyze('acc',[1 2 1 2],[1 2 1 1])

(d) Take a look at hw1tictoc.m. This script runs the (not yet implemented) $k$-nearest neighbor classifier over the faces and digits data set. In its current implementation the results are picked at random. The faces data set has $40$ classes, the digits data set $10$. What classification accuracy would you expect from a random classifier?

(e) Implement the function knnclassifier.m, which should perform $k$ nearest neighbor classification on a given test data set. The call

preds=knnclassifier(xTr,yTr,xTe,k)

You can compute the actual classification error on the test set by calling

>> analyze('acc',yTe,knnclassifier(xTr,yTr,xTe,3))

Test your function on both data sets with hw1tictoc.m. You can now also run visualhw1 faces or visualhw1 digits. Hopefully you will get better results than in the figure at the top of the page.

(f) Sometimes a $k$-NN classifier can result in a draw, when the majority vote is not clearly defined. Can you improve your accuracy by falling back onto $k$-NN with lower $k$ in such a case? (You should edit the file knnclassifier.m).

(g) (optional) You can use the command randperm and modify visualhw1 to shuffle the dimensions of the images in random order. This should not affect your classification error.

(h) Edit the function competition.m, which reads in a training and testing set and makes predictions. Inside this function you are free to use any combination or variation of the k-nearest neighbor classifier. Can you beat my submission on our secret training and testing set?

Evaluation

For this project, you will be ranked on the following measures:

• Percentage of test cases passed
• Average of:
  • Accuracy on the faces test dataset and
  • Accuracy on the digits test dataset
  • Accuracy on the secret test dataset

Hints:
