Wavelet Turbulence Source Code


Back to the paper

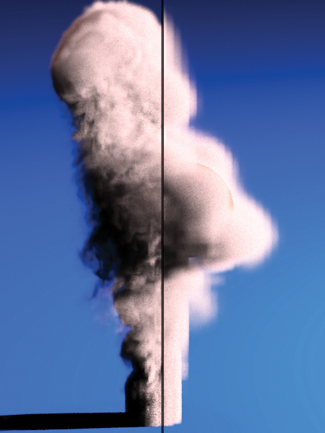

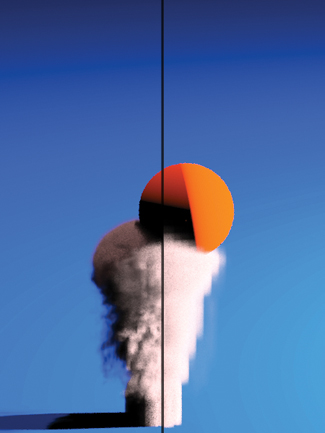

Source code simulation at timestep 50 (left) and timestep 100 (right).
The right half of each image shows the coarse 48 x 96 x 48 simulation.
The left half shows the same simulation amplified using our algorithm to 240 x 480 x 240.

Download the code: wavelet.turbulence.tar.gz
This code is released under the GNU Public License
Copyright 2008 Theodore Kim and Nils Thuerey


Overview

This code is a reference implementation of our paper Wavelet Turbulence for Fluid Simulation. The code is intended as a pedagogical example, so clarity has been given preference over performance. Optimizations that inhibit readability have been removed, so the running times experienced will be longer than those reported in the paper.

Installation

We have successfully built this code on Windows (Cygwin), Linux, and Mac OSX. Their respective Makefiles are named Makefile.cygwin, Makefile.linux, and Makefile.mac. Choose the one appropriate for your platform. We have made an effort to remove dependencies on external libraries, so aside from some commonly available libraries (zlib, libpng), you should not need to download and install anything special in order to successfully compile.

Rendering

Preview PNG images are automatically saved of the underlying simulation (./original.preview) and the turbulence-amplified simulation (./amplified.preview). You must have PBRT installed in order to render the final images. A Perl script (render.pl) and example scene (scene.pbrt) are provided in the ./render directory. Output to POV-Ray DF3 density files are also supported by the code, but we have not provided an example scene due to time constraints.

Example

As an example, the following should build, run, and render a simulation under Cygwin.

    gunzip wavelet.turbulence.tar.gz
    tar -xvf wavelet.turbulence.tar
    cd wavelet_turbulence
    make -fMakefile.cygwin
    ./FLUID_3D
    cd render
    perl render.pl 0 200

The final EXR files will be in the ./render directory.

Additional Comments:

  • Instead of Wavelet Noise, it is also possible to use Ansiotropic Noise. We have provided the code to generate such a tile. To generate the tile, build noiseFFT using Makefile.FFT and execute noiseFFT. You will need FFTW in order to build successfully. Then at the end of the WTURBULENCE constructor, comment out the noise.wavelets line and uncomment the noise.fft line in order to use this alternate approach.

  • Two timestepping functions are provided in WTURBULENCE. stepTurbulenceReadable is a more readable version which does not perform the texture distortion correction. stepTurbulenceFull performs the full algorithm and also tries to parallelize the computation using OpenMP in Linux and OSX (Cygwin does not currently support OpenMP).

  • The removed optimizations are primarily unrollings of the loops in WAVELET_NOISE.h. For better performance, explicitly unroll these loops.

  • If you get the error "Aborted (core dumped)", it means you do not have enough memory to run the code. You can try decreasing the size of the simulation by decreasing the value of amplify in main(). Conversely, if your system has tons of memory, you can run even larger simulations by increasing the value.
